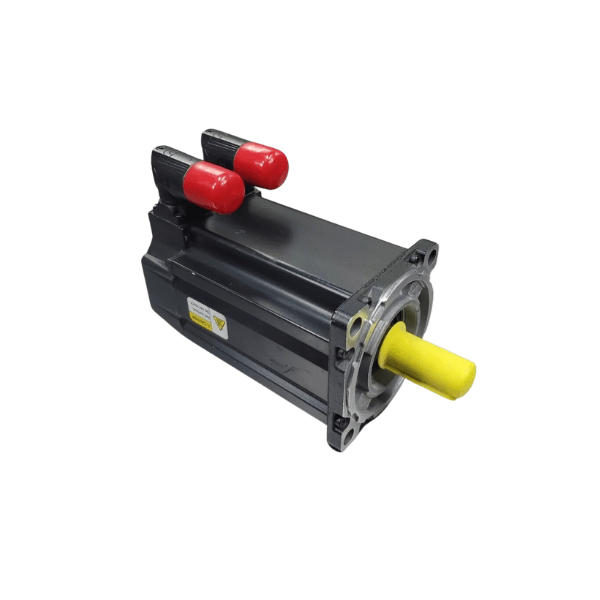

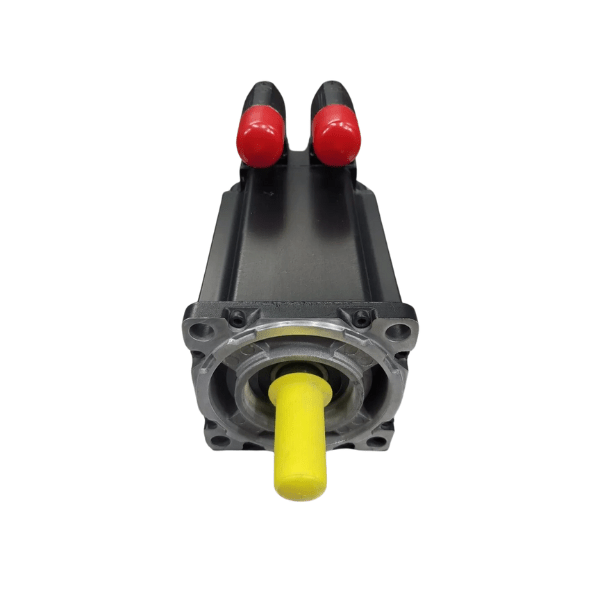

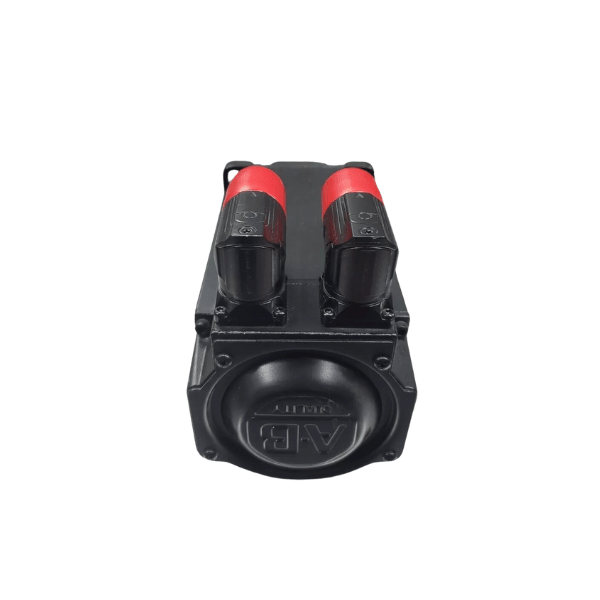

Allen-Bradley MPL-B430P-MJ72AA PN-12194 Low-Inertia Servo Motor
Condition: New
Warranty: 1 Year

Available
We deliver worldwide
sales@ddpartssolution.com
📞 +1 (689) 275-3558
Product Description:
The Allen-Bradley MPL-B430P-MJ72AA PN-12194 is a high-performance, low-inertia brushless servo motor from the MPL series. Designed for demanding motion control applications, this motor offers high torque density, fast acceleration/deceleration, and precise positioning. It operates on 460V AC and has a maximum speed of 5000 RPM. It features a multi-turn high-resolution absolute encoder for precise positioning and a keyed shaft extension. The motor has an IP50 rated housing, which can be upgraded to IP66 with an optional shaft seal. It utilizes SpeedTEC DIN connectors for quick and reliable connections and does not include a brake.
Key Features:
- MPL Series: Known for high torque density, compact size, and excellent dynamic performance.
- Low Inertia: Optimized for rapid acceleration and deceleration.
- 460V AC Operation: Compatible with standard 460V AC three-phase power systems.
- 5000 RPM Maximum Speed: Suitable for high-speed applications.
- Multi-turn High-resolution Absolute Encoder (Hiperface Protocol): Provides precise position feedback, even after power loss.
- Keyed Shaft Extension: Ensures secure coupling to driven equipment.
- IP50 Housing (IP66 with Optional Shaft Seal): Offers protection against dust and other contaminants (IP66 with optional seal provides protection against strong water jets).
- SpeedTEC DIN Connectors: Enables quick and reliable connections.
- No Brake: This motor does not include an integrated brake.
- Magnet Stack Length 30 (76.2 mm / 3.0 in.): Defines the motor's torque and speed characteristics.
Technical Specifications:
- Product Type: Brushless Servo Motor
- Catalog Number: MPL-B430P-MJ72AA PN-12194
- Series: MPL (Low Inertia)
- Voltage: 460V AC, 3-Phase
- Frame Size: 4 (115 mm / 4.53 in.)
- Magnet Stack Length: 30 (76.2 mm / 3.0 in.)
- Speed: 5000 RPM (Maximum)
- Feedback: Multi-turn High-resolution Absolute Encoder (Hiperface Protocol)
- Connectors: SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
- Brake: No Brake
- Enclosure Rating: IP50 (IP66 with Optional Shaft Seal)
- Continuous Stall Torque: 6.55 Nm (58 lb-in)
- Continuous Stall Current: 9.2 A (0-peak)
- Rated Power Output: 2.2 kW
Applications:
- Packaging machinery
- Robotics
- Machine tools
- Printing and converting
- High-speed assembly
- Any application requiring precise and dynamic motion control
