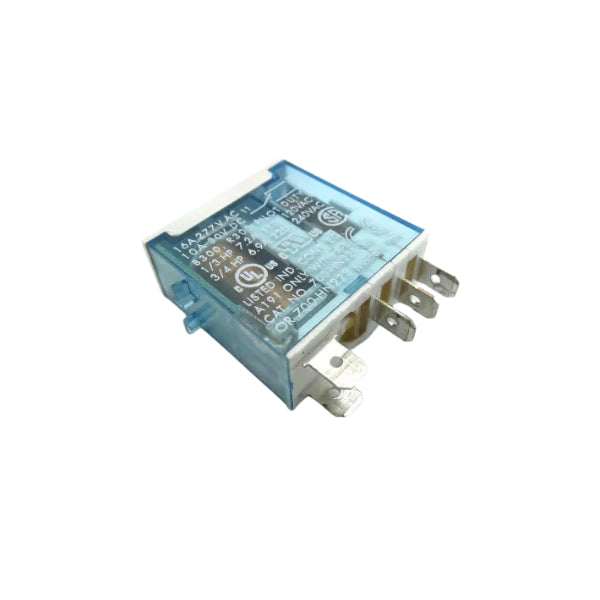

Allen-Bradley 700-HK36Z24-4 General Purpose Slim Line Relay

Product Overview:

The Allen-Bradley 700-HK36Z24-4 General Purpose Slim Line Relay offers reliable performance for controlling electrical circuits in industrial environments. This versatile relay features a 16A standard contact and a Single Pole Double Throw (SPDT) configuration, providing flexibility for various control tasks. The 24V DC coil ensures low-voltage operation, while the built-in pilot light adds an indicator function for visual confirmation of relay status. Its slim design allows for efficient use of space in control panels, making it ideal for compact automation systems.

Technical Specifications:

• Model: 700-HK36Z24-4
• Contact Configuration: SPDT (Single Pole Double Throw)
• Rated Current: 16A
• Coil Voltage: 24V DC
• Pilot Light: Integrated pilot light for status indication
• Type: General purpose, slim line relay
• Mounting: Standard mounting for ease of integration
• Dimensions: Slim profile for space-saving in control systems
• Certifications: UL, CSA, CE, and other relevant certifications
• Enclosure: Open type (compact and accessible design)

Benefits:

• Space-Efficient Design: The slim line design makes it an ideal choice for control panels where space is limited.
• Versatile Use: Perfect for a wide range of general-purpose applications in industrial automation and control systems.
• Visual Status Indication: The integrated pilot light provides clear, real-time status feedback on the relay’s operation.
• Durable and Reliable: Built for long-lasting performance, offering reliable operation in various industrial settings.
• Safety and Compliance: Meets industry-standard certifications to ensure safety and compliance in your systems.

Applications:

• Industrial Automation: Ideal for controlling electrical circuits in automation systems and machinery.
• Control Panels: Suitable for use in control panels, offering reliable switching and status indication.
• Motor Control: Commonly used for controlling motors and other load-bearing equipment.
• HVAC Systems: Can be used in HVAC control circuits for efficient system operation.
• Process Control Systems: Provides reliable switching for various industrial process control applications.

Key Features:

• 16A Standard Contact: Handles a range of current levels, offering reliable switching in industrial control circuits.
• SPDT Configuration: Flexible contact configuration for different control and switching requirements.
• 24V DC Coil: Low voltage operation to enhance safety and energy efficiency.
• Pilot Light: Indicates the operational status of the relay, offering clear visibility for operators.
• Slim Line Design: Space-saving form factor that fits easily into control panels with limited space.

Why Choose Allen-Bradley 700-HK36Z24-4 Relay?

The Allen-Bradley 700-HK36Z24-4 General Purpose Slim Line Relay is designed for industrial environments where reliable performance, space efficiency, and clear status indication are essential. With its versatile SPDT configuration, 16A contact rating, and 24V DC coil, this relay offers the flexibility and durability needed for a wide range of applications. The integrated pilot light provides real-time feedback, improving safety and operational efficiency. Trusted by professionals worldwide, this relay ensures that your automation systems function smoothly and reliably. Choose Allen-Bradley for proven performance and reliability in industrial control.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
