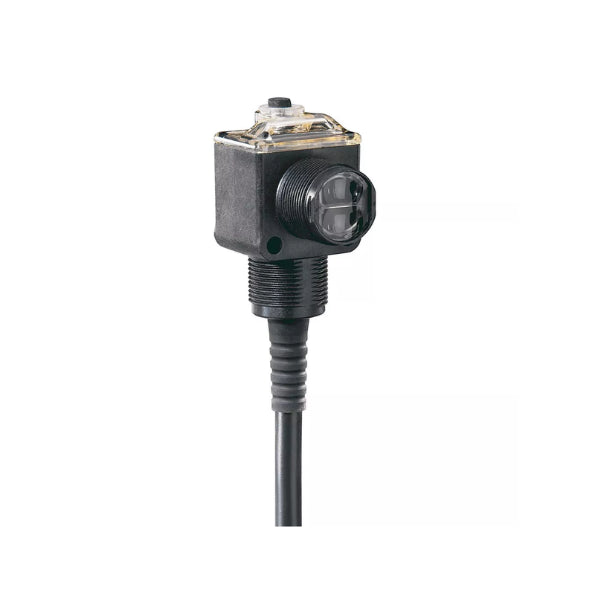

Allen-Bradley 42EF-S1MPA-F4 PHOTOSWITCH Photoelectric Sensor

Product Overview:

The Allen-Bradley 42EF-S1MPA-F4 PHOTOSWITCH Photoelectric Sensor is designed for high-performance sensing in industrial automation applications. Featuring RightSight technology, this sensor provides sharp cutoff diffuse sensing with an infrared LED, ensuring accurate detection up to a 100mm range. It offers quick response times, making it ideal for applications where precision and speed are critical. With complementary LO/DO outputs and PNP output, the 42EF-S1MPA-F4 is built to meet the demands of complex automation systems while maintaining reliability and efficiency.

Technical Specifications:

• Sensing Mode: Sharp Cutoff Diffuse
• Sensing Distance: Maximum 100mm (3.9in)
• LED Type: Infrared
• Voltage Rating: 10.8-30V DC
• Response Time: 1ms
• Outputs: 2 Complementary LO/DO Outputs (PNP)
• Connector Type: 4-pin DC Micro QD with 152mm (6in) pigtail
• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)
• Housing Material: Plastic
• Dimensions: Standard form factor for ease of integration into automation systems
• Certifications: CE, UL

Benefits:

• High Precision: The sharp cutoff diffuse sensing mode offers highly accurate detection, reducing false readings and increasing system reliability.
• Fast Response Time: At just 1ms, the sensor is capable of providing quick feedback for fast-paced operations, optimizing system performance.
• Flexible Connectivity: Equipped with a 4-pin DC micro QD connector, the sensor offers easy integration with various industrial automation setups.
• Enhanced Durability: Built to withstand harsh industrial environments with a broad operating temperature range and durable housing.
• Energy Efficient: The sensor’s efficient design ensures it operates effectively within the 10.8-30V DC voltage range, helping to reduce energy consumption.

Applications:

• Industrial Automation: Ideal for detecting objects in automated assembly lines, conveyors, and sorting systems.
• Packaging: Perfect for precise product detection in packaging systems where accuracy is paramount.
• Material Handling: Used in material handling applications, ensuring reliable detection of items in motion.
• Robotics: Supports robotic systems for object sensing, ensuring smooth operation in dynamic environments.
• Factory Automation: Essential in factory automation systems where quick and accurate sensing is crucial to the workflow.

Key Features:

• Sharp Cutoff Diffuse Sensing Mode: Ensures precise detection with a sharp cutoff for high accuracy.
• Infrared LED Technology: Provides reliable, energy-efficient infrared sensing for industrial environments.
• High-Speed Response: The sensor reacts in just 1 millisecond, ensuring fast and responsive automation.
• Compact and Durable Design: Small form factor and rugged construction for use in industrial applications.
• Two Complementary LO/DO Outputs (PNP): Facilitates easy integration into control systems with standard PNP outputs.
• Wide Voltage Range: Operates within 10.8-30V DC, offering flexibility for various systems.

Why Choose Allen-Bradley 42EF-S1MPA-F4 PHOTOSWITCH Photoelectric Sensor?

The Allen-Bradley 42EF-S1MPA-F4 PHOTOSWITCH Photoelectric Sensor is engineered for reliability, precision, and ease of use in industrial environments. Its innovative RightSight technology ensures fast and accurate sensing, while its compact design and flexible output options make it an excellent choice for complex automation systems. Whether you’re working in material handling, robotics, packaging, or factory automation, this sensor will provide you with the high-performance sensing needed to optimize your operations. With Allen-Bradley’s trusted brand backing it, the 42EF-S1MPA-F4 guarantees long-lasting durability and efficiency for your automation processes.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
