Overview

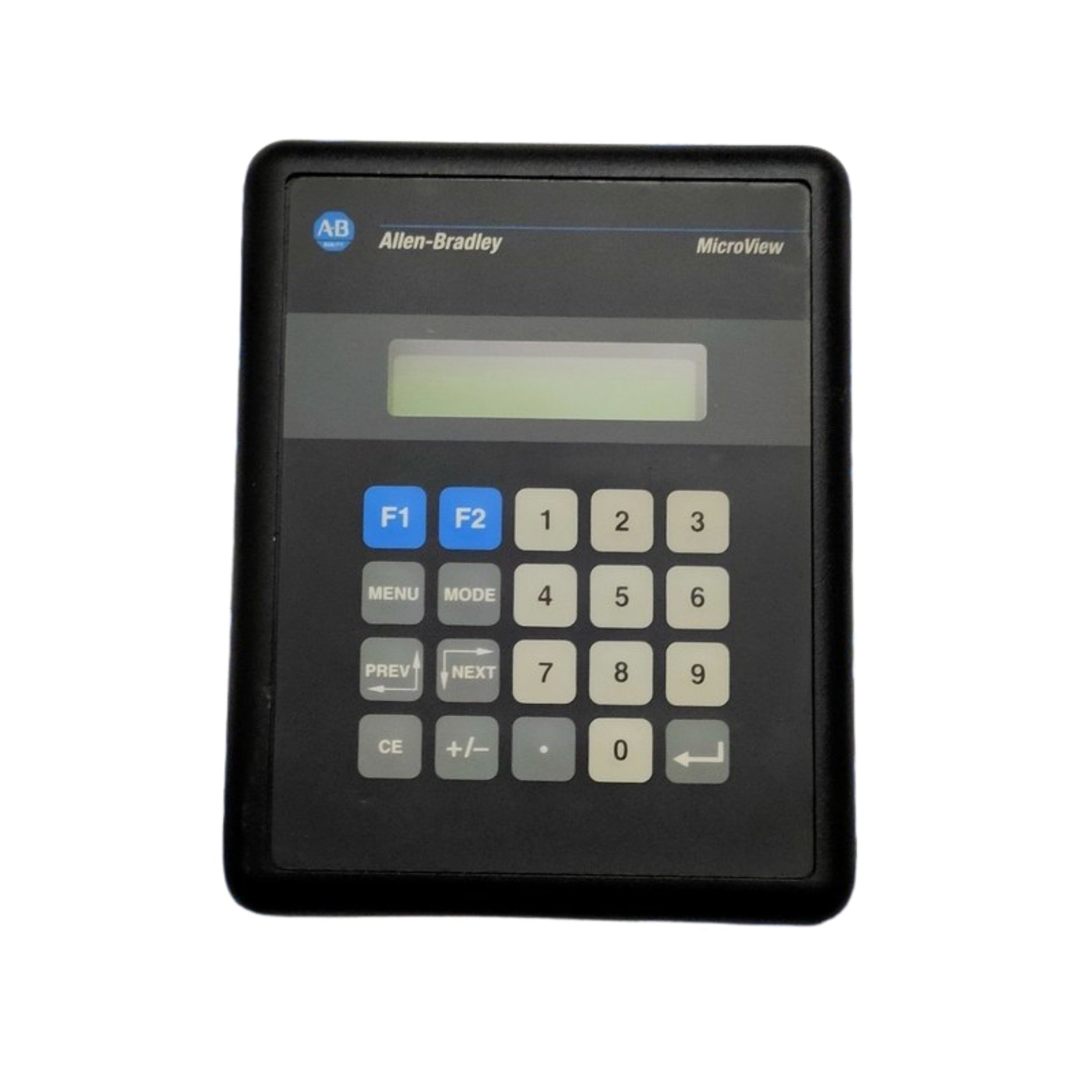

The Allen-Bradley 2707-MVP232 MicroView is a compact operator interface terminal, designed to communicate with MicroLogix programmable controllers using RS-232 DF1 communications. This monochrome LCD display provides clear and high-contrast visuals, making it easy to monitor and operate industrial processes.

With a communication distance of up to 50 ft. (15 meters) and the ability to connect to a personal computer for uploading or downloading application programs, the MicroView 2707-MVP232 is an ideal interface for simple machine control and monitoring applications.

Key Features

• RS-232 Communications Port – Supports point-to-point connection with MicroLogix controllers
• Monochrome LCD Display – High-contrast yellow-green screen for easy readability
• 2-Line x 16-Character Display – Provides clear data visualization
• Compact Panel Mount Design – Space-saving installation for control panels
• Power Supply: 11-25V DC (Powered from the MicroLogix controller)
• Supports RS-232 DF1 Communications – Enables direct communication with MicroLogix controllers
• PC Connectivity – Allows program upload/download via RS-232

Technical Specifications

• Model: 2707-MVP232
• Display Type: Monochrome LCD (Yellow-Green)
• Character Size: 0.22 x 0.12 in (5.56 x 2.96 mm)
• Lines/Characters: 2 Lines x 16 Characters
• Communication Distance: Up to 50 ft. (15 meters)
• Communication Protocol: RS-232 DF1
• Mounting Type: Panel Mount
• Power Requirement: 11-25V DC (Powered from Controller)

Applications

• Machine Control and Monitoring – Provides an easy-to-use interface for industrial automation
• MicroLogix Programmable Controller Operations – Simplifies interaction with MicroLogix PLCs
• Data Entry and Process Control – Allows basic input and feedback in automated systems
• Compact Panel Displays – Ideal for small industrial control panels requiring simple operator interfaces

Why Choose the Allen-Bradley 2707-MVP232?

• Designed for MicroLogix Controllers – Ensures seamless communication and control
• Compact and Easy-to-Use Interface – Simplifies monitoring and adjustments
• Reliable RS-232 Communication – Supports point-to-point connections for secure data transmission
• High-Contrast LCD Display – Enhances readability in various lighting conditions
