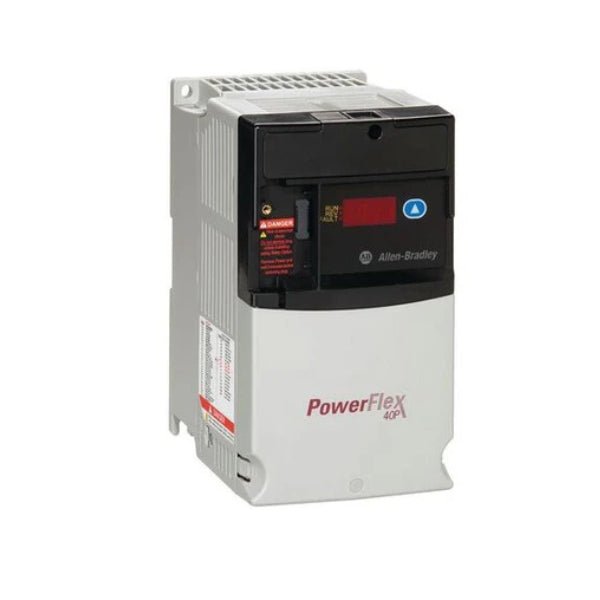

Allen-Bradley 22D-D6P0N104 PowerFlex 4-Series AC Drive - 1 HP, 208-240V AC, Sensorless Vector Control

$1,114.00

Condition: New

Warranty: 1 Year

In Stock

Available

We deliver worldwide

sales@ddpartssolution.com

📞 +1 (689) 275-3558

The Allen-Bradley 22D-D6P0N104 is a PowerFlex 4-Series AC Drive designed for controlling and optimizing the operation of industrial electric motors. This drive is particularly suitable for variable-speed applications in a wide range of industries, providing smooth, efficient, and reliable motor control. Below are the key specifications and features of the 22D-D6P0N104.


Technical Specifications:

  • Model: 22D-D6P0N104
  • Series: PowerFlex 4-Series
  • Type: AC Drive (Variable Frequency Drive)
  • Input Voltage:
    • 208V to 240V AC (±10%)
  • Output Power:
    • 0.75 kW (1 HP)
  • Input Current:
    • 3.4A (at 240V AC)
  • Output Current:
    • 4.5A (at 240V AC)
  • Control Method:
    • V/Hz
    • Sensorless Vector Control (SVC)
  • Motor Rating:
    • 0.75 kW (1 HP)
  • Overload Capacity:
    • 150% for 1 minute
  • Frequency Range:
    • 0 to 400 Hz
  • Dimensions:
    • Height: 5.9 inches (150 mm)
    • Width: 4.4 inches (112 mm)
    • Depth: 5.4 inches (137 mm)
  • Weight: 1.6 kg (3.5 lbs)
  • Environmental Rating:
    • IP20 (Indoor use only)
  • Operating Temperature:
    • 0°C to 40°C (32°F to 104°F)
  • Storage Temperature:
    • -40°C to 85°C (-40°F to 185°F)
  • Certifications: UL, CE, and RoHS compliant

Key Features:

  1. Compact and Efficient Design: The 22D-D6P0N104 is designed with a compact form factor, offering space-saving installation without compromising on performance.
  2. Variable Frequency Drive: Provides precise motor speed control, allowing the motor to operate at the optimal speed for various applications, reducing energy consumption and enhancing efficiency.
  3. Wide Voltage Range: Designed to operate with an input voltage of 208V to 240V AC, providing versatility and ease of integration in different electrical environments.
  4. Sensorless Vector Control (SVC): Supports sensorless vector control for enhanced motor performance, offering smooth acceleration and deceleration, improving overall process control.
  5. Overload Capacity: Capable of handling 150% overload for 1 minute, ensuring the motor can perform under transient conditions without risk of damage.
  6. Wide Frequency Range: Operating at frequencies from 0 to 400 Hz, making it suitable for a wide variety of applications that require speed control beyond the typical 60 Hz.
  7. Durability and Reliability: With an IP20 rating, the drive is suitable for indoor industrial environments and is built to withstand everyday operational demands.
  8. Simple to Install and Use: The PowerFlex 4-Series drives are user-friendly, making installation, configuration, and maintenance straightforward.
  9. Energy Savings: By adjusting motor speeds based on load requirements, the drive helps in reducing energy consumption, contributing to cost savings.

Applications:

  • Pumps and Fans: Ideal for controlling motor speeds in pumping and fan systems, where energy efficiency and smooth operation are essential.
  • Conveyor Systems: Used in conveyor systems to control motor speeds, ensuring efficient material handling in industrial processes.
  • HVAC Systems: Provides motor control for HVAC applications, enabling precise control of airflow and temperature.
  • Water Treatment Plants: Perfect for managing motor-driven processes in water treatment facilities, reducing energy consumption and improving system reliability.
  • Packaging and Material Handling: Controls the motor speed in packaging lines and material handling systems, ensuring precise and smooth operation
