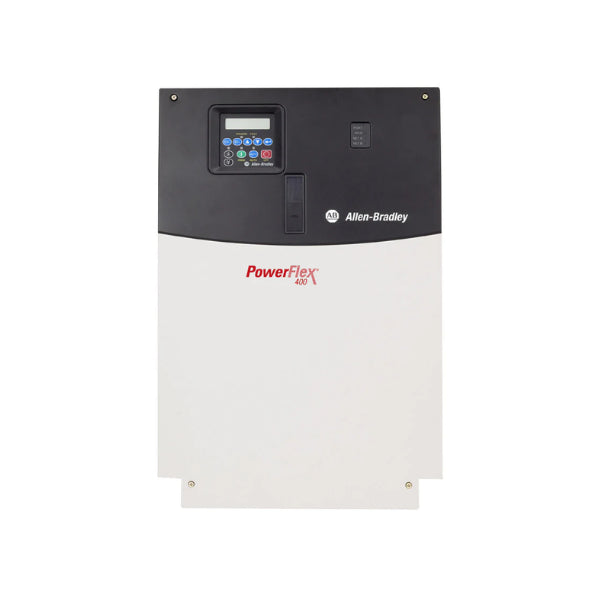

Allen-Bradley 22C-D142A103 PowerFlex 400 Fan & Pump Drive, 480V AC, 75 kW, 100 HP, RS485 Communication

Product Description:

The Allen-Bradley 22C-D142A103 PowerFlex 400 is a high-performance fan and pump drive designed for demanding industrial applications requiring precise motor control. With a 480V AC, 3-phase input, this drive delivers up to 142 Amps, providing robust power output for heavy-duty fan and pump systems. Capable of handling up to 75 kW (100 HP), this drive is ideal for high-efficiency operations across various industries, including water treatment, HVAC, and manufacturing. It features Frame Size E, ensuring compatibility with a wide range of system sizes and configurations. Designed with IP30 (NEMA 1 / UL Type 1) protection, it is built to withstand industrial environments. The fixed keypad and RS485 communication interface make it easy to operate and integrate into existing automation systems. This drive does not include a brake IGBT, providing a cost-effective solution for fan and pump applications.

Key Features:

• 480V AC, 3-Phase Input: Ideal for high-power motor applications, providing stable and efficient operation.
• 142 Amps: Delivers powerful performance for demanding fan and pump operations.
• 75 kW (100 HP): Designed for heavy-duty systems requiring high power output.
• Frame Size E: Compatible with various system sizes, offering flexibility in integration.
• IP30 (NEMA 1 / UL Type 1): Robust protection against dust and debris, ideal for industrial environments.
• Fixed Keypad: Easy-to-use interface for setup and operation.
• RS485 Communication: Facilitates simple integration with existing control networks and systems.
• No Brake IGBT: A cost-effective solution for applications that do not require a brake.

Technical Specifications:

• Model: 22C-D142A103
• Input Voltage: 480V AC, 3-Phase
• Current Rating: 142 Amps
• Power Rating: 75 kW, 100 HP
• Frame Size: E
• Protection: IP30 (NEMA 1 / UL Type 1)
• Keypad Type: Fixed Keypad
• Communication: RS485
• Included Features: Without Brake IGBT
• Environmental Conditions: Indoor use, industrial environments
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Dimensions: 486mm x 361mm x 217mm (19.14" x 14.21" x 8.54")
• Weight: 28.5 kg (62.83 lbs)

Applications:

• HVAC Systems: Perfect for controlling ventilation fans, pumps, and other HVAC equipment.
• Water Treatment: Ideal for controlling pumps in water and wastewater treatment facilities.
• Manufacturing & Industrial Automation: Enhances efficiency and control in large-scale industrial processes.
• Energy Efficiency: Reduces energy consumption by providing optimized motor control for fan and pump applications.

Why Choose the Allen-Bradley 22C-D142A103 PowerFlex 400?

• Powerful Performance: Capable of handling high power loads up to 75 kW (100 HP), ideal for demanding applications.
• Energy Efficient: Designed for efficient motor control, optimizing energy usage for cost savings.
• Rugged Design: IP30-rated protection ensures durability in industrial environments.
• Easy Integration: RS485 communication for easy system integration and monitoring.
• Cost-Effective: Does not include a brake IGBT, providing an economical solution for fan and pump operations.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
