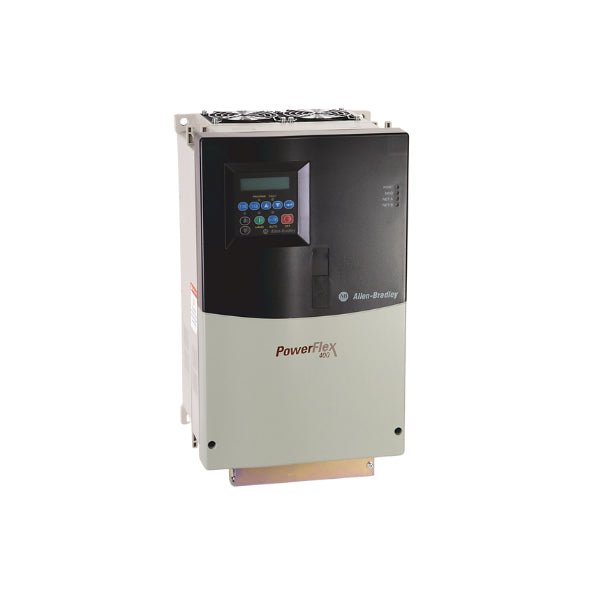

Allen-Bradley 22C-D105A103 PowerFlex 400 AC Drive | 75 HP, 480V, 3-Phase

Product Description:

The Allen-Bradley 22C-D105A103 PowerFlex 400 AC drive is specifically engineered for variable torque applications such as fans and pumps.⁶ This drive is designed for 480V AC three-phase input, has a 75 HP (55 kW) rating, and offers advanced features optimized for these applications.⁷ Its IP30 (NEMA 1 / UL Type 1) enclosure is suitable for indoor panel mounting.⁸ The PowerFlex 400 series is known for its energy-saving capabilities and application-specific features.⁹ This particular model is designed for high-power applications and includes features like PID control, a fire mode, and other functionalities beneficial for HVAC and similar systems.¹⁰ Best of all, it's IN STOCK and ready to ship TODAY from DD Parts Solution.

Key Features and Specifications:

• 75 HP (55 kW) Rating: Suitable for large fan and pump applications.
• 480V AC, 3-Phase Input: Compatible with standard industrial three-phase power.¹¹
• 105 Amp Output Current: Provides sufficient current for the rated motor.¹²
• Frame Size E: Robust design for high-power applications.
• IP30 (NEMA 1 / UL Type 1) Enclosure: Suitable for indoor panel mounting.
• PID Control: Enables precise control of pressure, flow, and other process variables.¹³
• Fire Mode: Allows for continuous operation in emergency situations (ignoring certain faults).
• RS-485 Communication: Offers communication capabilities for network integration.¹⁴
• Specifically Designed for Fan and Pump Applications: Optimized control algorithms for variable torque loads.¹⁵
• IN STOCK at DD Parts Solution: Order now for immediate shipment.

Technical Specifications:

• Catalog Number: 22C-D105A103
• Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
• Output Voltage: 0-460V AC, 3-Phase
• Output Current: 105 Amps
• Power Rating: 75 HP (55 kW)
• Frame Size: E
• Enclosure: IP30 (NEMA 1 / UL Type 1)¹⁶
• Communication: RS-485
• Input Frequency: 50/60 Hz

Applications:

• HVAC systems (Heating, Ventilation, and Air Conditioning)
• Pumping stations
• Large ventilation systems
• Other variable torque applications requiring three-phase power and optimized fan/pump control.

Benefits:

• Energy Savings: Optimized control algorithms for fans and pumps can significantly reduce energy consumption.
• Improved System Performance: Precise control of flow and pressure improves overall system efficiency.
• Application-Specific Features: Includes features like PID control and fire mode tailored for fan and pump applications.¹⁷
• Reliable Performance: Offers reliable motor control for demanding applications.

Why Choose the 22C-D105A103 from DD Parts Solution?

• Immediate Availability (IN STOCK): Reduces downtime and gets your equipment running quickly.
• Competitive Pricing: We offer competitive prices.
• Fast and Reliable Shipping: We understand your time constraints.
• Expert Customer Service: Our knowledgeable team can assist with your selection and application.
• USA Based: Providing local support and fast delivery within the United States.
• Trusted Supplier: DD Parts Solution is a trusted supplier of industrial automation components.
