Allen-Bradley 22C-D022N103 | PowerFlex 400 Fan & Pump AC Drive – 15 HP, 480V, Frame C

Overview

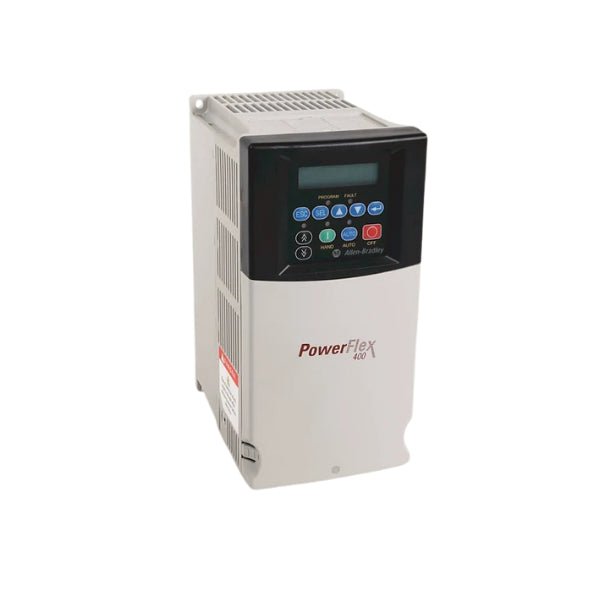

The Allen-Bradley 22C-D022N103 is a high-performance PowerFlex 400 AC variable frequency drive (VFD) designed for fan and pump control applications. With a 480V AC input, 22 A output, and support for motors up to 15 HP (11 kW), this drive offers energy-efficient speed control for HVAC and industrial systems. It comes in a Frame Size C, features an IP20 open-type enclosure, and includes a fixed keypad for onboard programming and operation.

Designed with built-in RS-485 communication, the 22C-D022N103 provides reliable integration into automation systems and is ideal for controlling centrifugal fans, booster pumps, and irrigation systems.

Key Features

• Input Voltage: 480V AC, 3-phase

• Output Current: 22 A

• Motor Power Rating: 15 HP / 11 kW

• Frame Size: C

• Enclosure Type: IP20 (open type)

• Control Panel: Fixed keypad

• Integrated Communication: RS-485 (Modbus RTU)

• Application Type: Optimized for fans and pumps

• Built-in Features: Flying start, sleep mode, catch-on-the-fly, and auto restart

• No Brake IGBT – For standard fan/pump applications without braking requirements

Technical Specifications

• Model Number: 22C-D022N103

• Series: PowerFlex 400

• Voltage Class: 480V AC

• Phases: 3-phase

• Frequency: 50/60 Hz

• Output Current: 22 A

• Motor Rating: 11 kW (15 HP)

• Frame Size: C

• Keypad: Fixed, built-in

• Enclosure: IP20, open style

• Communication Ports: RS-485 (Modbus RTU, DSI protocol)

• Operating Temperature: 0 to +50 °C (without derating)

• Mounting Type: Panel mount

• Certifications: CE, UL, cUL, RoHS

Applications

• HVAC Systems – Control fans, exhaust systems, and air handlers

• Water/Wastewater – Booster pumps, irrigation pumps

• Industrial Ventilation – Exhaust or supply fans

• Chiller Systems – Speed control for energy savings

• Commercial Buildings – Efficient fan and pump automation

Why Choose the Allen-Bradley 22C-D022N103?

• Tailored for fan and pump applications with optimized control algorithms

• Easy setup with fixed keypad and built-in communication

• Reliable, efficient performance from a trusted industrial automation brand

Order Now

Available for immediate global shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
