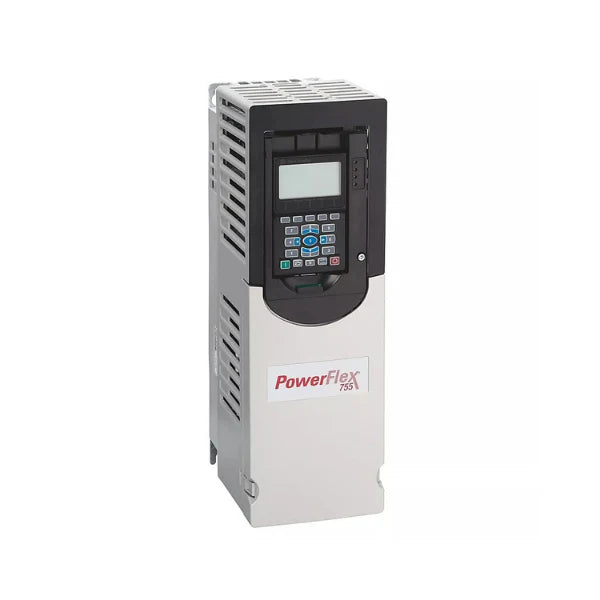

Allen-Bradley 20G11ND011JA0NNNNN PowerFlex 755 AC Drive | 480V |

Allen-Bradley 20G11ND011JA0NNNNN | PowerFlex 755 AC Packaged Drive

Overview:

The Allen-Bradley 20G11ND011JA0NNNNN PowerFlex 755 AC Drive is a high-performance variable frequency drive (VFD), designed for precision motor control and energy efficiency in industrial applications. Operating at 480V AC, this 3-phase drive supports 7.5HP Normal Duty (ND) and 5HP Heavy Duty (HD) applications with an 11A output current. It features an air-cooled, open-type enclosure, a built-in DB transistor, a CM jumper, and a filtered design for optimal performance.

Key Features:

• 480V AC 3-Phase Input – Ensures compatibility with industrial power systems
• 11A Output Current – Supports motor operation in various applications
• 7.5HP Normal Duty / 5HP Heavy Duty – Provides flexible power handling
• Air-Cooled, Open Type Design – Allows efficient heat dissipation
• Frame 2 with Filtered Design – Reduces electrical noise for improved performance
• DB Transistor Included – Supports braking applications
• CM Jumper Installed – Enhances system functionality
• Carton & Documents Included – Provides necessary product documentation

Technical Specifications:

• Model: 20G11ND011JA0NNNNN
• Drive Type: PowerFlex 755 AC Drive
• Input Voltage: 480V AC
• Phase: 3-Phase
• Output Current: 11A
• Horsepower: 7.5HP (ND) / 5HP (HD)
• Cooling Method: Air-Cooled
• Enclosure Type: Open Type
• Frame Size: 2
• DB Transistor: Yes
• HIM (Human Interface Module): Not Included
• Additional Options: None

Applications:

• Industrial motor control and automation
• Conveyor systems and material handling
• Pumps, fans, and HVAC systems
• Manufacturing and process industries

Why Choose the 20G11ND011JA0NNNNN?

The Allen-Bradley 20G11ND011JA0NNNNN PowerFlex 755 AC Drive offers advanced motor control, energy efficiency, and a durable industrial design. With its air-cooled system, braking transistor, and filtered setup, it provides reliable performance for demanding applications.

Order Now

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
