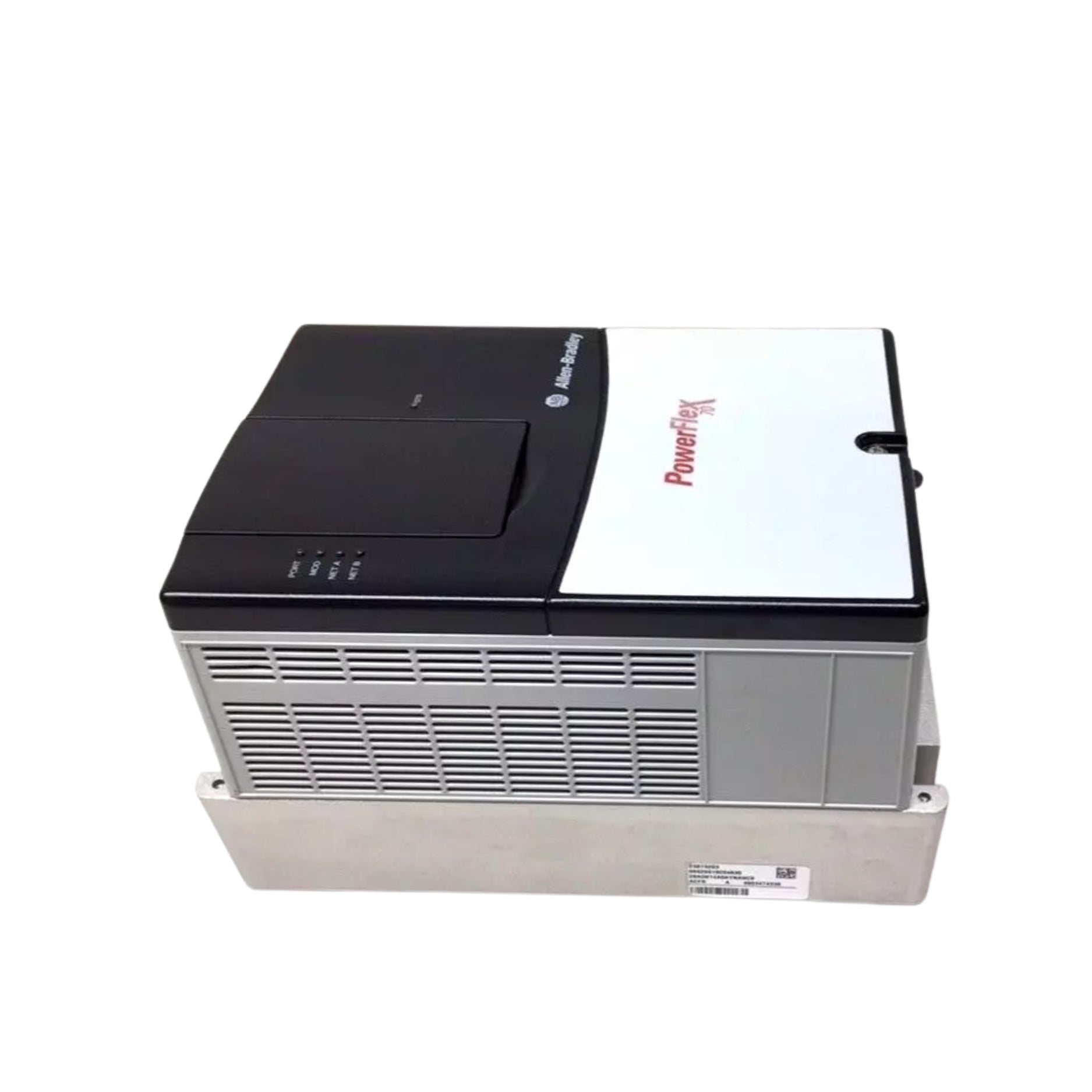

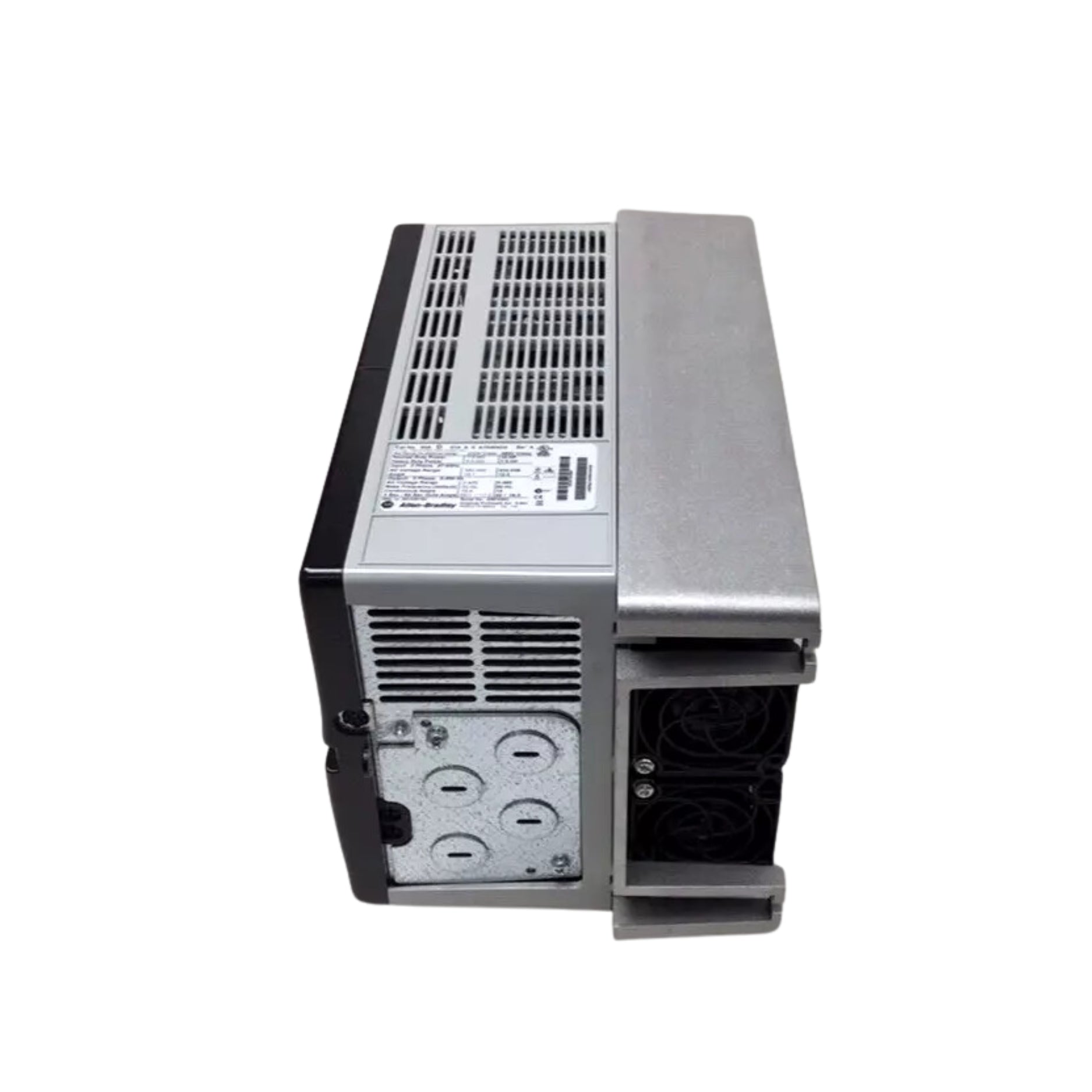

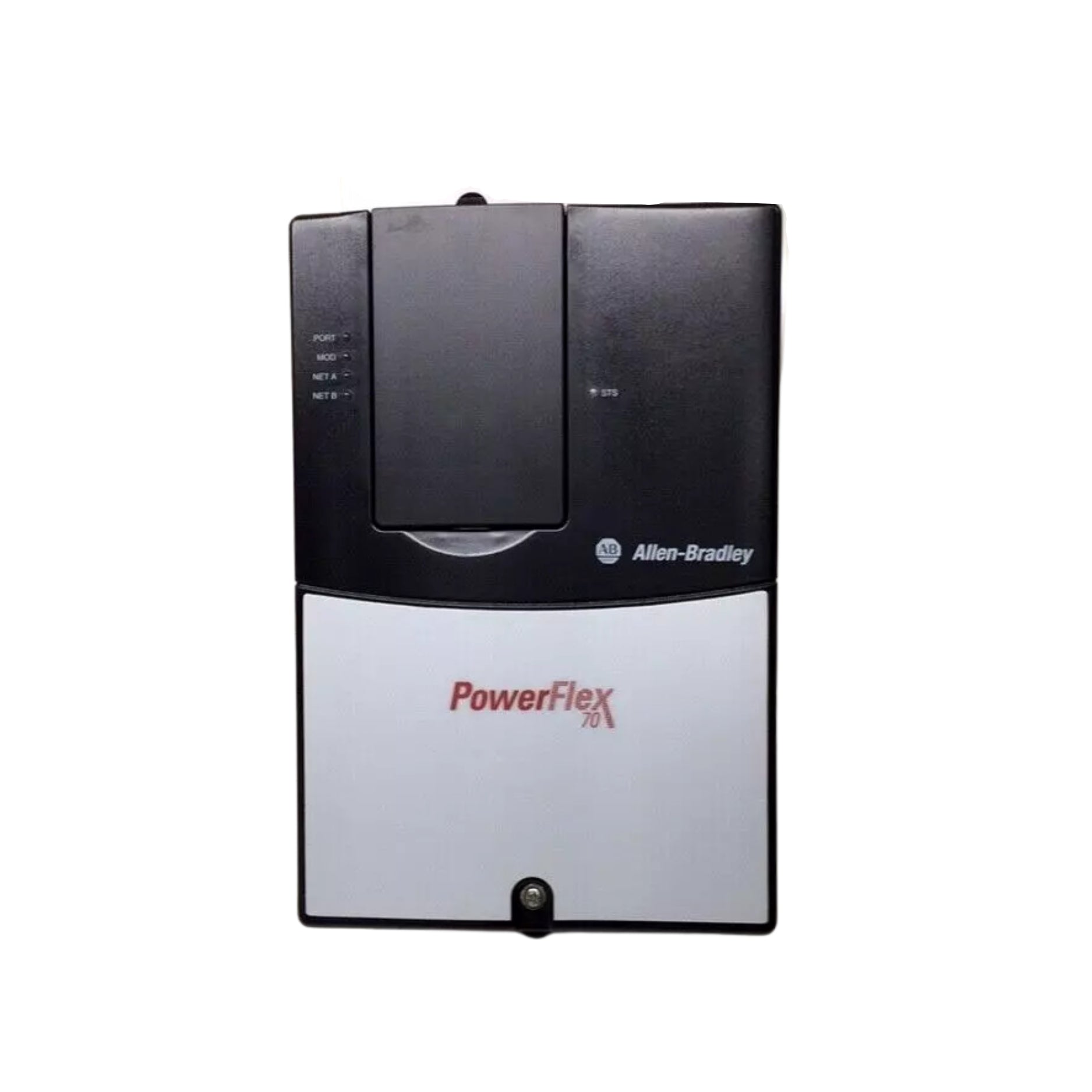

Allen Bradley 20AD014A0AYNANC0 PowerFlex 70 | 480V, 14A, 10/7.5HP

Product Description:

The Allen-Bradley 20AD014A0AYNANC0 is a PowerFlex 70 AC drive designed for a wide range of industrial applications.¹ This drive operates on 480V AC, three-phase power, with a rated output current of 14 Amps.² It is rated for 10 HP in normal duty applications and 7.5 HP in heavy-duty applications.³ The drive is designed for panel mounting and has an IP20/NEMA Type 1 enclosure rating.⁴ It does not include a Human Interface Module (HIM) for local programming, has a Brake IGBT installed (for dynamic braking), but does not include a drive-mounted brake resistor (an external resistor is required).⁵ It also includes a second environment filter for compliance with CE EMC directives and does not include a communication module or feedback. It features enhanced control capabilities.

Key Features:

• PowerFlex 70 Series: Offers versatile and reliable AC drive performance.
• 480V AC, Three-Phase Input: Compatible with standard industrial three-phase power systems.⁶
• 14A Output Current: Suitable for motors within its power rating.
• 10 HP Normal Duty / 7.5 HP Heavy Duty: Specifies the horsepower rating for different load types.
• Panel Mount - IP20 / NEMA Type 1: Designed for panel mounting in protected environments.
• No HIM (Human Interface Module): Requires external programming or control.
• Brake IGBT Installed: Includes a built-in braking transistor for dynamic braking.
• Without Drive Mounted Brake Resistor: Requires an external braking resistor.
• Second Environment Filter (per CE EMC directive): Provides enhanced EMI/RFI filtering for compliance in specific environments.⁷
• No Communication Module: Does not include a built-in communication module (e.g., EtherNet/IP, DeviceNet).
• Enhanced Control: Offers advanced control features for improved motor performance.
• No Feedback: Does not support encoder feedback for closed-loop control.

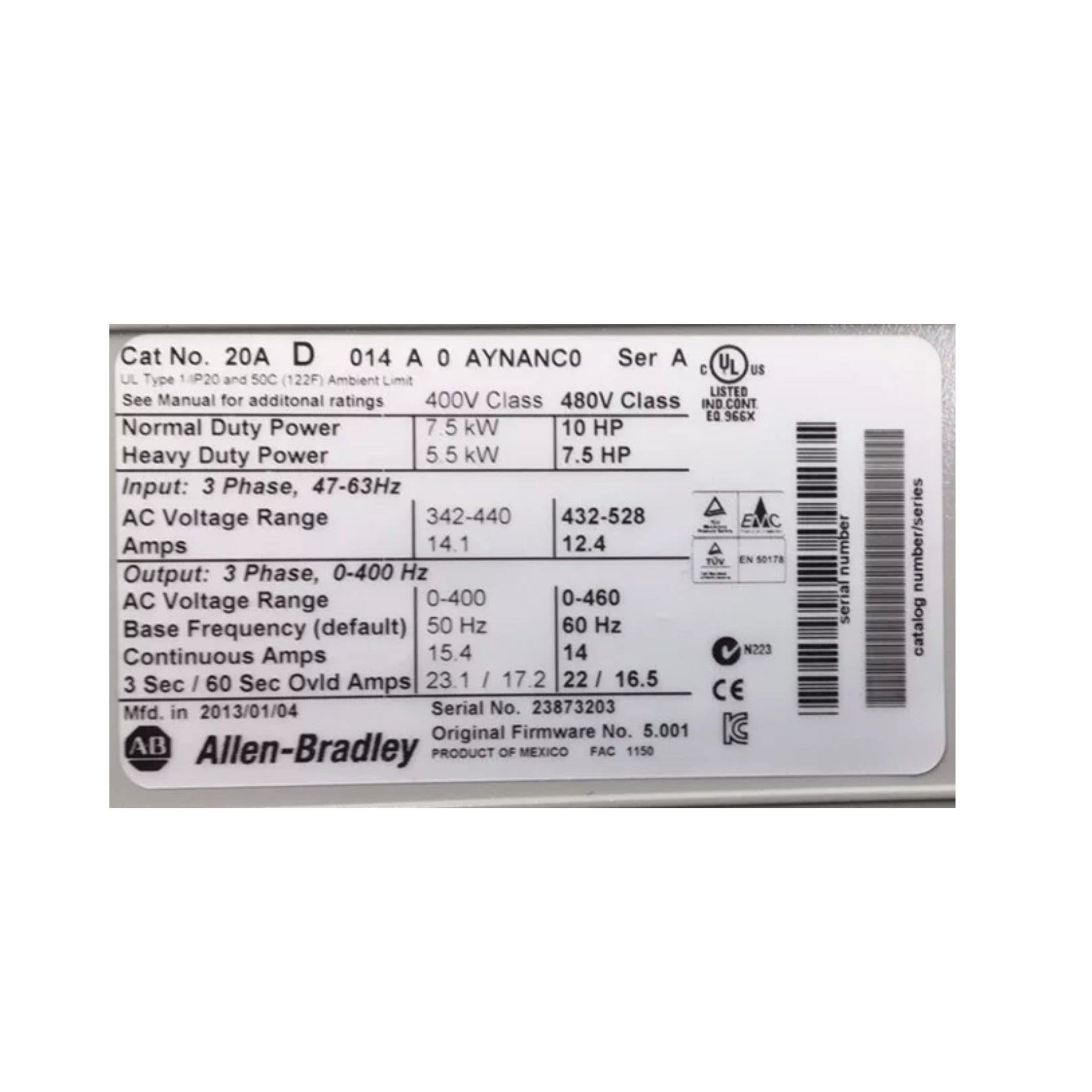

Technical Specifications:

• Product Type: AC Drive / Variable Frequency Drive (VFD)
• Catalog Number: 20AD014A0AYNANC0
• Series: PowerFlex 70
• Input Voltage: 480V AC, Three-Phase, 50/60 Hz
• Output Current: 14 A
• Power Rating: 10 HP (Normal Duty), 7.5 HP (Heavy Duty)⁸
• Enclosure Type: IP20 / NEMA Type 1
• HIM: None (Requires external programming)
• Braking: Brake IGBT Installed, No Drive Mounted Resistor (External resistor required)
• EMC Filter: Second Environment Filter (per CE EMC directive 89/336/EEC)⁹

Applications:

• Pumps
• Fans
• Conveyors
• Other general-purpose industrial applications
