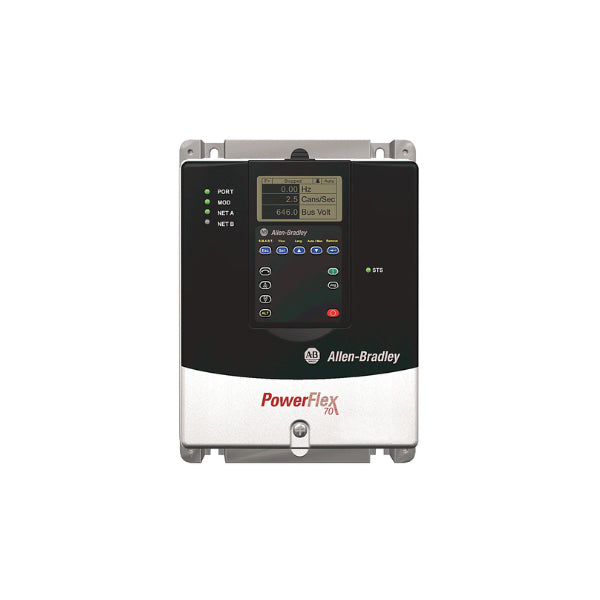

Allen-Bradley 20AC5P0A0NYNANC0 PowerFlex 70 AC Drive | 2.2kW ND/1.5kW HD, 5A, 400V

Product Description:

The Allen-Bradley 20AC5P0A0NYNANC0 PowerFlex 70 AC drive is a flexible and robust drive designed for a range of industrial applications. This drive is rated for 2.2 kW (kilowatts) in Normal Duty and 1.5 kW in Heavy Duty operation, with a 5 Amp output current. It's designed for 400V AC three-phase input.

This particular model is designed for panel mounting and has an IP20/NEMA Type 1 enclosure, meaning it's intended for installation within a protected environment. It features conformal coating for enhanced protection against harsh conditions. This specific model has no HIM (Human Interface Module), meaning it uses external programming or network communication for configuration. It has a brake IGBT installed for dynamic braking but does not include a drive-mounted brake resistor (it would need to be external). It also includes a second environment filter per the CE EMC directive (89/336/EEC). It has no communication module installed and offers enhanced control capabilities but no feedback option.

The key difference between this model (20AC5P0A0NYNANC0) and similar PowerFlex 70 drives is the specific hardware configuration related to cooling and mounting. While both are panel mount, the specific heatsink and mounting provisions will differ, affecting thermal performance and installation details.

And as always, it's IN STOCK and ready to ship TODAY from DD Parts Solution.

Key Features and Specifications:

• 2.2 kW (Normal Duty) / 1.5 kW (Heavy Duty) Rating: Suitable for a variety of motor applications.
• 400V AC, 3-Phase Input: Compatible with standard industrial three-phase power.¹
• 5 Amp Output Current: Provides sufficient current for the rated motor.
• Panel Mount - IP20/NEMA Type 1: Designed for protected environments.
• Conformal Coating: Provides enhanced protection against harsh environments.
• No HIM (Blank Plate): Requires external programming.
• Brake IGBT Installed: Enables dynamic braking (external resistor required).
• No Drive-Mounted Brake Resistor: Requires an external braking resistor.
• Second Environment Filter (CE EMC): Complies with CE EMC directives.
• No Communication Module: Requires an optional communication module for network connectivity.
• Enhanced Control: Offers advanced control algorithms.
• No Feedback: Operates in open-loop control.
• IN STOCK at DD Parts Solution: Order now for immediate shipment.

Technical Specifications:

• Catalog Number: 20AC5P0A0NYNANC0
• Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
• Output Voltage: 0-Input Voltage, 3-Phase
• Output Current: 5 Amps
• Power Rating: 2.2 kW (Normal Duty), 1.5 kW (Heavy Duty)
• Enclosure: Panel Mount - IP20/NEMA Type 1
• Cooling Method: Convection/Heatsink (Likely)
• Braking: Brake IGBT Installed (External Resistor Required)
• Filtering: Second Environment Filter (CE EMC)
• Control Method: Enhanced Control (Sensorless Vector Control)
• Feedback: No Feedback (Open Loop)
• Overload Capacity: (Find this in the documentation)
• Efficiency: (If available)

Applications:

• Pumps, fans, and blowers
• Conveyors
• Material handling systems
• Other general-purpose industrial applications where feedback is not required.

Benefits:

• Cost-Effective: Provides a cost-effective solution for basic motor control needs.
• Enhanced Control: Offers advanced control algorithms for improved performance.
• Conformal Coating: Suitable for harsh environments.

Why Choose the 20AC5P0A0NYNANC0 from DD Parts Solution?

• Immediate Availability (IN STOCK): Reduces downtime.
• Competitive Pricing: We offer competitive prices.
• Fast and Reliable Shipping: We understand the importance of prompt delivery.
• Expert Customer Service: Our knowledgeable team can assist with your drive selection and application.
• USA Based: Providing local support and fast delivery within the United States.
• Trusted Supplier: DD Parts Solution is a trusted supplier.

DDPARTSSOLUTION specializes in hard-to-find parts. Choose from our overstock inventory and save on 20AC5P0A0NYNANC0. DDPARTSSOLUTION carries 24,195 items from Allen Bradley.
