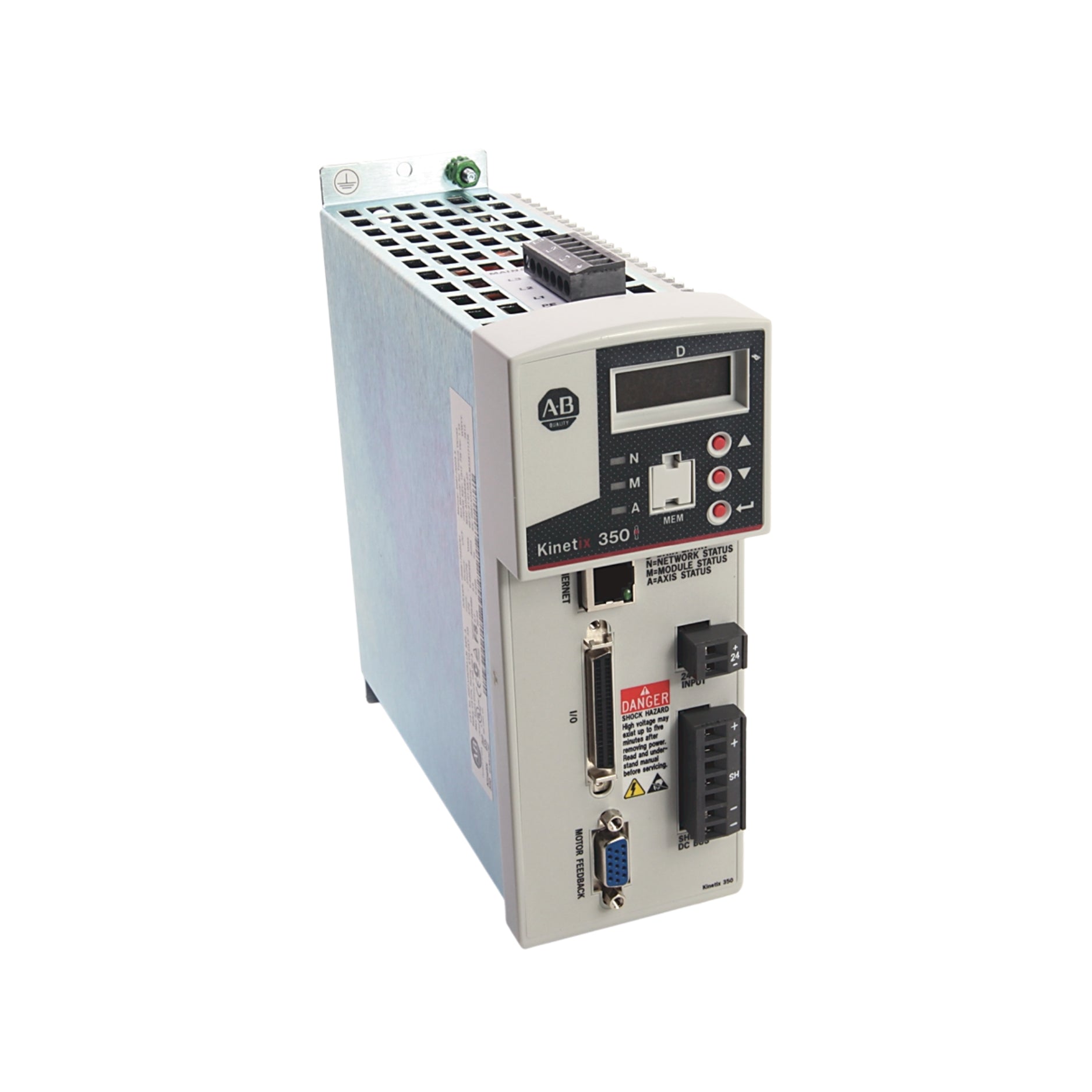

Allen-Bradley 2097-V34PR6-LM

Allen-Bradley 2097-V34PR6-LM

Overview

The Allen-Bradley 2097-V34PR6-LM is a high-performance single-axis servo drive from the Kinetix 350 series, designed to simplify motion control in EtherNet/IP-based systems. With a 3.0 kW output, support for 480V AC three-phase input, and integrated Safe Torque Off (STO) functionality, it offers precise, safe, and scalable control for a variety of automation applications.

Engineered for integration with Logix-based controllers, this drive is ideal for standalone machines, offering powerful motion control without the complexity of multi-axis systems.

Key Features

• Drive Type: Single-axis servo drive

• Power Output: 3.0 kW continuous

• Input Voltage: 480V AC, three-phase

• Network: EtherNet/IP with CIP Motion

• Safety Feature: Built-in Safe Torque Off (STO)

• Control: Integrated motion with Logix controllers

• Mounting: Panel-mounted

• Feedback Support: Encoder feedback (motor dependent)

Technical Specifications

• Catalog Number: 2097-V34PR6-LM

• Rated Output Current: Approx. 6 A RMS continuous

• Input Frequency: 47–63 Hz

• Peak Current: Supports peak current based on overload limits

• Operating Temperature: 0°C to +50°C

• Certifications: UL, CE, TUV, cULus, SIL 2 (STO), RoHS

• Motor Compatibility: Compatible with VPL and other Kinetix motors

• Enclosure Rating: IP20 (when installed in enclosure)

Applications

• Packaging and converting machines

• Standalone automation systems

• CNC and motion platforms

• Food and beverage equipment

• OEM systems requiring EtherNet/IP motion

Why Choose the 2097-V34PR6-LM

• Compact Motion Control: Ideal for single-axis applications

• Integrated Safety: STO improves protection without external wiring

• Logix Integrated: Easy programming and diagnostics via Studio 5000

• Scalable Design: Part of a cost-effective EtherNet/IP motion solution

• Reliable Performance: Built for precision in demanding environments

Order Now

The Allen-Bradley 2097-V34PR6-LM Kinetix 350 servo drive is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
