Allen-Bradley 194R-HM4E

Allen-Bradley 194R-HM4E

Product Overview

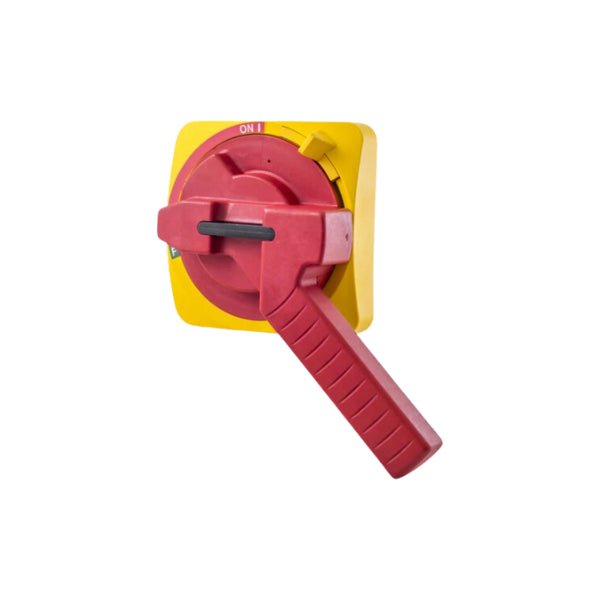

The Allen-Bradley 194R-HM4E is a 4-pole rotary disconnect switch designed to provide reliable electrical isolation and protection in industrial environments. With a current rating of 160 amps, this panel-mounted unit features a NEMA-rated handle for safe and secure manual operation. It is ideal for motor disconnects, load break switching, and compliance with lockout/tagout (LOTO) safety practices.

Key Highlights

• Switch Type: Rotary disconnect

• Poles: 4

• Current Rating: 160 A

• Mounting Style: Panel mount

• Handle Type: NEMA-style operator

• Lockable in the OFF position (LOTO compliant)

• Visible blade design enhances safety

• Suitable for main or motor disconnect applications

Detailed Specifications

• Part Number: 194R-HM4E

• Voltage Rating: Up to 600V AC

• Continuous Current: 160 Amps

• Interlock: Accepts up to three padlocks in OFF position

• Mounting: Front panel mount with handle mechanism

• Environmental Rating: NEMA 1, 3R, 12 (handle dependent)

• Certifications: UL, CE, CSA

• Operating Temp: -25°C to +60°C

• Application Category: AC-23A (motor load switching)

Common Uses

• Motor and equipment disconnects

• Industrial control panels

• Machine safety and maintenance systems

• Energy isolation for maintenance access

• Electrical service entrance disconnects

Why It Stands Out

• Reliable and secure disconnection for high-current circuits

• LOTO-compatible for enhanced safety compliance

• Robust NEMA-rated handle with positive action

• Designed for harsh industrial settings

• Backed by Allen-Bradley’s trusted performance and durability

Get Yours Today

The Allen-Bradley 194R-HM4E disconnect switch is available and ready to ship.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
