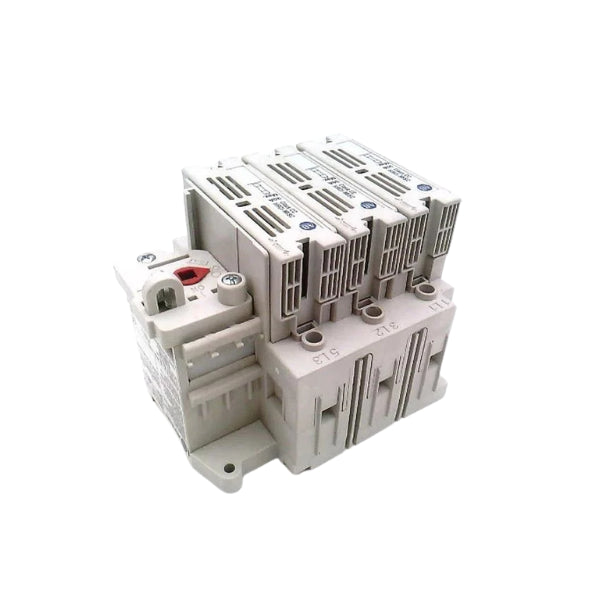

Allen-Bradley 194R-C30-1753 Fused Disconnect Switch, 3 Poles,

Product Overview

The Allen-Bradley 194R-C30-1753 is a fused disconnect switch designed for industrial control systems that require reliable disconnection and protection from overloads. This switch features an open style construction, allowing for easy integration into a variety of control panels. With a 30A switch ampere rating, 3 poles, and compliance with UL Class CC and CSA Type HRCI-MISC standards, the 194R-C30-1753 ensures excellent protection for your electrical systems while providing efficient operation.

Key Features

• Fused Disconnect:

  • Designed to disconnect electrical circuits safely, offering an essential level of protection from overloads and short circuits.

• 30A Ampere Rating:

  • Supports a 30A switch ampere rating, providing the necessary capacity for small to medium-duty industrial applications.

• 3 Poles:

  • The 3-pole design ensures proper disconnection of the electrical system for all three phases in three-phase systems, ensuring balanced protection.

• UL Class CC Certified:

  • Meets UL Class CC standards, offering high-performance protection and ensuring compliance with safety regulations.

• CSA Type HRCI-MISC Certified:

  • Certified under CSA Type HRCI-MISC, a standard that supports a wide range of industrial applications and provides protection against fault currents.

• Open Style Construction:

  • The open style design allows for easy access during maintenance or installation and provides flexibility for integrating the switch into various control panel designs.

Technical Specifications

Applications

• Industrial Control Panels: The 194R-C30-1753 is ideal for use in control panels where reliable circuit disconnection and protection are required, including motor control centers, distribution boards, and machine control systems.

• Overload Protection: Provides overload protection for motors, electrical circuits, and industrial equipment to prevent damage during electrical faults.

• Switching of High-Current Circuits: Perfect for high-current circuits that require efficient switching and disconnection, offering secure and safe operation in industrial environments.

• Automation Systems: An essential component for automation systems, ensuring the safe disconnect of circuits in case of fault or maintenance needs.

Benefits

• Safety and Protection: The fused disconnect switch provides essential safety features, preventing damage from short circuits or overload conditions, ensuring the integrity of your electrical systems.

• Compliance with Safety Standards: UL Class CC and CSA Type HRCI-MISC certifications ensure the switch meets high industry safety standards, offering peace of mind during operation.

• Durable Construction: Built for industrial use, the open style construction allows for quick maintenance, easy installation, and compatibility with various control systems.

• Enhanced Reliability: The 30A ampere rating ensures reliable disconnection and protection for circuits with moderate power demands, providing excellent performance in everyday industrial operations.

Why Choose the Allen-Bradley 194R-C30-1753 Fused Disconnect Switch?

The Allen-Bradley 194R-C30-1753 Fused Disconnect Switch is engineered to provide maximum protection and reliability in industrial environments. With its fused design, 30A ampere rating, 3-pole configuration, and compliance with UL and CSA certifications, it is the ideal choice for safely disconnecting electrical circuits while ensuring compliance with safety regulations.

Contact us today to learn more about how the 194R-C30-1753 Fused Disconnect Switch can protect your systems and streamline your electrical control needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
