Allen-Bradley 1769-OW8I Compact Relay Output Module – 8 Isolated Outputs

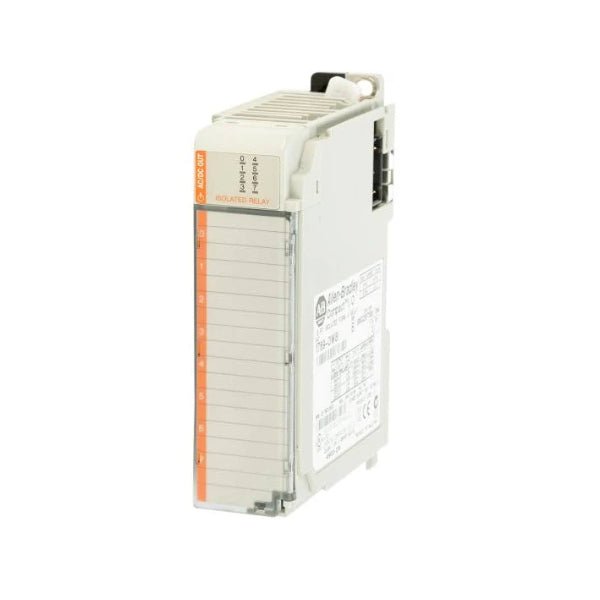

Allen-Bradley 1769-OW8I – Compact Digital Relay Output Module

Product Description:
The Allen-Bradley 1769-OW8I is a Compact I/O relay output module designed to provide flexible and reliable control for industrial applications. It features eight individually isolated relay outputs, making it suitable for managing a variety of electrical loads, including motors, solenoids, and lamps. This module integrates seamlessly into CompactLogix systems, offering enhanced performance and ease of use.

Technical Specifications:

• Model Number: 1769-OW8I
• Number of Outputs: 8 isolated relay outputs
• Output Voltage Range:
  • AC: 5V to 265V
  • DC: 5V to 125V
• Maximum Current per Point:
  • AC: 2.5A
  • DC: 2.0A
• Isolation Voltage: 250V (field side to system)
• Response Time:
  • Turn-On: 10 ms (typical)
  • Turn-Off: 10 ms (typical)
• Power Consumption: 0.9W (maximum)
• Module Type: Compact I/O
• Dimensions: 118 x 87 x 35 mm
• Certifications: UL, CE, and C-Tick compliant

Key Features:

• Individually Isolated Outputs: Supports independent control and protection for each output.
• Wide Voltage Range: Compatible with both AC and DC loads.
• High Current Capacity: Manages substantial electrical loads, enhancing versatility.
• Compact Design: Fits into CompactLogix systems with minimal space requirements.
• Status LEDs: Provides clear indicators for module and output status for easy diagnostics.
• Durable Build: Ensures reliable operation in demanding industrial environments.

Applications:

• Motor Control: Manages motor starters and contactors effectively.
• Lighting Systems: Controls industrial lighting setups.
• Solenoid Operations: Powers solenoids for fluid and gas control.
• General Automation: Suitable for a wide range of industrial automation tasks, including material handling and process control.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
