Allen-Bradley 1769-IF4XOF2 | 4 Analog Inputs & 2 Analog Outputs | Compact I/O

Allen-Bradley 1769-IF4XOF2 | Compact I/O Analog Combination Module (4 Inputs / 2 Outputs)

Overview

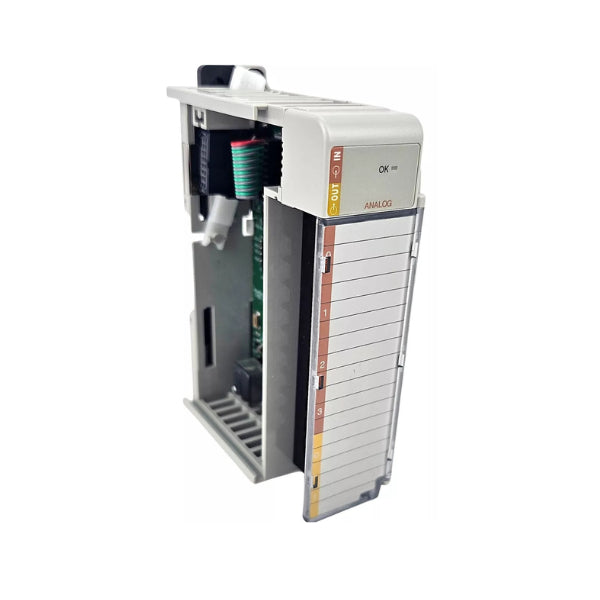

The Allen-Bradley 1769-IF4XOF2 is a Compact I/O combination analog module that provides 4 analog inputs and 2 analog outputs in a single, space-saving unit. Designed for use with CompactLogix and MicroLogix 1500 controllers, this module supports voltage and current signal ranges, enabling versatile analog signal integration in control systems.

It’s ideal for applications that require analog measurement and control in one module — such as process monitoring, actuator control, and sensor feedback.

Key Features

• 4 Analog Inputs + 2 Analog Outputs – Combines signal measurement and control

• Input & Output Signal Types: Voltage and Current

• High Resolution & Accuracy – Suitable for precise control applications

• Compact Design – Saves space in control panels

• Removable Terminal Block (RTB) – Easy wiring and maintenance

• Compatible with CompactLogix & MicroLogix 1500

• DIN-Rail Mounted – Standard industrial installation

Technical Specifications

• Catalog Number: 1769-IF4XOF2

• Analog Inputs: 4

  • Voltage Ranges: ±10V, 0–10V

  • Current Ranges: 0–20 mA, 4–20 mA

• Analog Outputs: 2

  • Voltage Output: 0–10V

  • Current Output: 4–20 mA

• Resolution:

  • Inputs: 15 bits

  • Outputs: 14 bits

• Accuracy: ±0.5% full scale (typical)

• Backplane Current Draw: 120 mA @ 5V DC, 50 mA @ 24V DC

• Mounting: DIN rail

• Operating Temperature: 0°C to +60°C

• Removable Terminal Block Included: Yes

Applications

• Industrial Process Control – Sensor input and actuator output in one module

• OEM Machinery – Cost-effective signal integration

• Temperature, Pressure, and Flow Monitoring

• Automation Panels – Ideal for compact or mid-sized systems

Why Choose the 1769-IF4XOF2?

• Combines analog input and output in one module

• Flexible signal range options

• Reduces panel space and wiring complexity

Order Now

In stock and ready to ship globally.
