Allen-Bradley 1769-CLL1

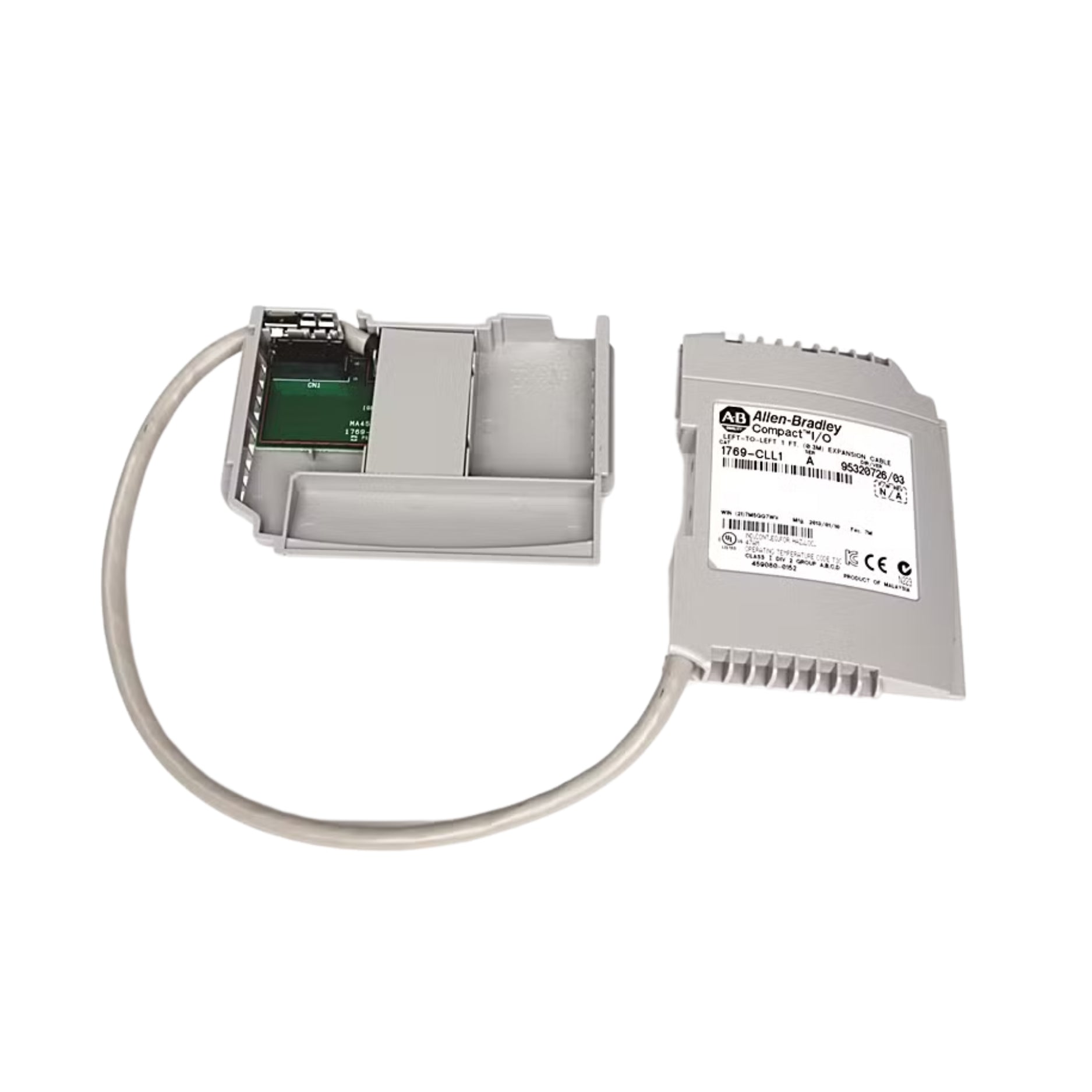

Allen-Bradley 1769-CLL1 | CompactLogix Communication Expansion Cable – 1 ft (305 mm), Left-to-Left Orientation

Overview

The Allen-Bradley 1769-CLL1 is a left-to-left communication bus expansion cable for use with CompactLogix controllers and I/O modules. At 1 foot (305 mm) in length, it allows for flexible module spacing within a control panel while maintaining reliable backplane communication between left-oriented modules.

Perfect for installations where modules must be physically separated, the 1769-CLL1 enables clean, organized, and space-efficient layouts.

Key Features

• Cable Length: 1 ft (305 mm)

• Orientation: Left-to-Left

• System Compatibility: CompactLogix and 1769 I/O systems

• Use Case: Connects separate left-mounted modules within the same system

• Flexible Installation – Improves cabinet layout and access

• Maintains Backplane Communication – For seamless system expansion

Technical Specifications

• Model: 1769-CLL1

• Cable Type: Communication bus expansion

• Orientation: Left-to-Left

• Length: 1 ft (305 mm)

• Connector Type: 1769 CompactLogix-specific

• Operating Temp: 0°C to +60°C

• Certifications: UL, CE, c-UL

Applications

• CompactLogix Installations – When modules must be spaced apart

• Distributed Control Panels – Neat routing for modular systems

• Machine Builders & OEMs – Optimize footprint and wiring layout

• Field Maintenance & Retrofits – Simplifies upgrades and changes

Why Choose the 1769-CLL1?

• Simple expansion for left-side module communication

• Ideal for compact or custom enclosures

• Enables modular flexibility in control cabinet design

Order Now

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
