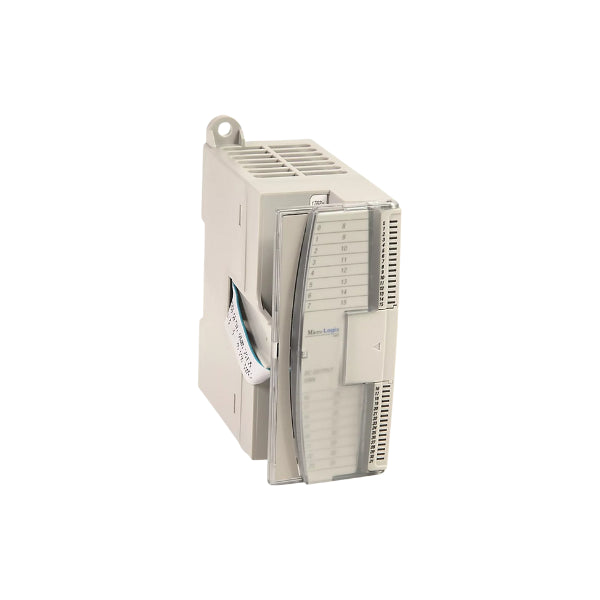

Allen-Bradley 1762-OB32T

Allen-Bradley 1762-OB32T | 32-Channel Digital Output Module – 24V DC Sourcing, High-Density I/O, For MicroLogix

Overview

The Allen-Bradley 1762-OB32T is a 32-point digital output module for MicroLogix 1200 and 1400 systems, offering 24V DC sourcing outputs with up to 0.5A per point. Designed with two isolated groups of 16 points, this high-density module is ideal for applications requiring compact, reliable DC control of actuators, relays, and indicators.

Perfect for space-constrained panels, the OB32T helps expand your I/O capability while maintaining a small footprint.

Key Features

• Output Points: 32 sourcing outputs

• Voltage Rating: 24V DC (nominal)

• Current Rating: 0.5A per point, 4A per group

• Group Isolation: 2 groups of 16 points

• Output Type: Solid-state sourcing (PNP)

• Response Time: Fast switching (0.1 ms ON/OFF)

• LED Indicators: Channel-level status display

• Removable Terminal Block – For simplified installation and maintenance

Technical Specifications

• Model: 1762-OB32T

• Channels: 32 sourcing (PNP) outputs

• Voltage Range: 10–30V DC

• Current Capacity: 0.5A per channel, 4A max per group

• Mounting: DIN rail or panel

• Operating Temp: 0°C to +55°C

• Compatible With: MicroLogix 1200 and 1400

• Certifications: UL, CE, c-UL

Applications

• High-Density Output Needs – Ideal for control cabinets with many loads

• OEM Equipment – Compact I/O solutions

• Material Handling Systems – Solenoids, relays, indicators

• Building Automation – Lighting, alarms, and access control

Why Choose the 1762-OB32T?

• 32-point high-density design for efficient output expansion

• Reliable 24V DC sourcing output with fast response time

• Group isolation enhances system protection and flexibility

Order Now

In stock and ships worldwide. Ask about MicroLogix CPUs, matching input modules, or prewired terminal kits.
