Allen-Bradley 1756-PLS | Programmable Limit Switch | Resolver

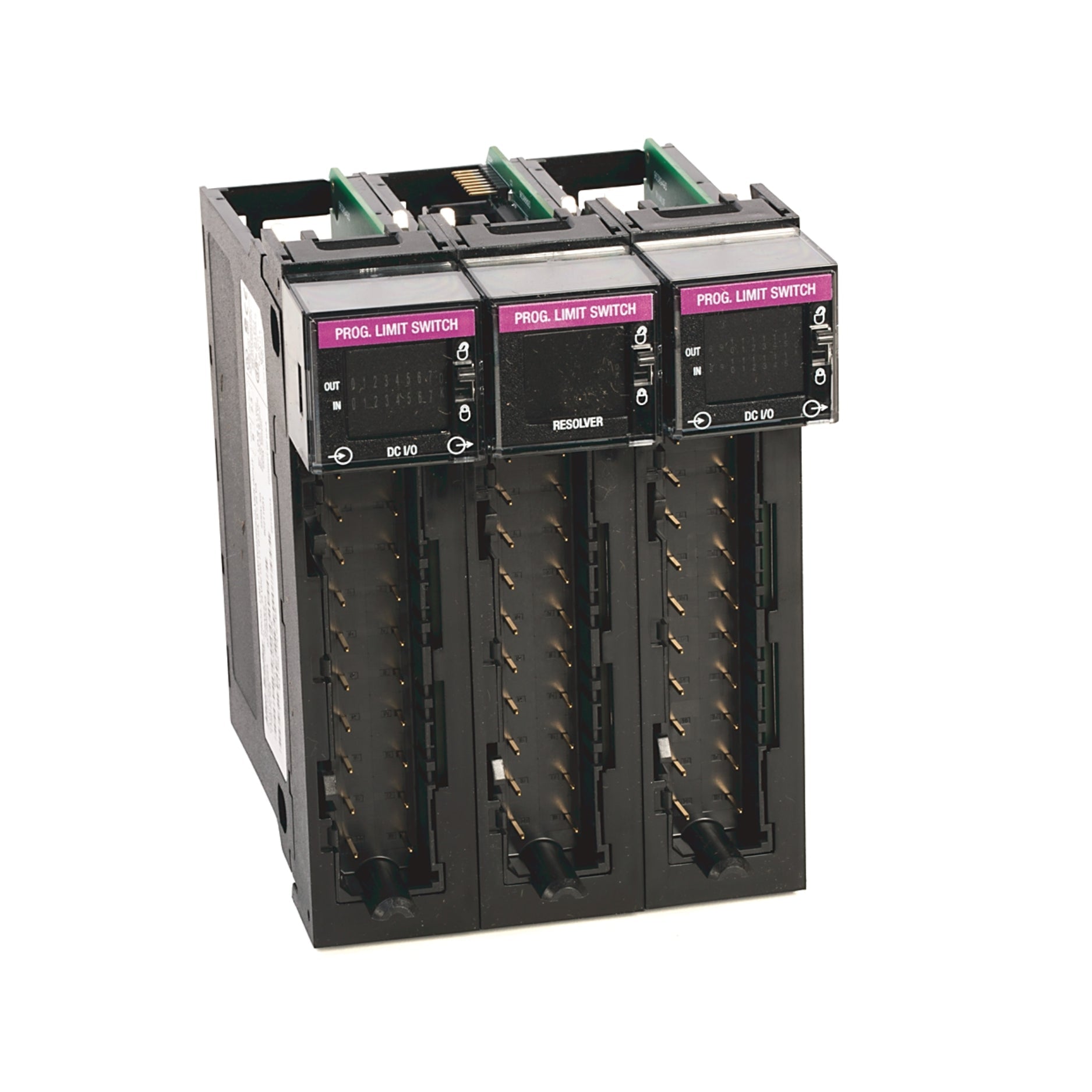

Allen-Bradley 1756-PLS | ControlLogix Programmable Limit Switch – Resolver Interface, 4x4 I/O, 3-Slot Module

Overview

The Allen-Bradley 1756-PLS is a high-speed programmable limit switch (PLS) module for the ControlLogix platform, designed for motion control and precision timing applications. This 3-slot wide module features a resolver interface and 4 groups of 4 configurable inputs and outputs, providing real-time response based on position feedback.

Ideal for rotary indexing, high-speed packaging, labeling, or press operations, the 1756-PLS enables tight synchronization between machine motion and discrete outputs with microsecond-level accuracy.

Key Features

• Module Type: Programmable Limit Switch (PLS)

• Width: 3-slot wide

• I/O Groups: 4 groups of 4 (total of 16 inputs and 16 outputs)

• Input Type: Resolver-based position feedback

• Output Response Time: Microsecond-level precision

• Connector Type: Three 20-pin interfaces

• High-Speed Timing – Ideal for motion control synchronization

• Fully Integrated with ControlLogix architecture

• Software Configurable – Custom limit switch profiles

Technical Specifications

• Model: 1756-PLS

• Platform: Allen-Bradley ControlLogix

• Inputs/Outputs: 4 groups × 4 channels each

• Feedback Type: Resolver interface

• Slot Width: 3 standard ControlLogix slots

• Connectors: 3 × 20-pin

• Mounting: ControlLogix chassis

• Operating Temp: 0°C to +60°C

• Certifications: UL, CE, c-UL

Applications

• High-Speed Packaging Equipment – Output sync with rotary motion

• Labeling & Printing Machines – Precise cut, mark, or apply control

• Stamping & Press Automation – Limit switch logic based on shaft position

• Motion-Based Triggers – Rotary encoder or resolver-based precision control

Why Choose the 1756-PLS?

• Ultra-fast response based on resolver position feedback

• Flexible and programmable I/O logic per position or machine cycle

• Optimized for high-performance motion control environments

Order Now

In stock and ships worldwide. Ask about resolver cables, terminal connectors, or motion controller compatibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
