Allen-Bradley 1756-OV32E

Allen-Bradley 1756-OV32E | 32-Point Digital Output Module – 10–30V DC Sinking, Electronically Fused, 36-Pin

Overview

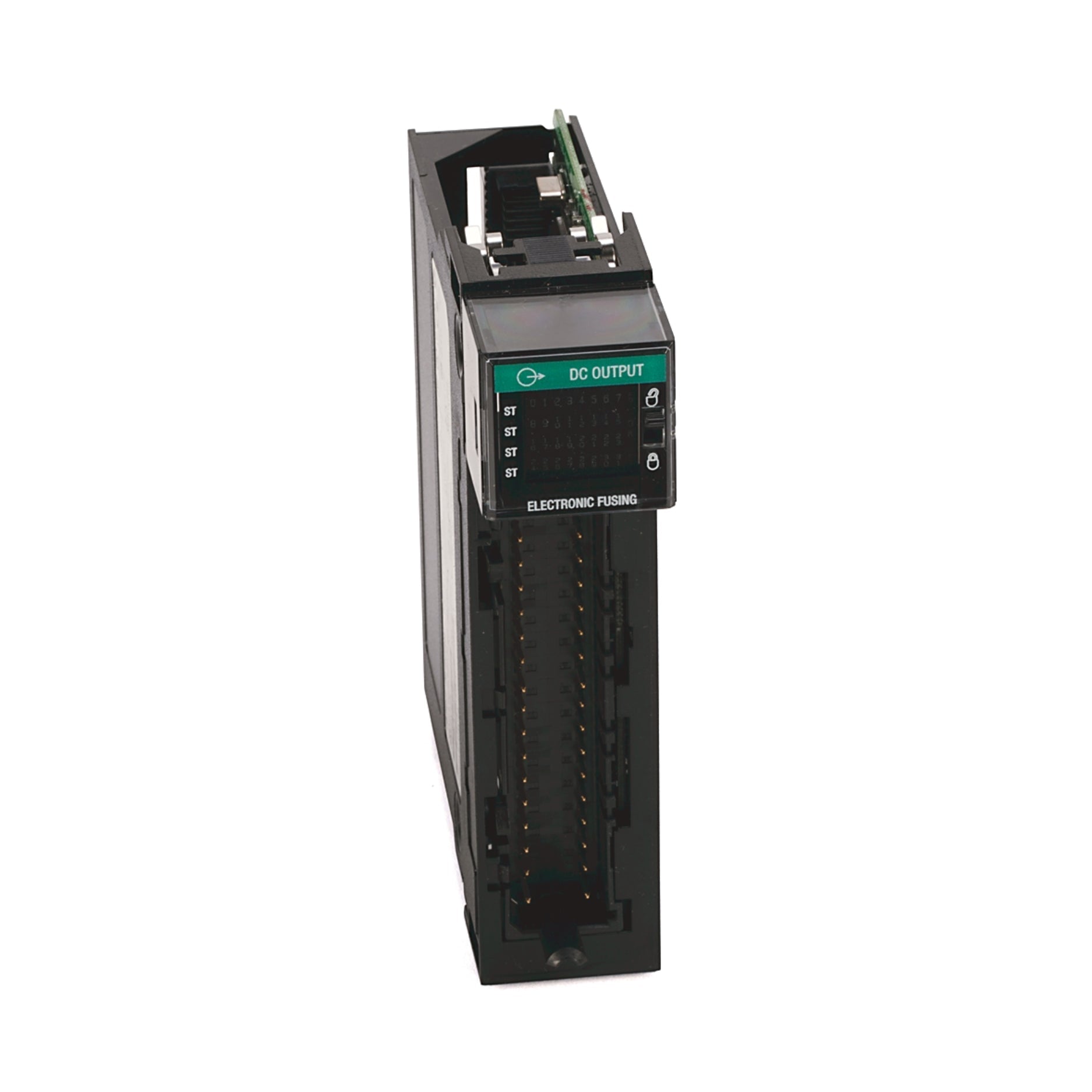

The Allen-Bradley 1756-OV32E is a 32-point digital sinking output module for the ControlLogix system, designed to deliver 10–30V DC outputs with electronic fusing protection. It features a 36-pin connector and is ideal for high-density, high-reliability output requirements in industrial automation environments.

With built-in electronic fuses and per-channel diagnostics, this module enhances system safety, fault detection, and output performance for demanding applications.

Key Features

• Output Type: Digital sinking (NPN)

• Voltage Range: 10–30V DC

• Output Channels: 32

• Connector: 36-pin

• Electronic Fusing: Yes – Overcurrent protection

• Per-Channel LED Indicators – Quick diagnostics

• High-Density Output – Optimized for space-saving installations

• Compatible with ControlLogix Chassis

Technical Specifications

• Model: 1756-OV32E

• Output Channels: 32 sinking

• Output Voltage: 10–30V DC

• Max Current per Point: 0.5A

• Max Current per Module: 8A total

• Connector Type: 36-pin

• Backplane Current (5.1V): ~250 mA

• Backplane Current (24V): ~150 mA

• Electronic Protection: Yes, auto-resettable

• Operating Temperature: 0°C to +60°C

• Mounting: ControlLogix chassis

Applications

• Packaging Lines – High-volume digital control

• Material Handling – Output to sensors, solenoids, actuators

• Factory Automation – Dense output modules for modern machines

• Process Control Systems – Reliable and safe output switching

Why Choose the 1756-OV32E?

• 32-point density saves space and reduces module count

• Built-in electronic fusing protects wiring and loads

• Sinking output design fits many industrial devices

Order Now

In stock and ready to ship worldwide. Contact us for terminal block kits, ControlLogix chassis, or bulk pricing.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
