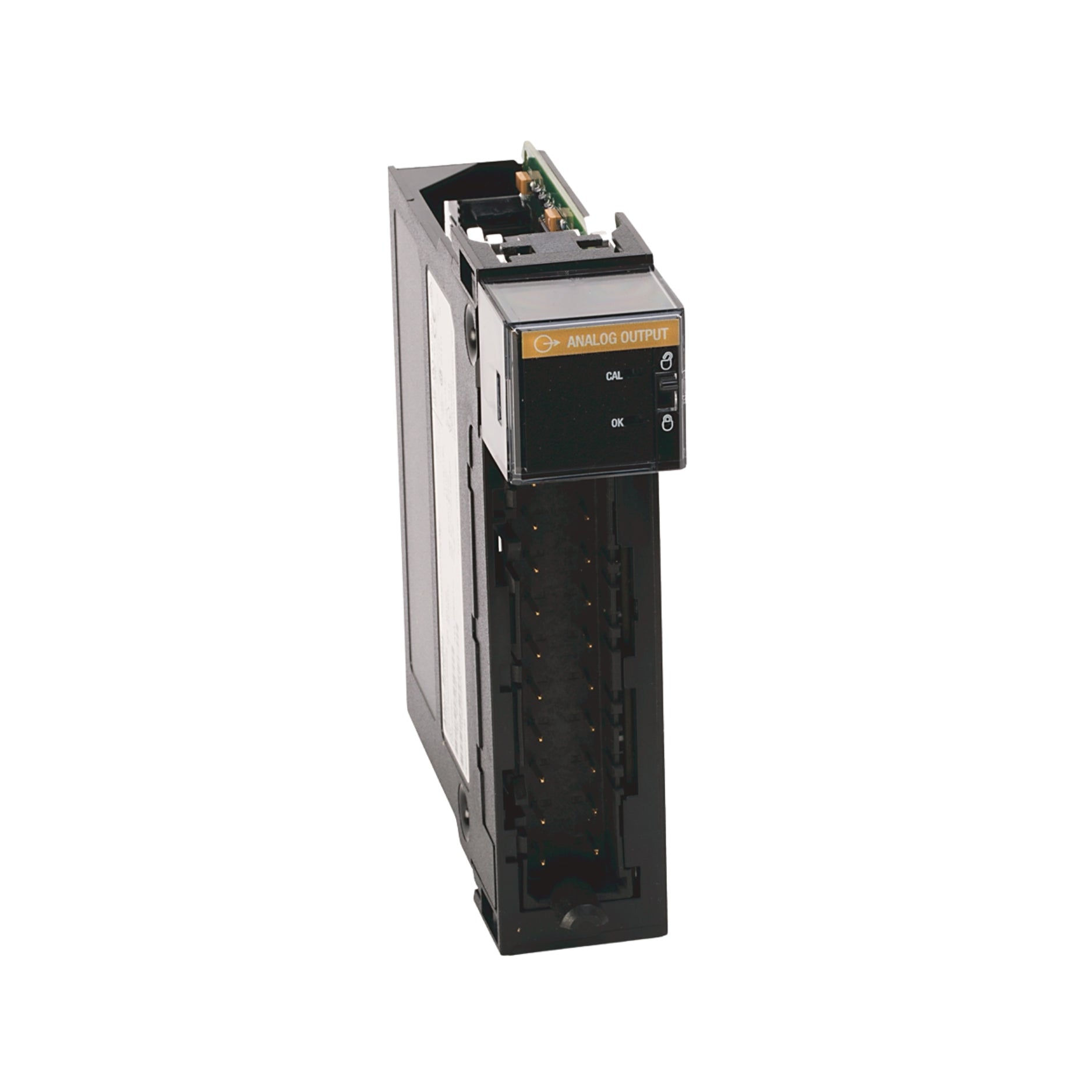

Allen-Bradley 1756-OF8K

Allen-Bradley 1756-OF8K | 8-Channel Analog Output Module – Current/Voltage, 20-Pin, Conformally Coated

Overview

The Allen-Bradley 1756-OF8K is an 8-point analog output module designed for the ControlLogix platform, supporting both current and voltage signals. Featuring a 20-pin connection and conformal coating, this module is built for reliability in harsh or high-moisture industrial environments.

This versatile module provides high-resolution analog signal output for precise control of actuators, drives, and other analog devices.

Key Features

• Channels: 8 analog outputs

• Signal Type: Current (0–20 mA, 4–20 mA), Voltage (±10V, 0–10V, etc.)

• Conformal Coating: Protection against dust, humidity, and corrosion

• Platform: Allen-Bradley ControlLogix

• Connector Type: 20-pin

• High Accuracy & Resolution – Ideal for precision applications

• Electronic Protection – Overvoltage and short-circuit safeguards

Technical Specifications

• Model: 1756-OF8K

• Output Channels: 8

• Signal Output: Current and voltage

• Resolution: 16-bit

• Connector: 20-pin

• Conformal Coating: Yes

• Backplane Current (5.1V): Approx. 210 mA

• Backplane Current (24V): Approx. 250 mA

• Operating Temp: 0°C to +60°C

• Mounting: ControlLogix chassis slot

Applications

• Precise Actuator Control – In voltage or current mode

• Industrial Automation – Analog interface for machinery

• Water & Wastewater Systems – Rugged build with conformal coating

• Chemical & Food Processing – Reliable analog output in harsh conditions

Why Choose the 1756-OF8K?

• Dual signal support – Use voltage or current per channel

• Conformal coating ensures long life in challenging environments

• Fully compatible with ControlLogix architecture

Order Now

In stock and ready to ship worldwide.

Return to our ControlLogix Controllers main category to explore all models and specifications in this family.

Visit our Allen-Bradley Industrial Automation Products master category for the complete range of controllers, drives, motors, HMIs, and accessories.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
