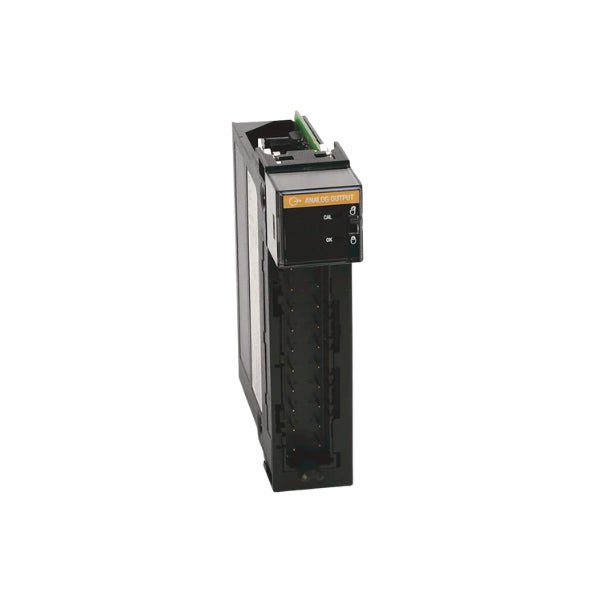

Allen-Bradley 1756-OF6VI Analog Output Module

Product Description:

The Allen-Bradley 1756-OF6VI is an analog output module designed for use in ControlLogix systems. This module provides six analog output channels, each configurable for either voltage or current output. It's used to control devices such as valves, actuators, and other analog input devices.

Key Features:

• Six Analog Output Channels: Provides multiple outputs for controlling various analog devices.
• Configurable Voltage or Current Output: Offers flexibility to match different application requirements.
• High Resolution: Provides precise analog output signals.
• ControlLogix Compatibility: Designed for seamless integration with ControlLogix controllers.
• Module-Defined Data Types: Automatically creates tags in Studio 5000 for easy programming and data access.

Technical Specifications:

• Product Type: Analog Output Module
• Catalog Number: 1756-OF6VI
• Series: ControlLogix
• Number of Outputs: 6
• Output Type: Voltage or Current (Configurable per channel)
• Voltage Range: (Specify from documentation, e.g., ±10V, 0-10V)
• Current Range: (Specify from documentation, e.g., 0-20mA, 4-20mA)
• Resolution: (Specify from documentation)
• Backplane Current Draw: (Specify from documentation)

Module-Defined Data Types:

When you add a 1756-OF6VI module to a ControlLogix project in Studio 5000 Logix Designer, the software automatically generates a set of tags based on the module's configuration. These are called "module-defined data types." They simplify programming by providing a structured way to access the module's input and output data.

For the 1756-OF6VI, you would typically see tags like these (the exact names might vary slightly depending on the version of Studio 5000):

• Local:Module:O.Data[0-5]: These tags represent the output values for each of the six channels. You write values to these tags to control the analog outputs.
• Local:Module:C.Configuration: This tag structure allows you to configure various module settings, such as the output type (voltage or current) for each channel, scaling, and fault handling.
• Local:Module:I.Status: This tag structure provides status information about the module, such as fault conditions and channel status.

Using these module-defined tags makes it much easier to write ladder logic or other program code to control the analog outputs and monitor the module's status.

Applications:

• Valve Control
• Actuator Control
• Variable Speed Drives (VSDs) Control
• Process Control
• Data Acquisition
