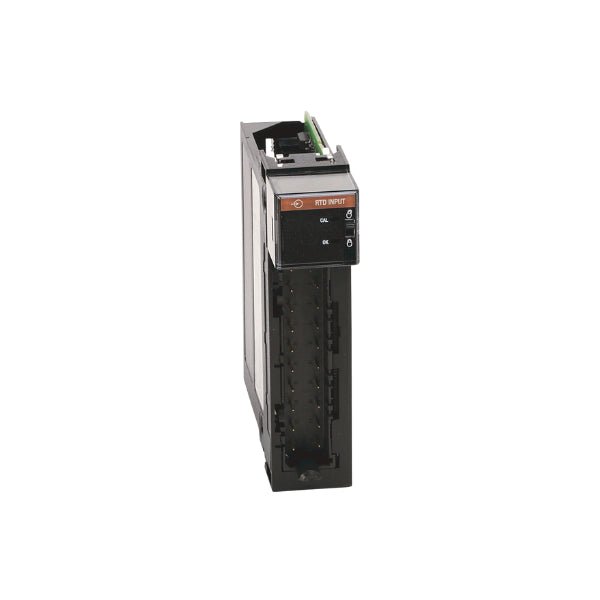

Allen-Bradley 1756-IR6I ControlLogix RTD Input Module | 6 Isolated Channels1
Condition: New
Warranty: 1 Year
Available
We deliver worldwide
sales@ddpartssolution.com
📞 +1 (689) 275-3558
Product Description:
The Allen-Bradley 1756-IR6I is a high-performance analog input module designed for use in ControlLogix systems.4 This module provides six individually isolated RTD (Resistance Temperature Detector) input channels, enabling precise and reliable temperature measurement in demanding industrial environments.5 The isolation feature protects your system from ground loops and electrical noise, ensuring accurate readings. Best of all, it's IN STOCK and ready to ship TODAY from DD Parts Solution.
Key Features and Specifications:
- 6 Individually Isolated RTD Inputs: Provides six independent channels for connecting RTD temperature sensors.6
- Isolation: Offers channel-to-channel and channel-to-backplane isolation for enhanced system protection and accurate measurements.
- High Noise Rejection: Provides excellent noise immunity with high normal mode and common mode rejection.
- Sigma-Delta Conversion: Employs a precise Sigma-Delta conversion method for accurate temperature readings.
- Software Configurable Keying: Offers flexibility in module configuration.
- ControlLogix Compatibility: Designed for seamless integration with ControlLogix systems.
- IN STOCK at DD Parts Solution: Order now for immediate shipment.
Technical Specifications:
- Catalog Number: 1756-IR6I
- Inputs: 6 individually isolated RTD7
- Current Draw @ 5.1V: 250 mA
- Current Draw @ 24V: 125 mA
- Total Backplane Power: 4.25 W
- Power Dissipation (Max): 4.3 W
- Thermal Dissipation: 14.66 BTU/hr
- Overvoltage Protection (Max): 24V AC/DC
- Normal Mode Noise Rejection: 60 dB at 60 Hz (Notch filter dependent)8
- Common Mode Noise Rejection: 120 dB @ 60 Hz | 100 dB @ 50 Hz
- Calibration Interval: 6 months
- Module Error: 0.54% of range
- Data Format: Integer mode (left justified, 2’s complement), IEEE 32-bit floating point
- Module Conversion Method: Sigma-Delta
- Isolation Voltage: 250V (continuous), basic insulation type, input channels-to-backplane, and input channel-to-channel
- Module Keying: Electronic, software configurable
Applications:
- Temperature monitoring and control in industrial processes
- Applications requiring precise and stable temperature measurements
- Environments with high electrical noise or potential ground loops
Benefits:
- Precise Temperature Measurement: Provides accurate and reliable temperature readings.
- Enhanced System Protection: Isolation protects the system from electrical noise and ground loops.
- High Noise Immunity: Ensures accurate readings even in noisy industrial environments.
- Flexible Configuration: Software configurable keying provides flexibility in system design.
- Seamless System Integration: Integrates seamlessly with ControlLogix systems.
Why Choose the 1756-IR6I from DD Parts Solution?
- Immediate Availability (IN STOCK): Minimizes downtime and gets your system running quickly.
- Competitive Pricing: We offer competitive prices.
- Fast and Reliable Shipping: We understand the importance of prompt delivery.
- Expert Customer Service: Our knowledgeable team is here to help.
- USA Based: Providing local support and fast delivery within the United States.
- Trusted Supplier: DD Parts Solution is a trusted supplier.
