Allen‑Bradley 1326AB‑B430G‑21

Allen‑Bradley 1326AB‑B430G‑21

Overview

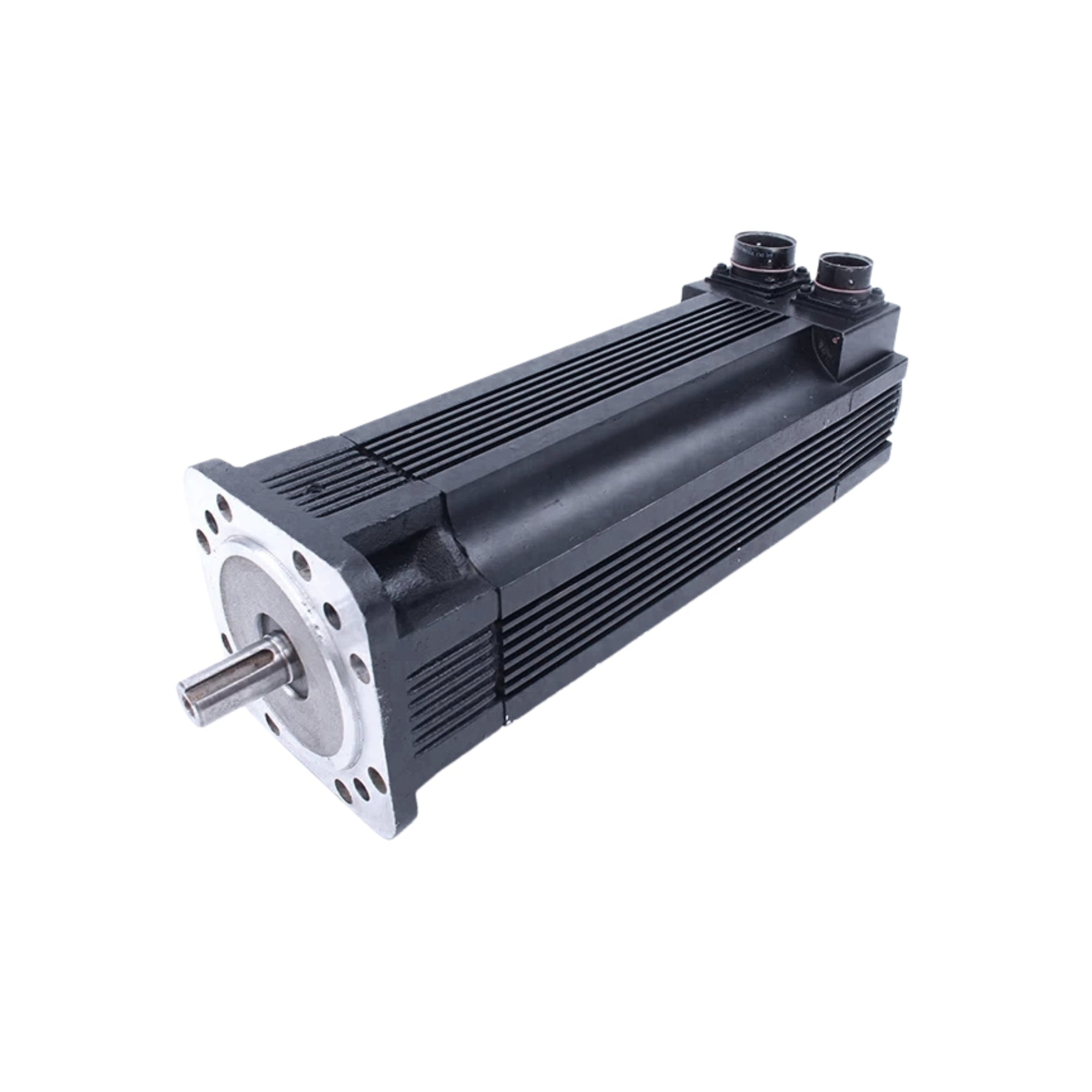

The Allen‑Bradley 1326AB‑B430G‑21 is a Torque Plus series AC servo motor designed for high-speed, high-precision industrial applications. Operating at 460 V with a 6.44 Nm continuous torque output and rated for 5000 RPM, this motor is engineered with a compact frame size and optimized magnet stack for demanding motion control systems. It features resolver feedback, an IEC metric flange, and a robust IP65-rated housing.

Key Features

• 460 V AC input, 3-phase

• 6.44 Nm continuous torque

• 5000 RPM rated speed

• Frame size 4 (108 mm diameter, 115 mm bolt center)

• 76.2 mm (3.0 in.) magnet stack length

• No holding brake

• Resolver feedback for closed-loop control

• IP65 enclosure for industrial environments

• IEC metric flange with keyway

• Aluminum housing with UL insulation system

• Compatible with 1394, Ultra3000, and Kinetix drives

Technical Specifications

• Model: 1326AB‑B430G‑21

• Voltage Rating: 460 V AC, 3-phase

• Continuous Torque: 6.44 Nm

• Rated Speed: 5000 RPM

• Peak Torque: ~18.0 Nm

• Magnet Stack Length: 76.2 mm (3.0 in.)

• Feedback Type: Resolver

• Brake: None

• Frame Size: 108 mm diameter, 115 mm bolt center

• Enclosure Protection: IP65

• Mounting Type: IEC metric flange with keyway

• Housing Material: Aluminum

• Insulation Class: UL-recognized

• Weight: Approximately 13.5 kg

Applications

• High-speed robotics

• Packaging machinery

• Servo-based cutting and assembly systems

• Precision conveyor systems

• Motion control in demanding industrial environments

Why Choose the 1326AB‑B430G‑21

• Higher speed rating (5000 RPM) ideal for dynamic applications

• Optimized torque-to-size ratio with 76.2 mm stack

• Resolver feedback for accurate, closed-loop control

• No-brake version for systems with external holding devices

• Built to Allen-Bradley quality standards for long-term reliability

Order Now

The Allen‑Bradley 1326AB‑B430G‑21 AC servo motor is available and ships worldwide. Ideal for high-speed automation systems where precision and durability are essential.
