Allen-Bradley 1326AB-B430E-21

Allen-Bradley 1326AB-B430E-21

Overview

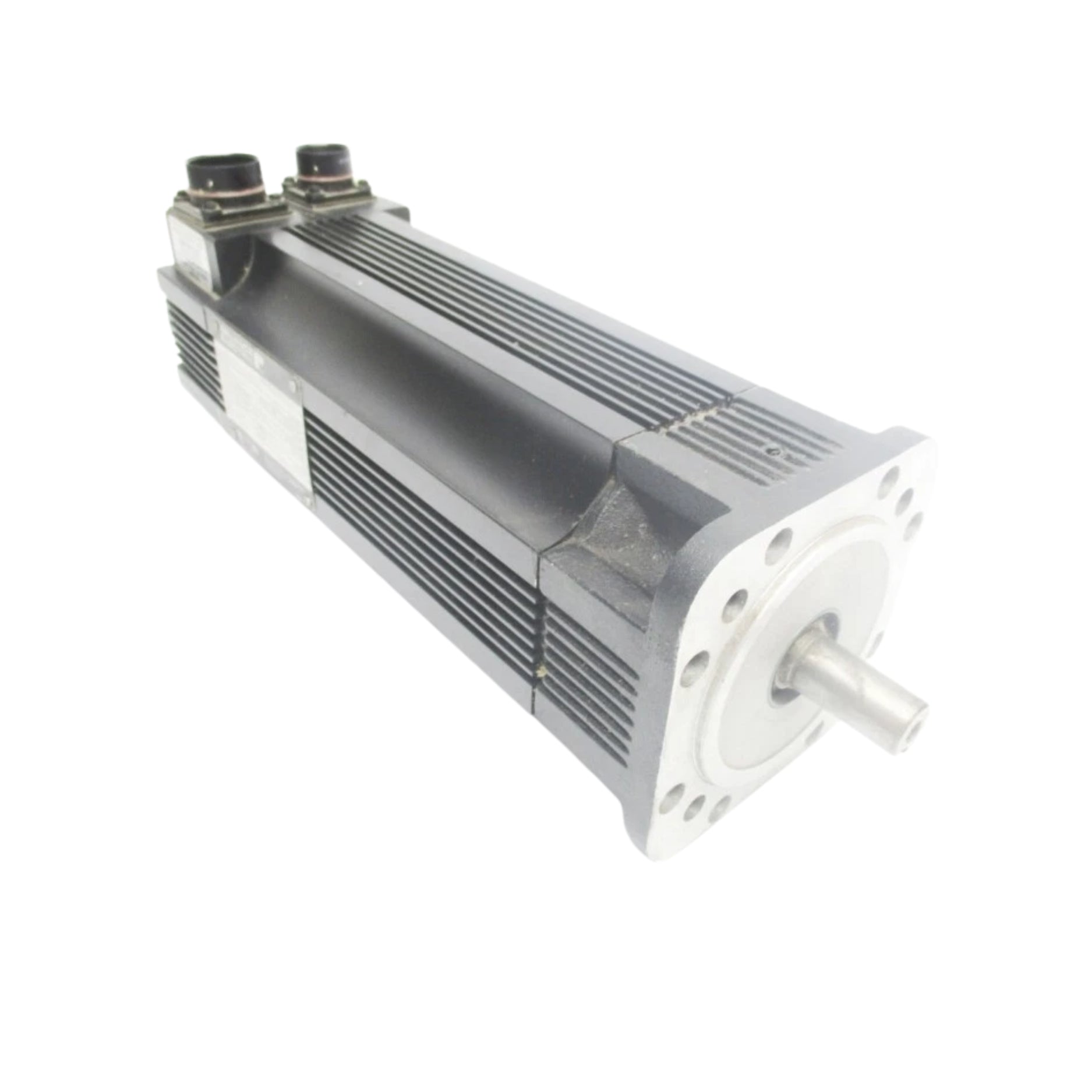

The Allen-Bradley 1326AB-B430E-21 is a high-performance, three-phase brushless AC servo motor designed for industrial automation and motion control systems. Delivering 6.6 Nm of continuous torque and operating at speeds up to 3000 RPM, this model is well-suited for integration with Allen-Bradley 1394, Ultra3000, and Kinetix drives. It features resolver feedback, a robust aluminum housing, and IP65 protection for demanding environments.

Key Features

• 3-phase AC input, 460 V operation

• 6.6 Nm continuous torque with ~19.7 Nm peak

• 3000 RPM rated speed

• Resolver feedback for precision control

• IP65 protection rating

• UL insulation system

• IEC metric flange mount

• Rugged aluminum construction

• Designed for use with legacy and modern Allen-Bradley drives

Technical Specifications

• Model: 1326AB-B430E-21

• Voltage Rating: 460 V AC, 3-phase

• Continuous Torque: 6.6 Nm

• Peak Torque: Approximately 19.7 Nm

• Rated Speed: 3000 RPM

• Power Output: Approximately 1.4 kW

• Feedback Type: Resolver

• Enclosure Protection: IP65

• Frame Size: 108 mm diameter

• Housing Material: Aluminum

• Mounting Type: IEC metric flange with keyway

• Insulation Class: UL recognized

• Motor Weight: Approximately 14.5 kg (32 lb)

Applications

• CNC machinery

• Industrial robotics

• Packaging and labeling lines

• Precision positioning systems

• Material handling equipment

• Motion control platforms using Allen-Bradley 1394 or Ultra3000

Why Choose the 1326AB-B430E-21

• Delivers reliable torque and speed for precision applications

• Built to withstand industrial conditions with IP65 protection

• Compatible with both legacy and newer Allen-Bradley motion systems

• Resolver feedback ensures accurate, closed-loop control

• Long-lasting performance in demanding automation setups

Order Now

The Allen-Bradley 1326AB-B430E-21 AC servo motor is available and ships worldwide. Ideal for supporting or retrofitting existing Allen-Bradley automation systems.

Looking for more options?

Explore our complete selection of Allen-Bradley 1326AB Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
