Allen-Bradley 1326AB-B430E-21-K4

Allen-Bradley 1326AB-B430E-21-K4

Overview

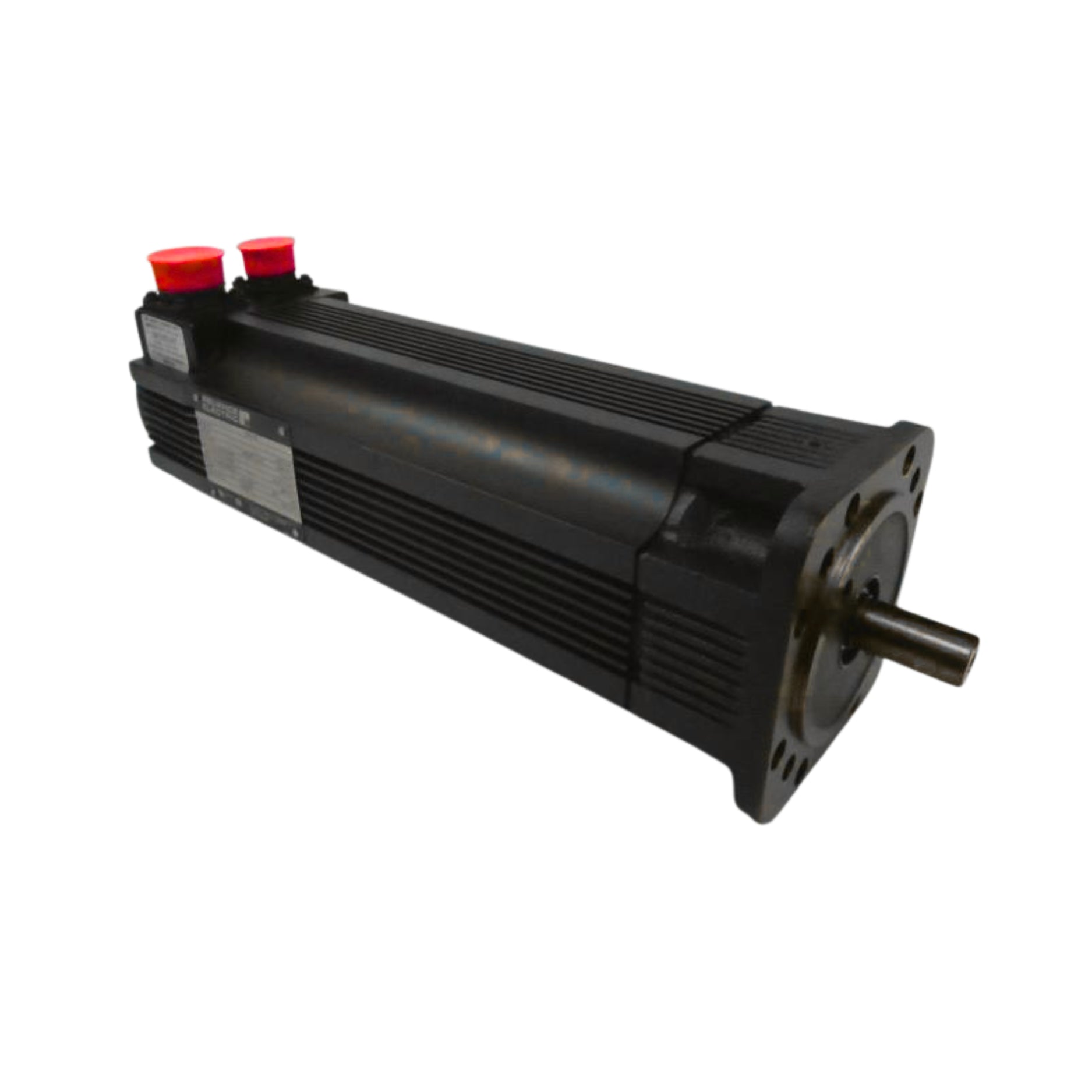

The Allen-Bradley 1326AB-B430E-21-K4 is a rugged, high-performance AC servo motor from the Torque Plus series, equipped with an integrated brake. Operating at 460 V, this motor delivers 6.6 Nm of continuous torque and reaches speeds up to 3000 RPM. Featuring resolver feedback and an IP65-rated enclosure, it is ideal for precision automation and motion control in harsh industrial environments.

Key Features

• 3-phase AC input, 460 V

• Continuous torque: 6.6 Nm

• Peak torque: ~19.7 Nm

• Speed: 3000 RPM

• Built-in brake for safety and controlled stopping

• Resolver feedback for accurate position sensing

• IP65-rated enclosure

• Aluminum housing with IEC flange

• UL-recognized insulation system

• Designed for Allen-Bradley 1394, Kinetix, and Ultra3000 drives

Technical Specifications

• Model: 1326AB-B430E-21-K4

• Voltage Rating: 460 V AC, 3-phase

• Continuous Torque: 6.6 Nm

• Peak Torque: Approximately 19.7 Nm

• Rated Speed: 3000 RPM

• Brake: Integrated holding brake

• Power Output: Approximately 1.4 kW

• Feedback Type: Resolver

• Enclosure Protection: IP65

• Frame Size: 108 mm diameter

• Mounting Type: IEC metric flange

• Housing Material: Aluminum

• Insulation Class: UL-recognized

• Motor Weight: Approximately 15.5 kg (including brake)

Applications

• CNC machinery

• Robotics and pick-and-place systems

• Automated packaging lines

• Precision motion control with emergency stop needs

• Systems requiring secure hold in power-off state

Why Choose the 1326AB-B430E-21-K4

• Built-in brake ensures safety and control in critical applications

• Compact size with high torque-to-weight ratio

• Resolver feedback supports closed-loop accuracy

• IP65 protection ensures durability in demanding environments

• Compatible with widely used Allen-Bradley servo drives

Order Now

The Allen-Bradley 1326AB-B430E-21-K4 servo motor with brake is available and ships worldwide. Ideal for applications where secure stopping and precision are critical.
