ABB S203-C10 | 2CDS253001R0104

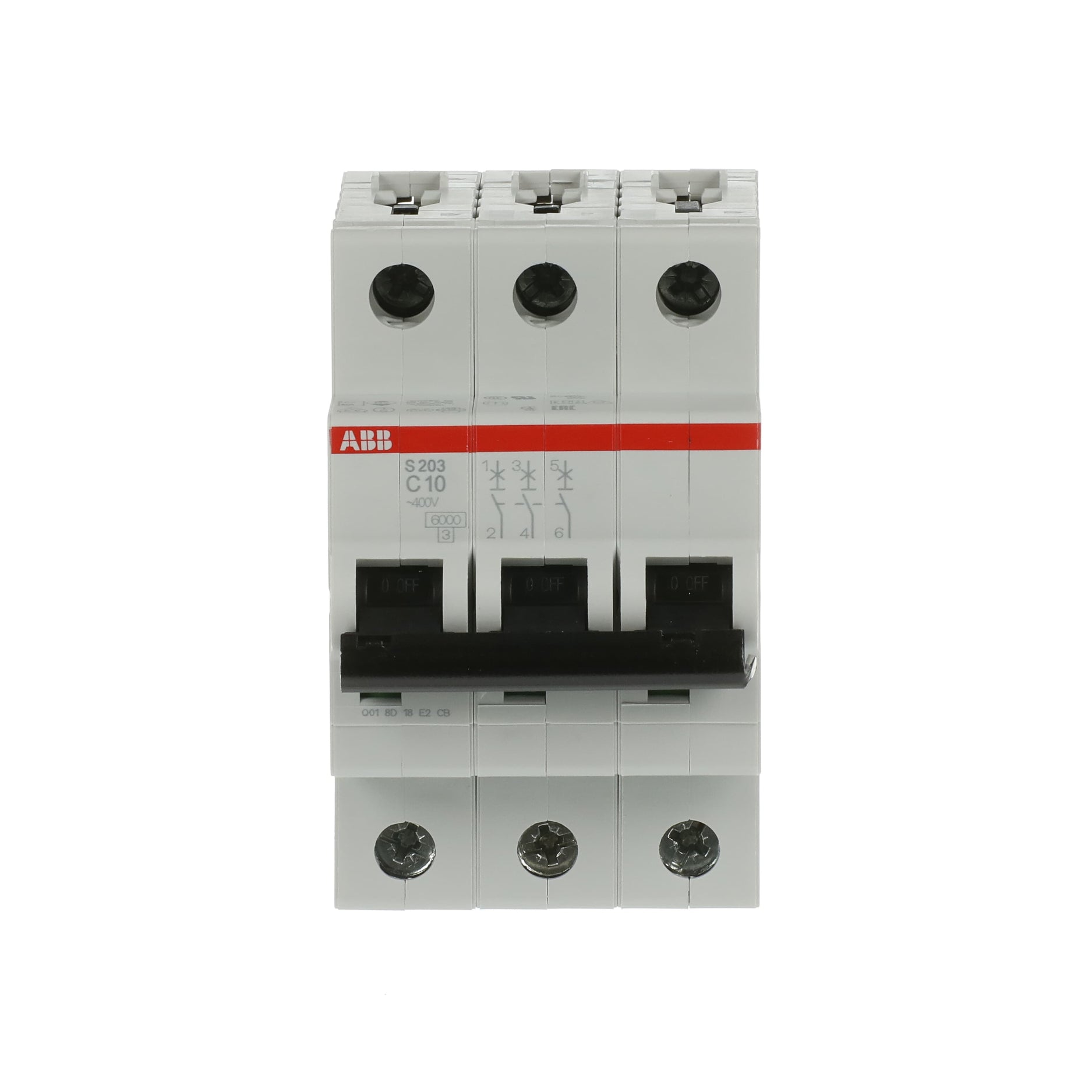

ABB S203-C10 | 10 A Miniature Circuit Breaker, 3-Pole, C Curve

Global Commercial Alias: S203-C10
Product ID: 2CDS253001R0104
ABB Type Designation: S203-C10
Catalog Description: Miniature Circuit Breaker 3P C 10 A, 6 kA, IEC/EN 60898-1

Overview

The ABB S203-C10 is a 3-pole miniature circuit breaker (MCB) rated at 10 A with a C trip characteristic. It provides reliable protection for residential, commercial, and industrial electrical installations, safeguarding circuits against overloads and short circuits.

Key Features

• Poles: 3

• Rated Current: 10 A

• Tripping Curve: C (5–10 In)

• Rated Breaking Capacity: 6 kA (IEC/EN 60898-1)

• Rated Voltage: 400/415 V AC

• Frequency: 50/60 Hz

• Terminal Type: Screw terminals

• Mounting: DIN rail (35 mm)

• Position: Horizontal or vertical installation

• Isolation Function: Yes, in accordance with IEC/EN 60898-1

• Contact Position Indicator: Red/Green window for on/off status

Technical Specifications

• Model Number: S203-C10

• Standards: IEC/EN 60898-1

• Endurance: 20,000 operations (mechanical)

• Tightening Torque: 2 Nm

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Dimensions (H x W x D): 88 mm x 52.5 mm x 69 mm

• Weight: Approx. 0.35 kg

• Degree of Protection: IP20 (when installed)

Applications

• Distribution boards in residential buildings

• Commercial electrical systems

• Industrial control panels

• Protection for lighting, outlets, and branch circuits

Product Description

The ABB S203-C10 delivers robust and efficient circuit protection with fast response to fault conditions. It is designed for seamless integration in various applications, combining reliability, long service life, and ease of installation.

Why Choose ABB S203-C10?

• High-quality and durable protection

• Safe operation with visual status indicator

• Easy DIN rail mounting

• Complies with global standards

Order Now

Available for worldwide delivery.
