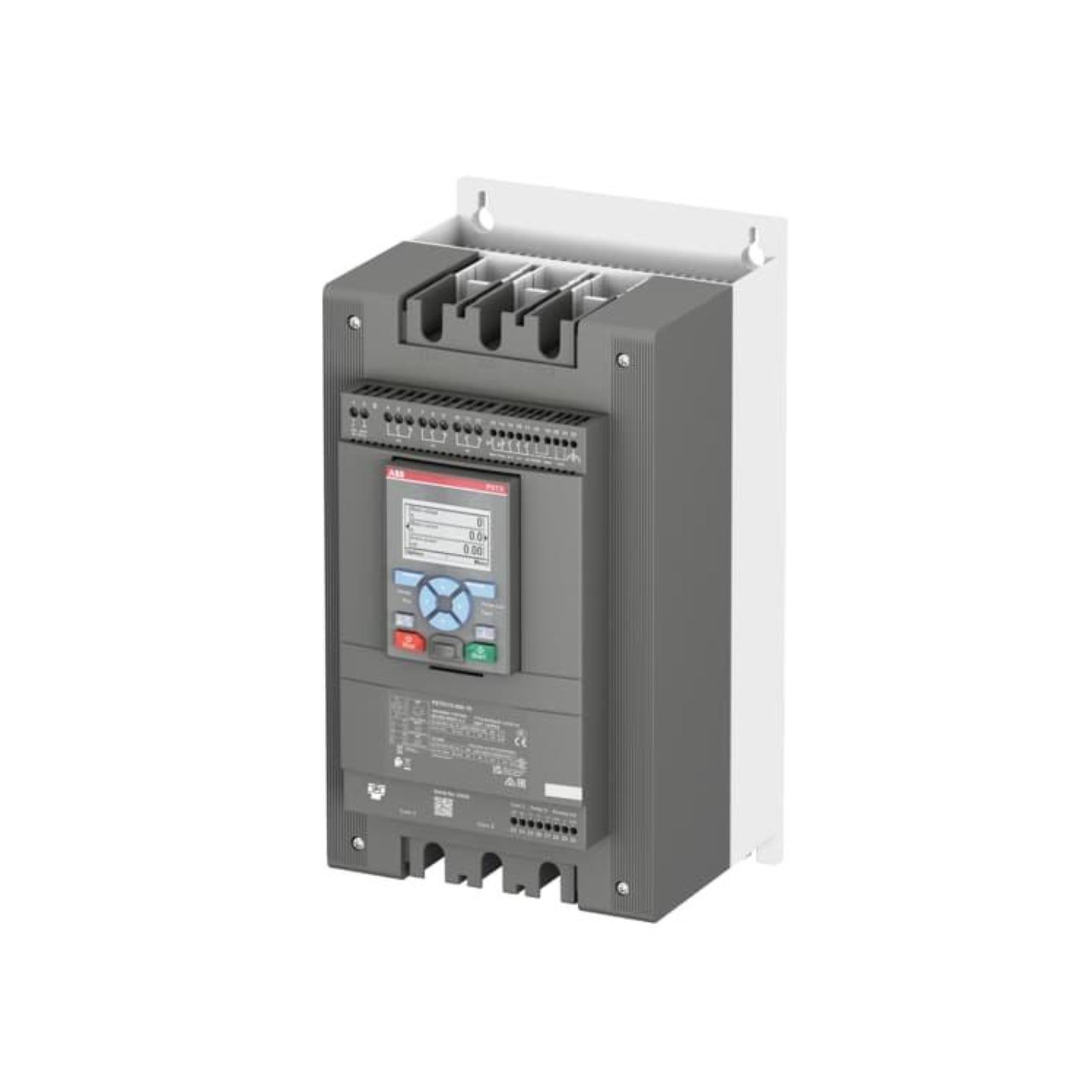

ABB PSTX170-600-70 | 1SFA898109R7000 | Soft Starter 90 kW, 170 A, 500-600V

ABB PSTX170-600-70 | Soft Starter 90 kW, 170 A, 500-600V

Global Commercial Alias: PSTX170-600-70
Product ID: 1SFA898109R7000
ABB Type Designation: PSTX170-600-70
Catalog Description: Softstarter PSTX170-600-70, 170 A, 500-600 V, 90 kW @ 400 V, 3-phase

Overview

The ABB PSTX170-600-70 is a 170 A advanced soft starter engineered for high-performance motor control in demanding industrial settings. With support for 500–600 V AC 3-phase systems, it delivers smooth motor startup, torque control, and comprehensive protection features.

Key Features

• Motor Power: Up to 90 kW (400 V), 110 kW (500 V)

• Rated Current: 170 A

• Main Voltage: 208–690 V AC, 3-phase

• Control Voltage: 100–250 V AC/DC

• Frequency: 50/60 Hz

• Protection Class: IP20 (open type)

• Display: Graphical LCD with keypad

• Built-in Bypass: Yes, integrated

• Communication: Modbus RTU, optional fieldbus adapters

• Motor Protection: Overload, phase loss, stall, locked rotor

• Ramp Functions: Soft start/stop, torque control

• Temperature Monitoring: PTC input supported

Technical Specifications

• Model Number: PSTX170-600-70

• Rated Insulation Voltage: 690 V

• Operating Temp: -25°C to +60°C

• Installation: DIN rail or panel mount

• Dimensions (H x W x D): 445 mm x 210 mm x 242 mm

• Weight: Approx. 13.5 kg

• Certifications: CE, UL, CSA, CCC

Applications

• Water & Wastewater

• HVAC Systems

• Mining and Cement

• Pulp & Paper

• Oil & Gas

• General Industrial Motors

Product Description

The ABB PSTX170-600-70 combines cutting-edge motor protection with flexible control options. Its intuitive interface, built-in bypass, and adaptive algorithms minimize mechanical stress and electrical peaks. Designed for reliability in harsh environments, it ensures efficiency and safety in all motor starting applications.

Why Choose ABB PSTX170-600-70?

• Smooth and safe motor startup

• Advanced motor protection and diagnostics

• Built-in bypass for energy savings

• Flexible control and communication options

Order Now

Available for worldwide delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
