ABB DS202C

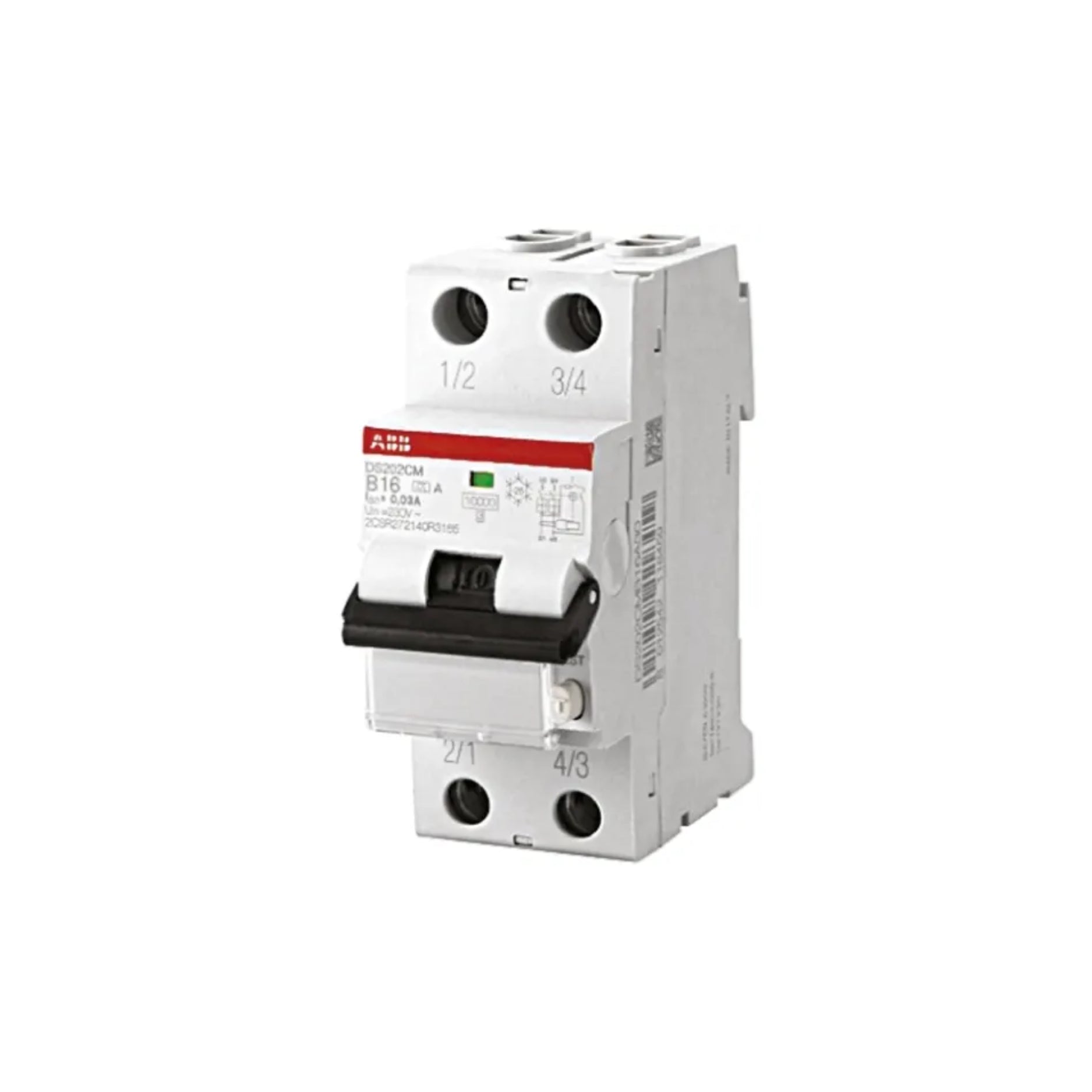

ABB DS202C | 2-Pole RCBO (Residual Current Breaker with Overcurrent Protection)

Overview

The ABB DS202C is a high-performance 2-pole RCBO (Residual Current Circuit Breaker with Overcurrent Protection) designed to provide both short-circuit and leakage current protection. This device is essential for ensuring electrical safety in residential, commercial, and industrial environments by preventing electric shocks and fire hazards.

Key Features

• Model: ABB DS202C
• Number of Poles: 2
• Rated Current: Available in multiple ratings (e.g., 6A, 10A, 16A, 25A, etc.)
• Tripping Curve: Type C (moderate inrush current applications)
• Rated Residual Current (IΔn): 30mA / 100mA / 300mA (depending on variant)
• Breaking Capacity: 6kA / 10kA
• Voltage Rating: 230/400V AC
• Mounting: DIN rail (35mm)
• Terminal Type: Screw terminals for secure connections
• Protection Class: IP20
• Compliance: IEC/EN 61009-1

Technical Specifications

• Model Number: ABB DS202C
• Rated Current Options: 6A, 10A, 16A, 25A, 32A, etc.
• Rated Voltage: 230/400V AC
• Tripping Characteristic: Type C
• Number of Poles: 2
• Breaking Capacity: 6kA / 10kA
• Residual Current Sensitivity: 30mA / 100mA / 300mA
• Frequency: 50/60Hz
• Mounting Type: DIN rail 35mm
• Terminal Capacity: Up to 25mm² wire cross-section

Applications

• Residential and Commercial Buildings – Ensures protection against electric shocks and circuit overloads.
• Industrial Electrical Panels – Provides safety in machines and distribution networks.
• Medical and Data Centers – Protects sensitive equipment from electrical faults.
• Power Distribution Boards – Ideal for installations requiring leakage and overcurrent protection.

The ABB DS202C is an advanced RCBO that offers superior protection against both leakage currents and overcurrent faults, ensuring electrical safety and reliability.
