ABB ACS880-01-430A-3

ABB ACS880-01-430A-3

Overview

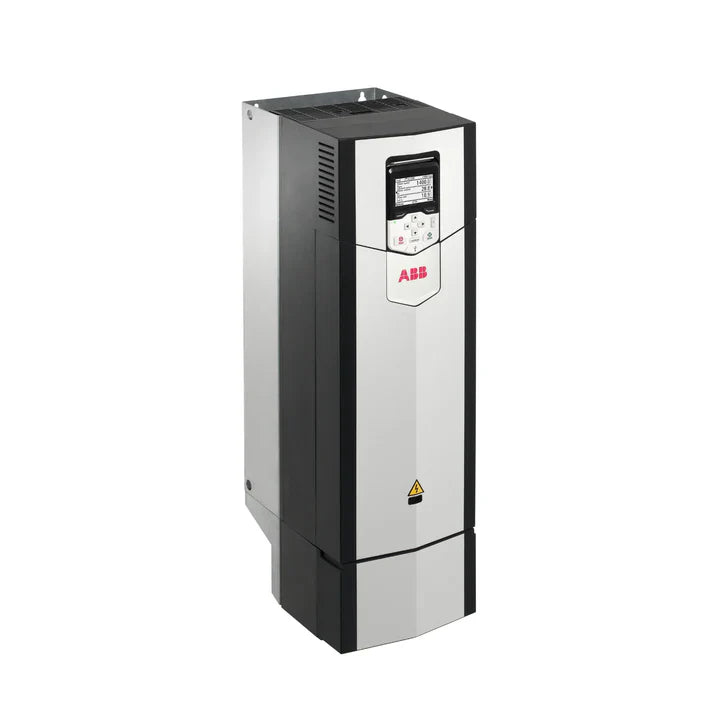

The ABB ACS880-01-430A-3 is a wall-mounted low-voltage AC industrial drive designed for 380–415 V, 3-phase systems, delivering up to 250 kW output power with a rated current of 430 A. Built on the R9 frame, this drive provides reliable and efficient performance for the most demanding heavy-duty applications in oil and gas, mining, metals, cement, marine, pulp and paper, water treatment, and power generation.

It features IP21 / NEMA Type 1 protection, advanced harmonic filtering with a built-in choke, and compatibility with major industrial fieldbus protocols for maximum flexibility.

Key Features

• Power Rating: 250 kW (Normal Duty) / 200 kW (Light & Heavy Duty)

• Output Current: 430 A (ND) / 400 A (Light OL) / 363 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R9

• Protection Class: IP21, NEMA Type 1

• Altitude: Operates up to 4000 m

• Noise Level: 70 dB(A)

• Efficiency: IE2 class performance

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000108038

• Global Alias: ACS880-01-430A-3

• EAN: 6438177555216

• HS Code: 850440 (Static Converters)

• Weight: 95.0 kg (209.44 lb)

• Dimensions (W × H × D): 380 × 955 × 413 mm

• Package Size: 1145 × 485 × 654 mm (1 case)

• I/O: 2 analog inputs, 2 analog outputs, 6 digital inputs, 2 digital outputs

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 250 kW (ND) / 200 kW (LD & HD)

• Apparent Power Output: 298 kVA

• Power Consumption: 5797 W

• Standby Loss: 52 W

Applications

• Heavy industrial conveyors, crushers, and mixers

• Pumps, fans, and compressors in large-scale plants

• Marine propulsion and auxiliary drives

• Cranes, hoists, and elevators for lifting operations

• Process automation in cement, steel, pulp & paper, and power industries

Why Choose the ABB ACS880-01-430A-3

• High-power 250 kW motor control with 430 A output

• Built-in choke for harmonic filtering and energy efficiency

• Flexible connectivity with all major fieldbus systems

• Robust R9 frame design suitable for demanding industrial conditions

• Trusted ABB performance for heavy-duty environments
