Overview

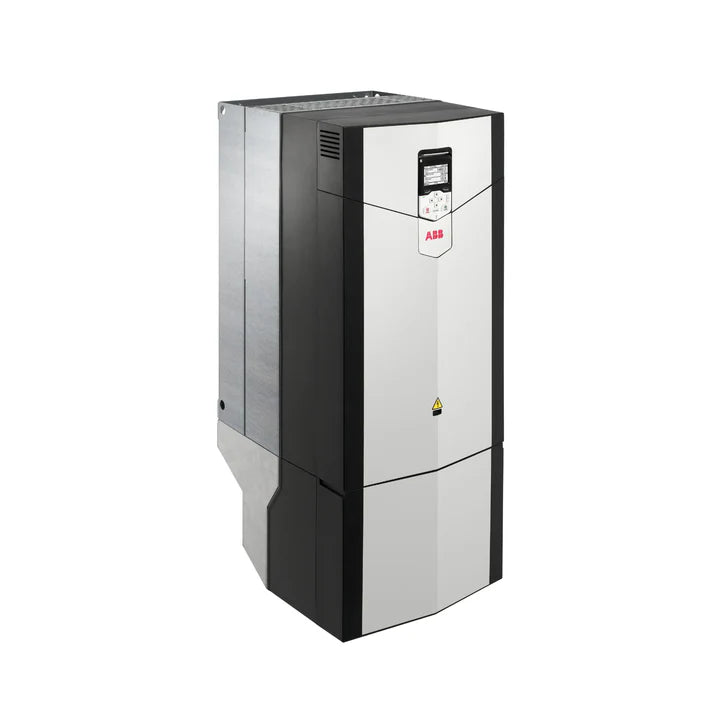

The ABB ACS880-01-363A-3 is a wall-mounted industrial low-voltage AC drive engineered for 380–415 V, 3-phase systems, delivering 200 kW output power with 363 A rated current. Built on the R9 frame, this powerful drive provides robust performance, efficiency, and precise motor control for the most demanding industries, including oil and gas, mining, metals, cement, marine, pulp and paper, and water treatment.

Designed for normal and heavy-duty use, it comes with IP21 / NEMA Type 1 protection and a built-in choke for harmonic filtering, ensuring energy-efficient operation while reducing electrical distortion.

Key Features

• Power Rating: 200 kW (Normal Duty) / 160 kW (Heavy Duty)

• Output Current: 363 A (ND) / 345 A (Light OL) / 293 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R9

• Protection Class: IP21, NEMA Type 1

• Altitude Capability: Up to 4000 m

• Noise Level: 70 dB(A)

• Efficiency Class: IE2

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000108037

• Global Alias: ACS880-01-363A-3

• EAN: 6438177555148

• HS Code: 850440 (Static Converters)

• Weight: 95.0 kg (209.44 lb)

• Dimensions (W × H × D): 380 × 955 × 413 mm

• Package Size: 1145 × 485 × 654 mm (1 case)

• I/O: 2 analog in, 2 analog out, 6 digital in, 2 digital out

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 200 kW (ND) / 160 kW (HD)

• Apparent Power Output: 251 kVA

• Power Consumption: 4688 W

• Standby Losses: 83 W

Applications

• Heavy conveyor and mixing systems in cement and mining

• Pumps, compressors, and fans in large-scale industrial plants

• Marine propulsion and auxiliary systems

• Cranes, hoists, and elevators

• Process automation in metals, pulp & paper, and power plants

Why Choose the ABB ACS880-01-363A-3

• High-capacity 200 kW motor control with reliable heavy-duty performance

• R9 frame design for stability in demanding environments

• Built-in choke for harmonic filtering and energy optimization

• Flexible connectivity with all major industrial fieldbus protocols

• Backed by ABB’s global reputation for industrial automation excellence
