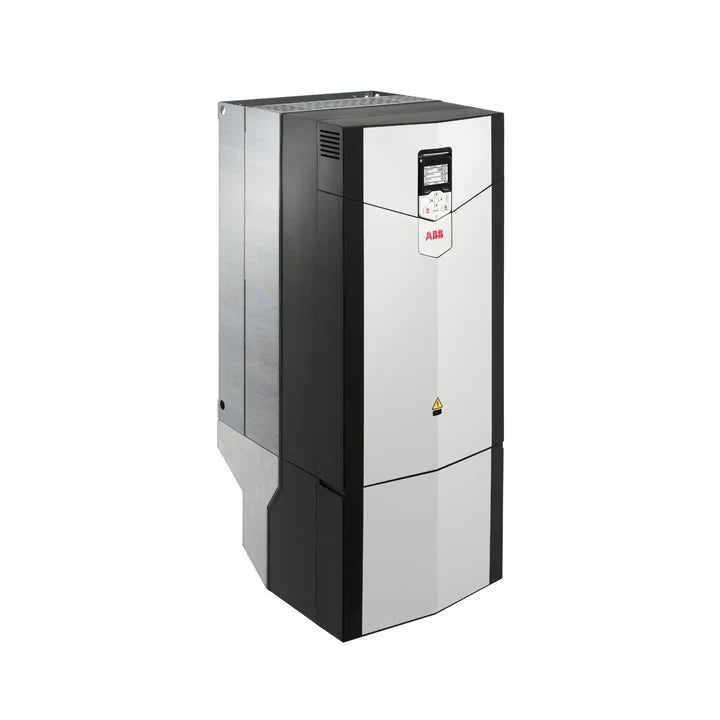

ABB ACS880-01-361A-5

ABB ACS880-01-361A-5 – 3AUA0000082215

Overview

The ABB ACS880-01-361A-5 is a powerful low-voltage AC industrial single drive engineered for heavy-duty performance. With a rating of 200 kW (300 HP) and 361 A at 500 V, this drive is ideal for demanding industrial processes across sectors such as oil & gas, mining, metals, cement, power generation, pulp & paper, marine, and automotive.

Designed for wall-mounting with a compact R9 frame size, the ACS880-01 ensures easy installation and commissioning. It includes built-in features such as a choke for harmonic filtering and offers expansion options including brake chopper, EMC filter, functional safety, I/O extensions, and multiple communication adapters.

Key Features

• Motor Power: 200 kW (300 HP)

• Rated Current: 361 A

• Input Voltage: 380–500 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R9

• Protection Class: IP21 (standard), IP55 optional

• Enclosure: NEMA Type 1

• Efficiency Level: IE2

• Built-in choke for harmonic filtering

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

• Options: brake chopper, EMC filter, external output filters, I/O extensions

Technical Specifications

• Global Commercial Alias: ACS880-01-361A-5

• Product ID: 3AUA0000082215

• EAN: 6438177555124

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 200 kW

  • Heavy Duty: 200 kW

• Output Current:

  • Normal Duty: 361 A

  • Heavy Duty: 302 A

• Apparent Power Output: 313 kVA

• Power Consumption: 4781 W

• Standby Loss: 118 W

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 70 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 95 kg (209.4 lb)

• Height: 955 mm (37.6 in)

• Width: 380 mm (15.0 in)

• Depth: 413 mm (16.3 in)

Applications

• Oil & gas and chemical plants

• Mining, metals, and cement industries

• Power generation and marine operations

• Pulp & paper and water treatment

• Automotive and material handling

• Cranes, conveyors, fans, mixers, pumps, compressors, and test benches

Why Choose the ABB ACS880-01-361A-5

• High power capacity in a compact wall-mounted design

• Flexible installation with cabinet option

• Wide communication protocol compatibility

• Integrated choke reduces harmonics for cleaner operation

• Rugged design with IP55 option for harsh industrial environments

Order Now

The ABB ACS880-01-361A-5 is available and ships worldwide.
