ABB ACS880-01-240A-5

ABB ACS880-01-240A-5 – 3AUA0000090445

Overview

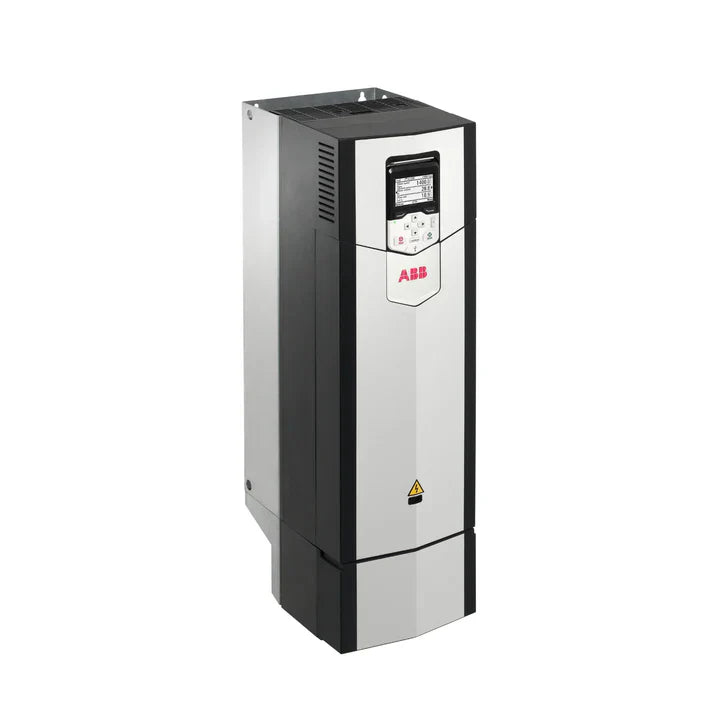

The ABB ACS880-01-240A-5 is a powerful low-voltage AC industrial wall-mounted single drive designed for high-demand applications. With a power rating of 132 kW (200 HP) and 240 A at 500 V, this R8 frame drive ensures precise motor control, efficiency, and reliability in industries such as oil & gas, mining, metals, cement, power generation, pulp & paper, marine, and automotive.

Part of the versatile ACS880-01 family, this model is engineered for easy wall installation, with an optional cabinet mount for flexibility. It features a compact, robust design with IP21 protection as standard and IP55 as an option, making it suitable for most environments. Built-in components such as a choke for harmonic filtering reduce the need for external devices.

Key Features

• Motor Power: 132 kW (200 HP)

• Rated Current: 240 A

• Input Voltage: 380–500 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R8

• Enclosure: IP21 (NEMA Type 1), IP55 optional

• Efficiency Level: IE2

• Standard choke for harmonic filtering

• Options: brake chopper, EMC filter, functional safety, I/O extensions

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

Technical Specifications

• Global Commercial Alias: ACS880-01-240A-5

• Product ID: 3AUA0000090445

• EAN: 6438177554943

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 132 kW

  • Heavy Duty: 110 kW

• Output Current:

  • Normal Duty: 240 A

  • Heavy Duty: 180 A

• Apparent Power Output: 208 kVA

• Power Consumption: 2912 W

• Standby Loss: 70 W

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 68 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 68 kg (149.9 lb)

• Height: 965 mm (38.0 in)

• Width: 300 mm (11.8 in)

• Depth: 386 mm (15.2 in)

• Packaging Dimensions: 1145 × 654 × 485 mm

Applications

• Oil & gas and chemical industries

• Mining, metals, and cement plants

• Power generation and marine operations

• Water and wastewater treatment plants

• Automotive and pulp & paper industries

• Cranes, winches, conveyors, mixers, pumps, fans, and compressors

Why Choose the ABB ACS880-01-240A-5

• High-performance drive for demanding heavy-duty applications

• Flexible wall or cabinet-mounted installation

• Built-in choke reduces harmonic distortion

• Wide communication compatibility for seamless integration

• Reliable operation with optional IP55 for harsh environments

Order Now

The ABB ACS880-01-240A-5 is available and ships worldwide.
