ABB ACS880-01-180A-5

ABB ACS880-01-180A-5 – 3ABD00037858-D

Overview

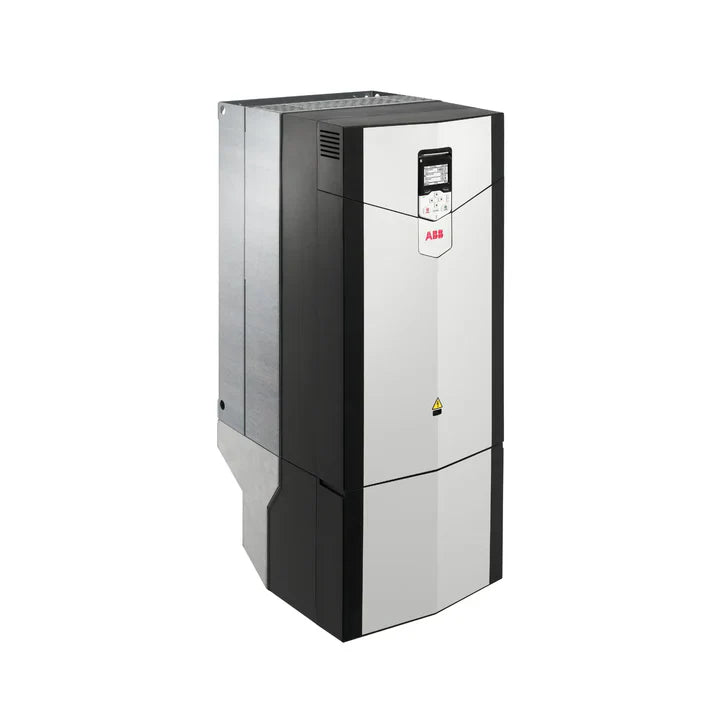

The ABB ACS880-01-180A-5 is a high-power low-voltage AC industrial single drive designed for demanding applications. Rated at 110 kW (150 HP) and 180 A at 500 V, this R7 frame unit delivers precise motor control and efficiency across multiple industries, including oil & gas, mining, metals, cement, power plants, marine, pulp & paper, and automotive.

With compact wall-mounting capability and cabinet installation options, the ACS880-01 series provides maximum flexibility. Standard features include a built-in choke for harmonic filtering, with expansion options such as brake chopper, EMC filter, functional safety, and I/O extensions.

Key Features

• Motor Power: 110 kW (150 HP)

• Rated Current: 180 A

• Input Voltage: 380–500 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R7

• Protection Class: IP21 (standard), IP55 optional

• Enclosure: NEMA Type 1

• Efficiency Level: IE2

• Built-in choke for harmonic filtering

• Optional brake chopper, EMC filter, and communication adapters

• Communication Protocols: CAN, Modbus, PROFIBUS, Profinet, DeviceNet, PROFIsafe

Technical Specifications

• Global Commercial Alias: ACS880-01-180A-5

• Product ID: 3ABD00037858-D

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 110 kW

  • Heavy Duty: 90 kW

• Output Current:

  • Normal Duty: 180 A

  • Heavy Duty: 156 A

• Dimensions (W × H × D): 284 × 880 × 365 mm

• Net Weight: 55 kg

• Packaging Dimensions: 970 × 600 × 380 mm

• Operating Humidity: 5–95%

• Cooling: Air-cooled

Applications

• Mining and metals processing

• Oil & gas and chemical plants

• Cement and power generation

• Marine and water treatment

• Automotive and pulp & paper industries

• Cranes, conveyors, pumps, fans, mixers, and compressors

Why Choose the ABB ACS880-01-180A-5

• Compact wall-mounted design with high power capacity

• Scalable options with safety and communication add-ons

• Built for demanding environments with IP55 upgrade available

• Energy-efficient design for reduced operating costs

• Flexible integration with multiple fieldbus systems

Order Now

The ABB ACS880-01-180A-5 is available and ships worldwide.
