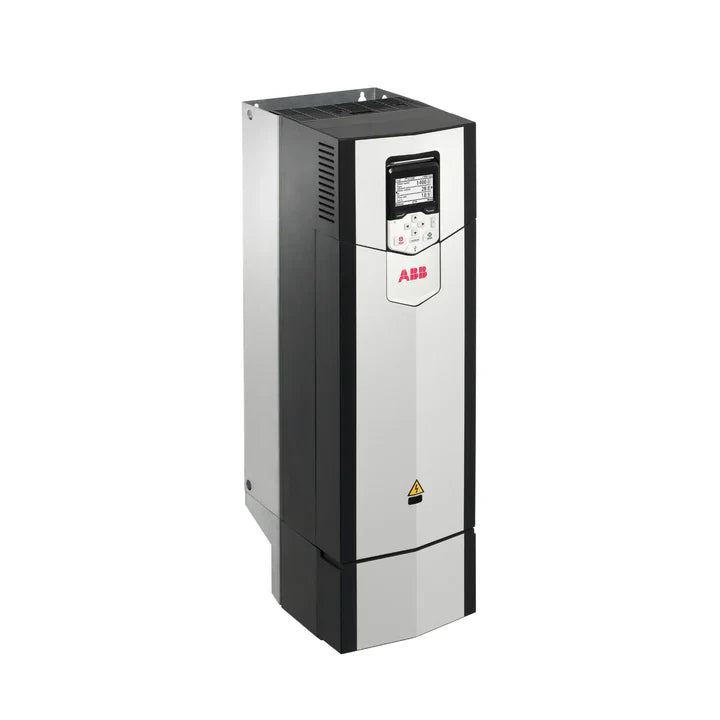

ABB ACS880-01-124A-5

ABB ACS880-01-124A-5 – 3AUA0000090442

Overview

The ABB ACS880-01-124A-5 is a low-voltage AC industrial single drive designed for wall-mounted installation in demanding environments. Rated at 75 kW (100 HP) and 124 A at 500 V, it combines compact design with advanced functionality, making it suitable for applications across multiple industries including oil & gas, mining, metals, chemicals, cement, power plants, pulp & paper, marine, and automotive.

This drive provides precise motor control for a wide variety of applications such as cranes, conveyors, mixers, pumps, compressors, centrifuges, test benches, and fans. With its robust build and multiple communication options, it ensures reliability and easy integration in industrial automation systems.

Key Features

• Motor Power: 75 kW (100 HP)

• Rated Current: 124 A

• Input Voltage: 380–500 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Protection Class: IP21 (standard), IP55 (optional)

• Enclosure Type: NEMA 1

• Built-in choke for harmonic filtering

• Options: brake chopper, EMC filter, I/O extension, functional safety

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

Technical Specifications

• Global Commercial Alias: ACS880-01-124A-5

• Product ID: 3AUA0000090442

• EAN: 6438177558613

• Frame Size: R6

• Output Power:

  • Normal Duty: 75 kW

  • Heavy Duty: 55 kW

• Output Current:

  • Normal Duty: 124 A

  • Heavy Duty: 96 A

• Apparent Power Output: 107 kVA

• Efficiency Level: High efficiency

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 68 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 42.2 kg (93 lb)

• Height: 727 mm (28.6 in)

• Width: 252 mm (9.9 in)

• Depth: 357 mm (14.0 in)

Applications

• Oil & gas and chemical industries

• Mining, metals, and cement plants

• Power generation and marine operations

• Water and wastewater treatment

• Automotive and pulp & paper sectors

• Cranes, elevators, conveyors, mixers, pumps, and fans

Why Choose the ABB ACS880-01-124A-5

• High-performance motor control with superior energy efficiency

• Flexible installation: wall or cabinet-mounted

• Robust design with optional IP55 for harsh environments

• Built-in and optional features reduce need for external components

• Wide range of fieldbus and industrial communication options

Order Now

The ABB ACS880-01-124A-5 is available and ships worldwide.

Return to the ABB ACS880 Industrial Drives collection.

Explore our ABB Industrial Drives main category.
