ABB ACS580-01-293A-4 | 3ABD00045441-D

ABB ACS580-01-293A-4 | 150 kW Variable Frequency Drive, Wall-Mounted IP21

Global Commercial Alias: ACS580-01-293A-4
Product ID: 3ABD00045441-D
ABB Type Designation: ACS580-01-293A-4
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 150 kW, 293 A

Overview

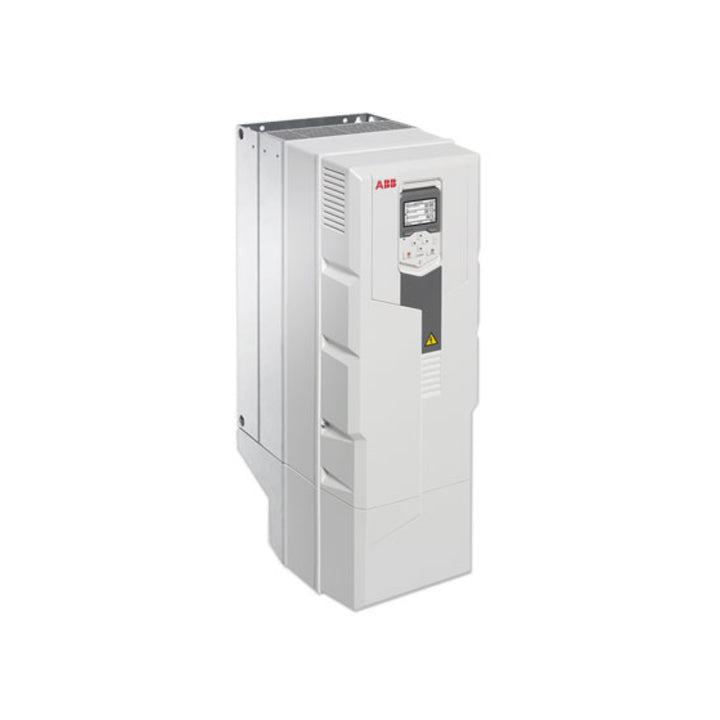

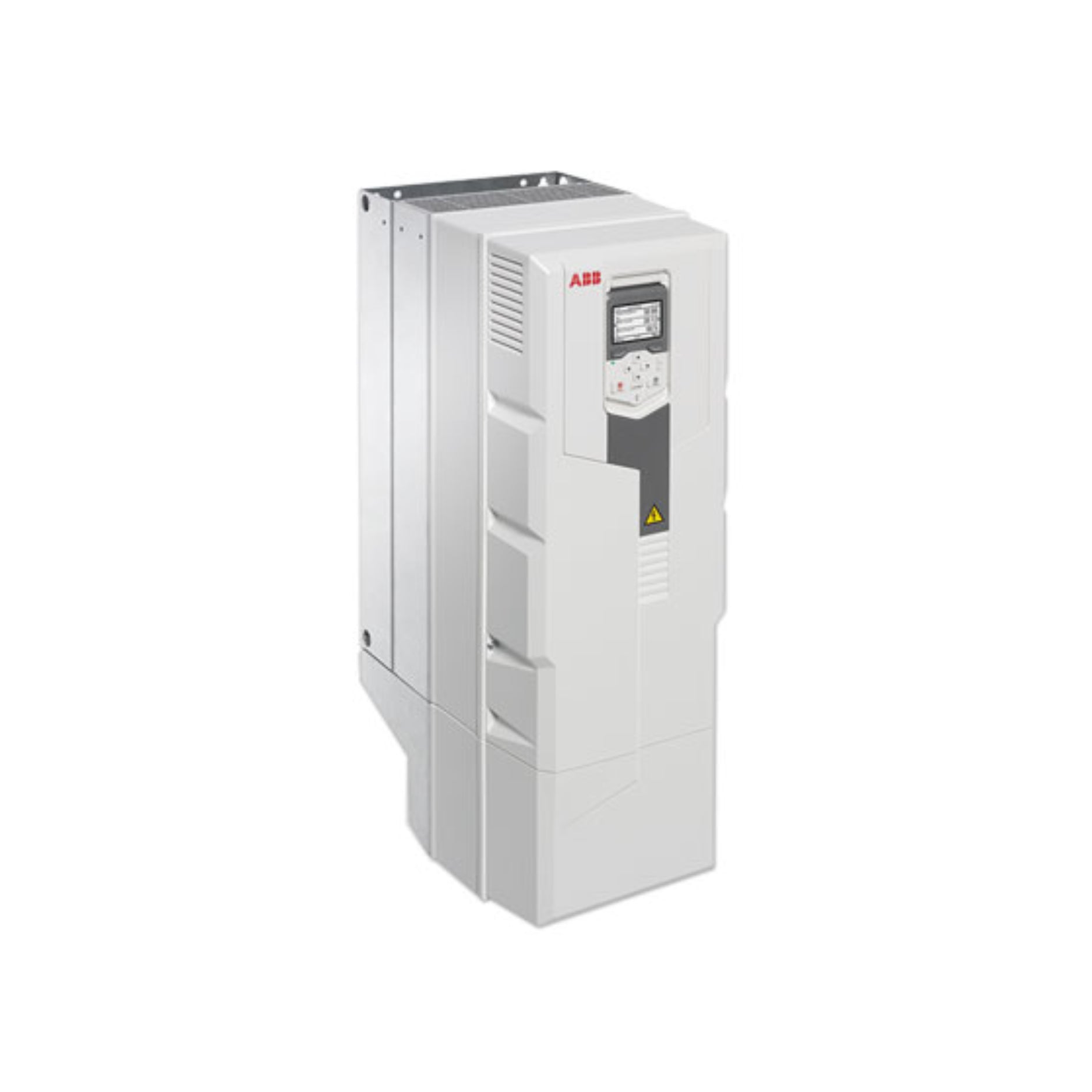

The ABB ACS580-01-293A-4 is a 150 kW (200 HP) wall-mounted variable frequency drive designed for energy-efficient motor control in industrial environments. Operating with a 380–480 V 3-phase input and delivering 293 A output, it supports both variable and constant torque applications with integrated features for simplified setup and operation.

Key Features

• Motor Power: 150 kW (200 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 293 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Removable keypad with USB connection

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS580-01-293A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -15°C to +50°C

• Dimensions (H x W x D): 770 mm x 342 mm x 285 mm

• Weight: Approx. 47 kg

• Certifications: CE, UL, cUL

Applications

• Pumps

• Fans

• Compressors

• Conveyors

• Mixers

• Centrifuges

• Industrial machinery in food, textiles, materials, and more

Product Description

The ACS580-01-293A-4 integrates everything needed for seamless motor control in a single compact unit. From its built-in EMC filters and STO safety to assistant-based configuration and a removable keypad, this drive ensures performance, protection, and ease of use in demanding settings. IP21 enclosure suits standard installations, with IP55 options available.

Why Choose ABB ACS580-01-293A-4?

• Integrated all-in-one solution

• Simplified setup and diagnostics

• Robust, energy-efficient performance

• Suitable for a wide range of motor control tasks

Order Now

Available globally with ABB quality assurance and full technical support.
