ABB ACS580-01-07A3-4 | 3AXD50000038951

ABB ACS580-01-07A3-4 | 3 kW General Purpose VFD – 400V AC, 7.2 A, IP21, Wall-Mount

Overview

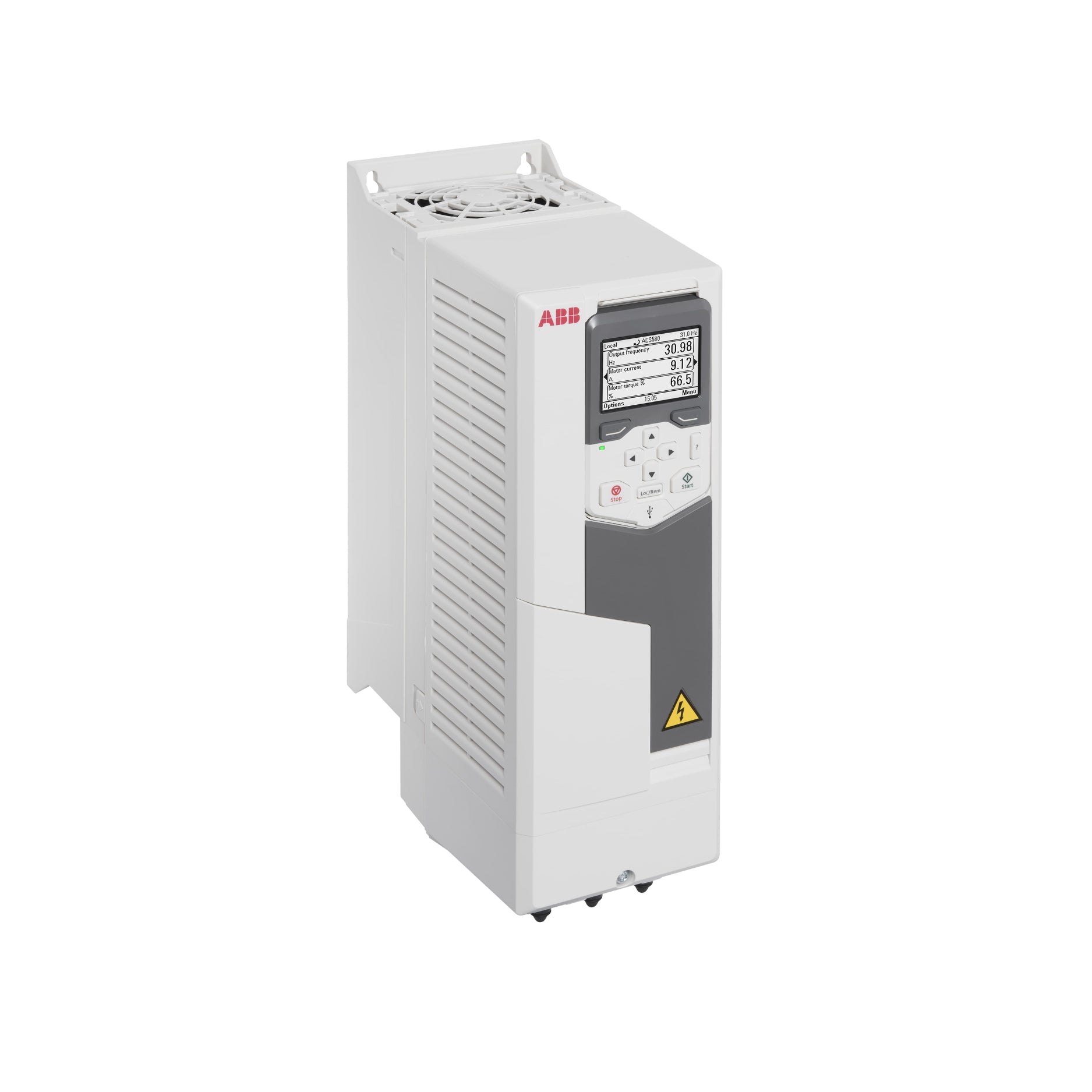

The ABB ACS580-01-07A3-4 is a 3 kW (4 hp) wall-mounted general purpose drive, rated at 7.2 A for 400V AC input power. Part of the ACS580 series, it is designed for variable and constant torque applications in a range of industries. Its plug-and-play design, built-in features, and intuitive interface make it easy to install, commission, and operate.

Key Features

• Rated Power: 3 kW (4 hp)

• Rated Output Current: 7.2 A

• Input Voltage: 3-phase, 380–480V AC

• Enclosure Type: IP21 (standard), with optional IP55 and flange mounting

• User Interface: Built-in assistant control panel

• Control Modes: Scalar (V/Hz), vector control

• Integrated Features:

  • EMC filter

  • Brake chopper

  • Modbus RTU

  • Swinging choke

• Communication Options: Optional fieldbus adapters (PROFINET, Ethernet/IP, etc.)

• Mounting: Wall-mounted

Technical Specifications

• Model Number: ACS580-01-07A3-4

• Global Alias: ACS580-01-07A3-4

• Product ID: 3AXD50000038951

• EAN: 6438177459217

• Rated Voltage: 400V AC (±10%)

• Frequency Range: 0–500 Hz

• Control Panel: Assistant panel included

• Cooling: Air-cooled, internal fan

• Ambient Temperature: -15°C to +50°C (no derating)

• Dimensions (H x W x D): Approx. 320 mm x 125 mm x 225 mm

• Weight: Approx. 5.5 kg

• Certifications: CE, UL, cUL, EAC, RoHS

Applications

• Compressors & Pumps – Smooth speed and pressure control

• Conveyors – Steady movement with reduced energy costs

• Fans & HVAC – Efficient air handling and ventilation

• Mixers & Centrifuges – Stable torque delivery

• Light Industries – Food & beverage, textiles, plastics, agriculture

Why Choose ABB ACS580-01-07A3-4?

• All-in-One Design: EMC filter, brake chopper, and Modbus included

• User-Friendly: Preconfigured setup assistants simplify commissioning

• Reliable & Versatile: Handles constant and variable torque loads

• Energy Efficient: Reduces power usage with process optimization tools

• Flexible Mounting Options: Standard IP21, optional IP55 and flange

Order Now

Available for immediate worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
