ABB ACS580-01-02A7-4 | 3AUA0000138092

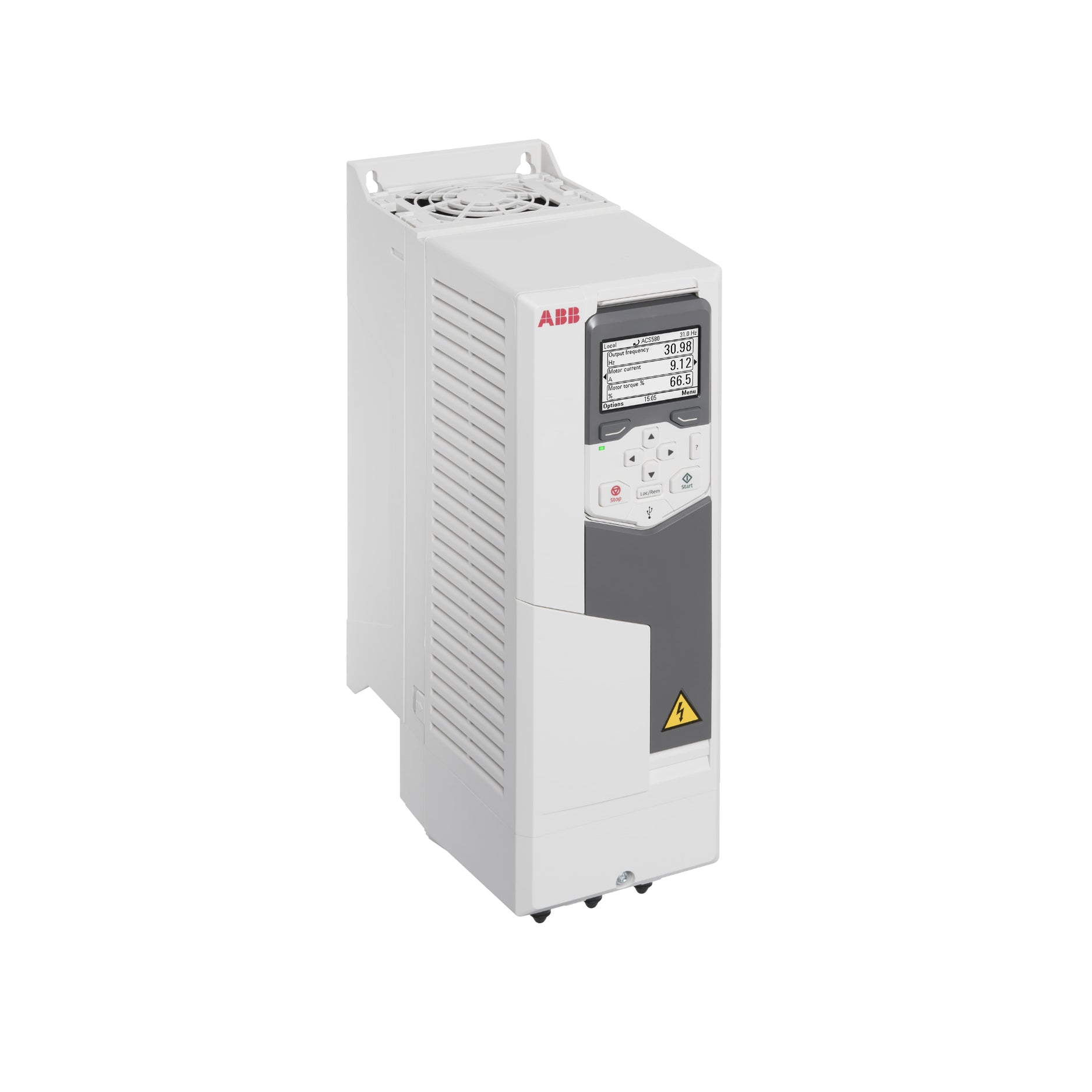

ABB ACS580-01-02A7-4 | 1.1 kW General Purpose VFD, IP21 Wall-Mounted

Global Commercial Alias: ACS580-01-02A7-4
Product ID: 3AUA0000138092
ABB Type Designation: ACS580-01-02A7-4
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 1.1 kW, 2.7 A

Overview

The ABB ACS580-01-02A7-4 is a 1.1 kW (1.5 HP) variable frequency drive engineered for efficient motor control in both variable and constant torque applications. It features a 3-phase 380–480V input, wall-mountable IP21 enclosure, and integrated functionality to streamline industrial automation.

Key Features

• Motor Power: 1.1 kW (1.5 HP)

• Input Voltage: 380–480V AC, 3-phase

• Output Current: 2.7 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Removable keypad with USB PC connection

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS580-01-02A7-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -15°C to +50°C

• Dimensions (H x W x D): 375 mm x 125 mm x 227 mm

• Weight: Approx. 3.5 kg

• Certifications: CE, UL, cUL

Applications

• Pumps

• Fans

• Compressors

• Mixers

• Conveyors

• HVAC systems

• Industrial process control

Product Description

The ACS580-01-02A7-4 is built for reliability and efficiency in a compact form factor. With built-in features like STO and EMC filtering, it reduces installation complexity and cost. Its intuitive keypad and configuration assistant simplify commissioning, while its rugged IP21 enclosure is ideal for industrial use.

Why Choose ABB ACS580-01-02A7-4?

Compact, efficient, and ready-to-use
Supports multiple motor control applications
Built-in safety and EMC features
Easy installation and user-friendly interface
