ABB ACS550-U1-246A-4 | 3AUA0000019590

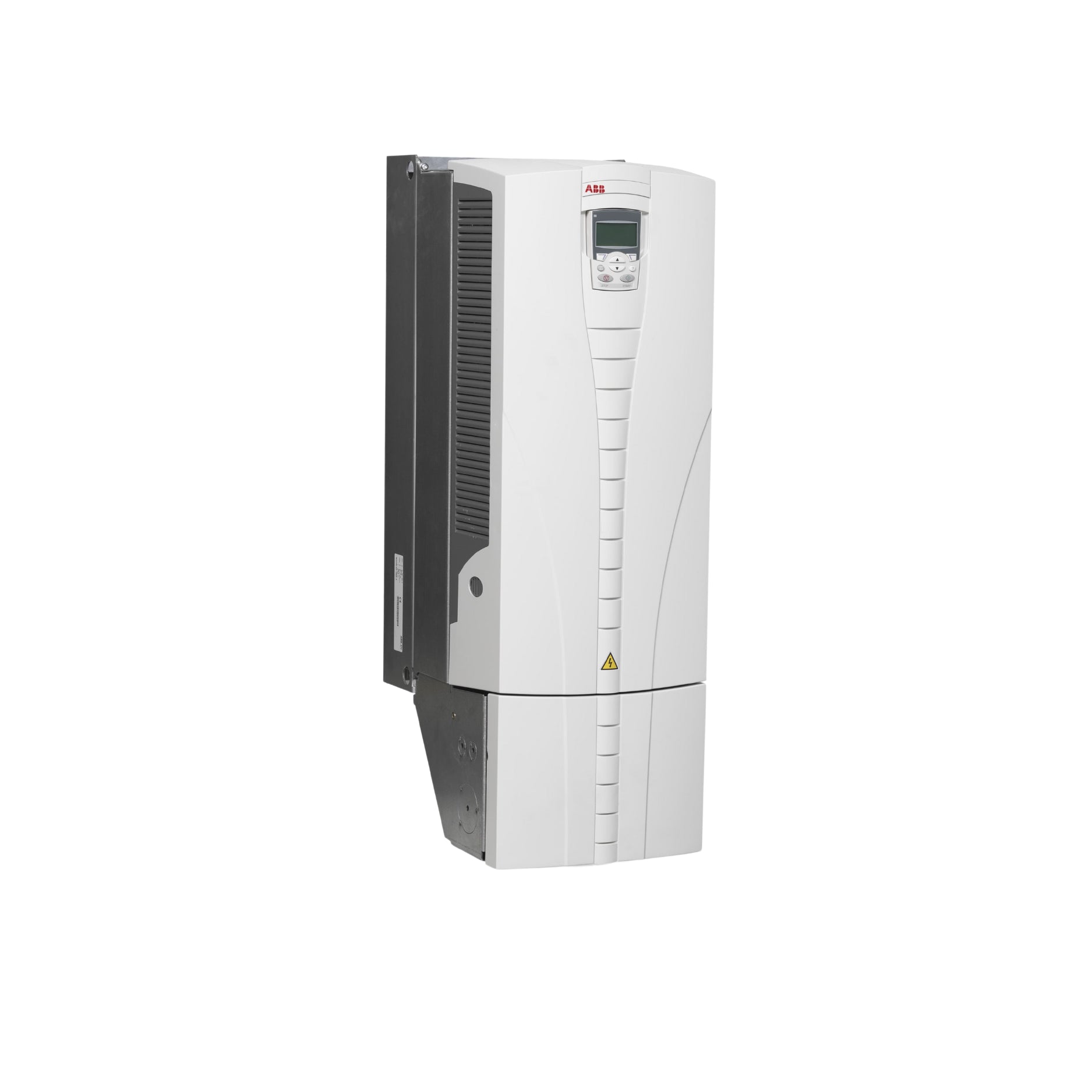

ABB ACS550-U1-246A-4 | 150 HP Variable Frequency Drive, IP21

Global Commercial Alias: ACS550-U1-246A-4
Product ID: 3AUA0000019590
ABB Type Designation: ACS550-U1-246A-4
Catalog Description: General purpose AC drive, 150 HP, 246 A, 3-phase, 380–480 V, IP21, wall-mounted

Overview

The ABB ACS550-U1-246A-4 is a high-performance 150 HP variable frequency drive designed to deliver reliable motor control in demanding industrial settings. With a 3-phase 380–480 V input and robust 246 A output, it provides efficient energy use and smooth operation across multiple applications.

Key Features

• Motor Power: 110 kW (150 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 246 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Integrated keypad with intuitive display

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-U1-246A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 882 mm x 350 mm x 310 mm

• Weight: Approx. 49 kg

• Certifications: CE, UL, cUL

Applications

• Industrial HVAC systems

• Water supply and wastewater plants

• Fans, pumps, and compressors

• Material handling and conveyors

• Automation and processing industries

Product Description

The ACS550-U1-246A-4 provides dependable motor control and energy savings with integrated features like STO safety and EMC filtering. Its robust design, intuitive keypad, and flexible configuration make it ideal for automation in a wide range of industrial systems.

Why Choose ABB ACS550-U1-246A-4?

• Built-in safety and filtering reduce installation effort

• Reliable, high-efficiency motor control

• Easy commissioning with assistant control panel

• Ideal for mid to high-power industrial applications

Order Now

Available for fast shipping and global ABB service and support.
