ABB ACS550-U1-072A-4 | 3AUA0000002203

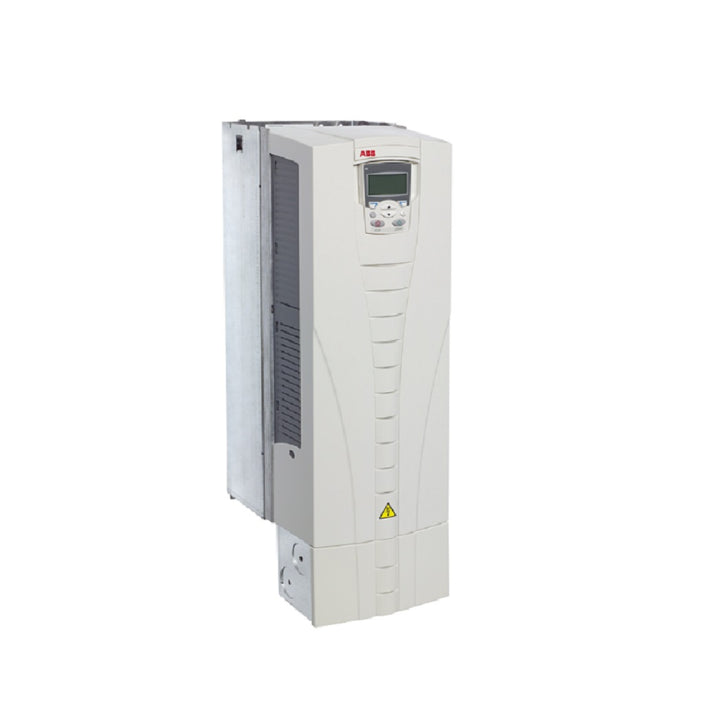

ABB ACS550-U1-072A-4 | 40 HP Variable Frequency Drive, IP21

Global Commercial Alias: ACS550-U1-072A-4
Product ID: 3AUA0000002203
ABB Type Designation: ACS550-U1-072A-4
Catalog Description: General purpose AC drive, 40 HP, 72 A, 3-phase, 380–480 V, IP21, wall-mounted

Overview

The ABB ACS550-U1-072A-4 is a 40 HP variable frequency drive engineered for versatile motor control in a wide range of industrial applications. With a 3-phase input of 380–480 V and 72 A output current, it delivers consistent, energy-efficient performance and includes IP21 protection for wall-mount installations.

Key Features

• Motor Power: 30 kW (40 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 72 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Integrated keypad with intuitive control panel

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-U1-072A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 600 mm x 203 mm x 229 mm

• Weight: Approx. 15.5 kg

• Certifications: CE, UL, cUL

Applications

• HVAC systems

• Water and wastewater treatment

• Material handling equipment

• Industrial pumps, fans, and conveyors

Product Description

The ACS550-U1-072A-4 combines performance, safety, and ease of use in one compact unit. Designed with built-in EMC filtering and STO, it's ideal for both retrofit and new installations. The intuitive keypad and assistant-based setup reduce commissioning time and improve operational reliability.

Why Choose ABB ACS550-U1-072A-4?

• High-performance drive for 40 HP motors

• Quick setup with user-friendly keypad

• Advanced safety and filtering features

• Built-in compatibility for industrial applications

Order Now

Available for global delivery with full technical support.
