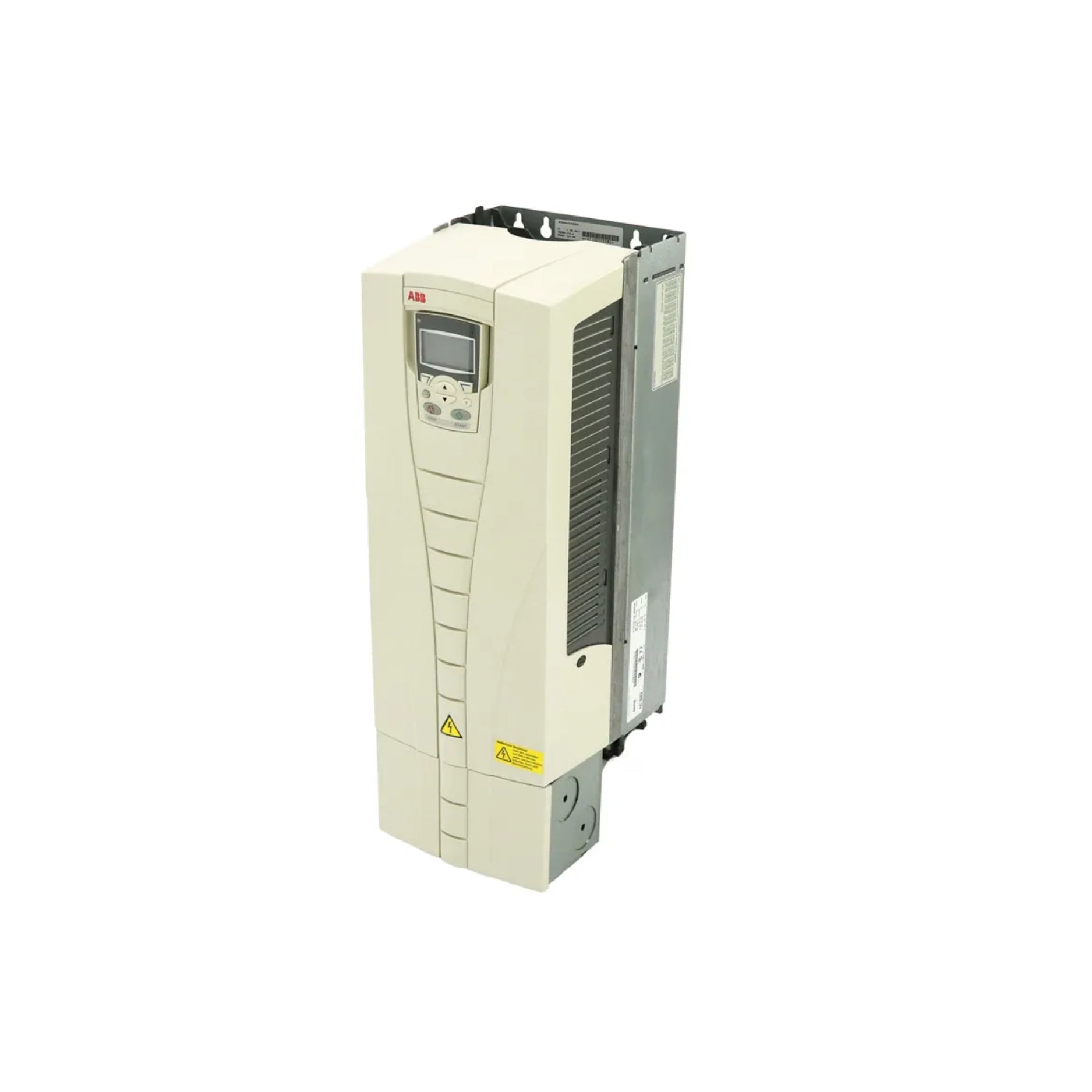

ABB ACS550-U1-059A-4 | 3AUA0000002202

ABB ACS550-U1-059A-4 | 30 HP Variable Frequency Drive, IP21

Global Commercial Alias: ACS550-U1-059A-4
Product ID: 3AUA0000002202
ABB Type Designation: ACS550-U1-059A-4
Catalog Description: General purpose AC drive, 30 HP, 59 A, 3-phase, 380–480 V, IP21, wall-mounted

Overview

The ABB ACS550-U1-059A-4 is a 30 HP variable frequency drive designed for general-purpose applications requiring precise and energy-efficient motor control. Operating at 380–480 V with 59 A output current and IP21 protection, it ensures dependable performance for industrial environments.

Key Features

• Motor Power: 22 kW (30 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 59 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Integrated keypad with intuitive control panel

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-U1-059A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 600 mm x 203 mm x 229 mm

• Weight: Approx. 15.5 kg

• Certifications: CE, UL, cUL

Applications

• HVAC systems

• Pumps and fans

• Compressors

• Conveyors

• General-purpose industrial machinery

Product Description

The ACS550-U1-059A-4 offers advanced control and flexibility in a compact, all-in-one design. With intuitive user interface, built-in safety and filtering, and reliable performance, it's an ideal solution for modern automation and motor control systems.

Why Choose ABB ACS550-U1-059A-4?

• Optimized for 30 HP motors in industrial use

• Built-in STO and EMC for safety and compliance

• Simple installation and quick setup

• Proven reliability across diverse applications

Order Now

Available for immediate global delivery.
