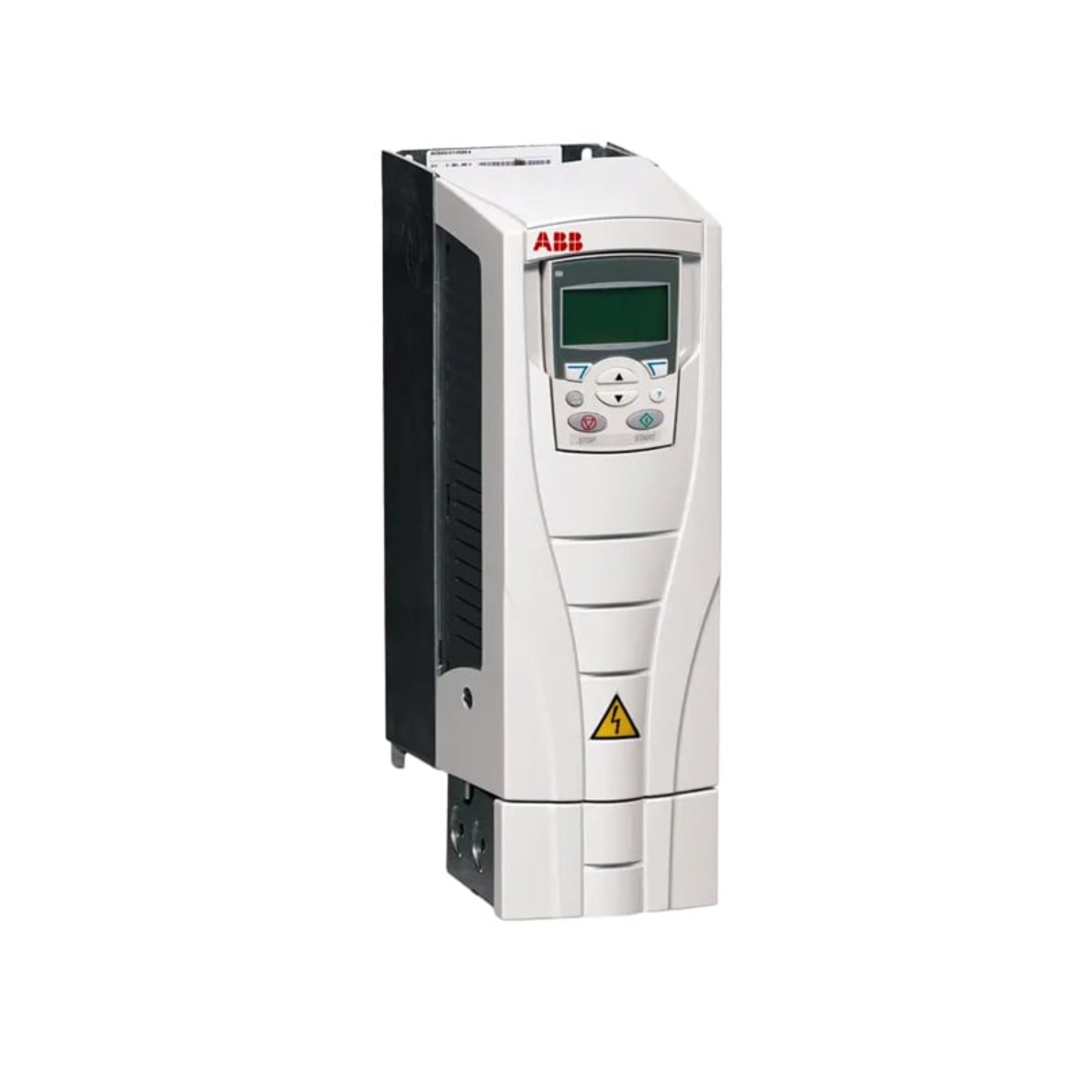

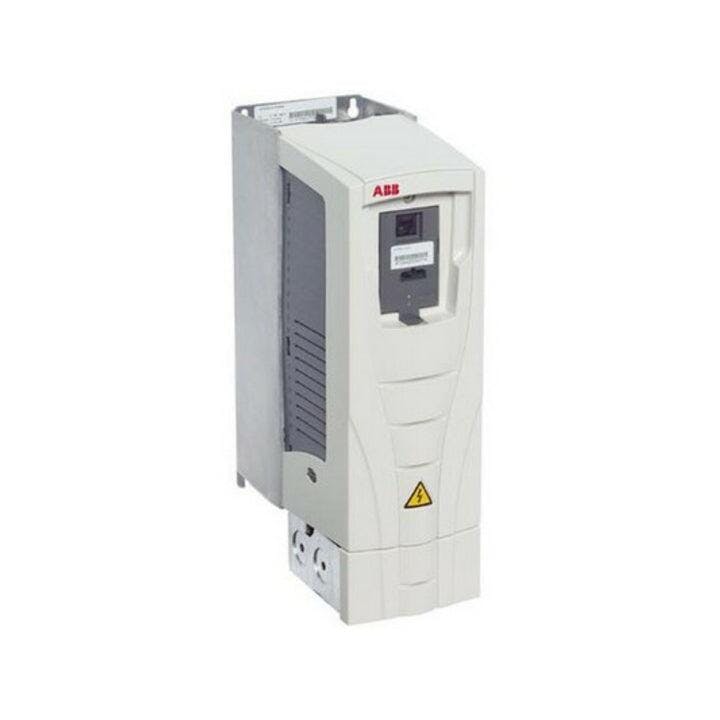

ABB ACS550-01-023A-4 | 3AUA0000002417-D | Variable Frequency Drive

ABB ACS550-01-023A-4 | 11 kW General Purpose Drive, IP21 Wall-Mount

Global Commercial Alias: ACS550-01-023A-4
Product ID: 3AUA0000002417-D
ABB Type Designation: ACS550-01-023A-4
Catalog Description: 11 kW (15 HP), 380–480 V AC input, 23 A output, IP21 wall-mounted drive

Overview

The ABB ACS550-01-023A-4 is an 11 kW (15 HP) general purpose variable frequency drive, engineered to deliver efficient and reliable motor control for a broad range of industrial applications. Operating on 380–480 V 3-phase input with an IP21 enclosure, it ensures straightforward installation and integration.

Key Features

• Motor Power: 11 kW (15 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 23 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Removable keypad with USB support

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-01-023A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 415 mm x 203 mm x 200 mm

• Weight: Approx. 8.4 kg

• Certifications: CE, UL, cUL

Applications

• Pumps

• Fans

• Compressors

• Conveyors

• Mixers

• HVAC systems

• Material handling

Product Description

The ABB ACS550-01-023A-4 delivers optimized energy savings and flexible motor control for various industries. With built-in features such as an EMC filter, STO, and intuitive keypad interface, it simplifies commissioning and ensures operational reliability. Its compact IP21 wall-mounted design makes it ideal for space-constrained installations.

Why Choose ABB ACS550-01-023A-4?

All-in-one functionality with integrated safety
Energy-efficient motor operation
Quick setup and commissioning
Trusted ABB reliability for industrial environments

Order Now

Available for fast worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
