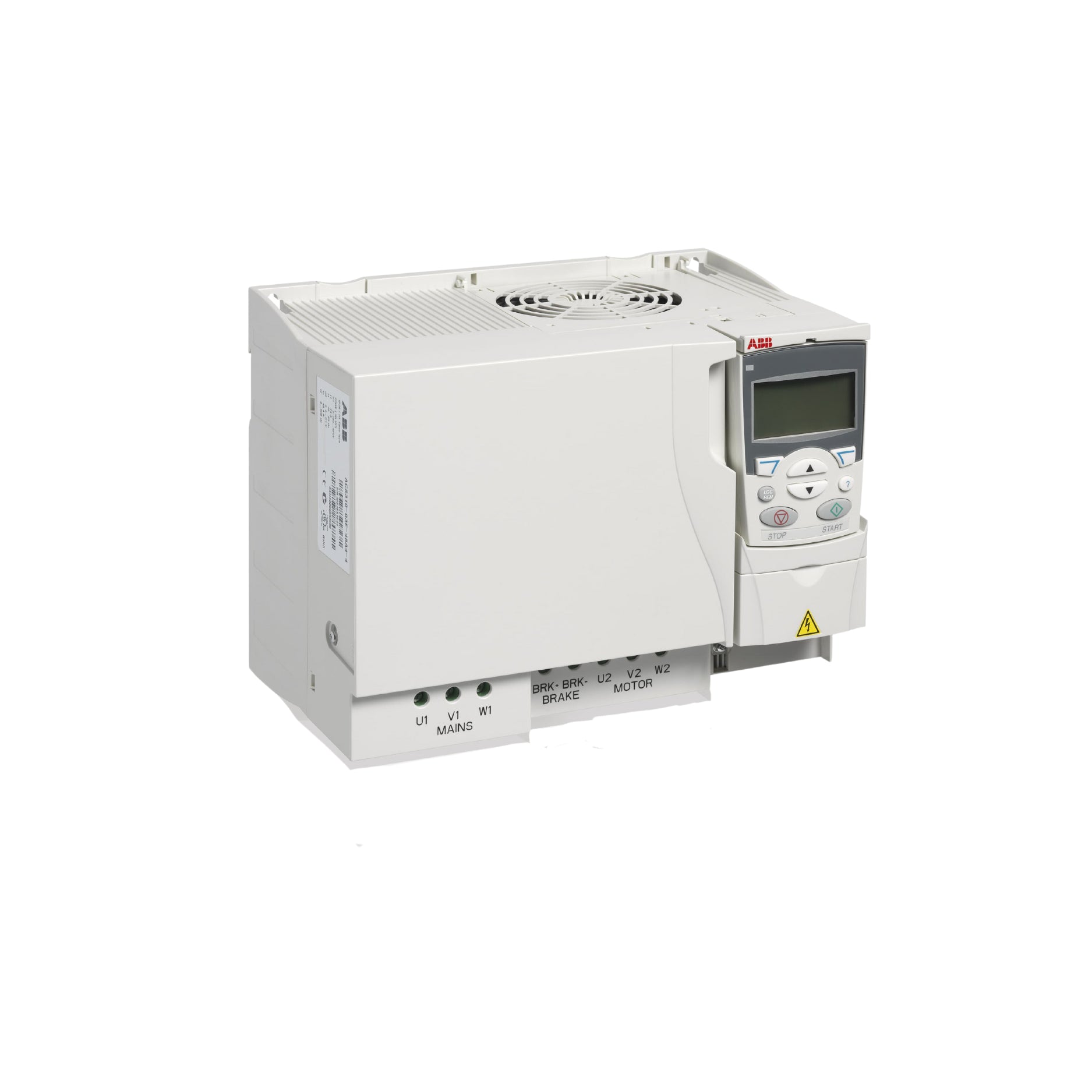

ABB ACS310-03E-48A4-4

ABB ACS310-03E-48A4-4 | Variable Frequency Drive (VFD)

Overview

The ABB ACS310-03E-48A4-4 is a powerful and energy-efficient variable frequency drive (VFD) designed to optimize motor control in pump and fan applications. With a built-in pump and fan control functionality, it provides enhanced performance, reduced energy consumption, and extended equipment life.

Key Features

• Model: ABB ACS310-03E-48A4-4
• Rated Current: 48A
• Power Rating: 22 kW (30 HP)
• Voltage Class: 3-phase, 380-480V AC
• Built-in PID Control: Enables automatic process control
• Energy Optimization: Reduces power consumption in motor-driven applications
• Compact Design: Space-saving construction for easy panel integration
• Overload Capacity: 150% for 1 minute
• Control Panel: Built-in keypad for easy configuration
• Protection Features: Overvoltage, undervoltage, overload, and short circuit protection
• Compliance: Meets IEC 61800-5-1 and IEC 61800-3 standards

Technical Specifications

• Model Number: ABB ACS310-03E-48A4-4
• Voltage Supply: 3-phase, 380-480V AC
• Output Power: 22 kW (30 HP)
• Rated Current: 48A
• Frequency Range: 0 to 500 Hz
• Control Type: Scalar (V/Hz) control
• Motor Control: Sensorless vector control
• Overload Capacity: 150% for 1 minute
• Built-in Communication: Modbus RTU
• Ambient Temperature Range: -10°C to +50°C
• IP Rating: IP20
• Mounting Type: Wall or panel mount
• Certifications: CE, UL, CSA, RoHS

Applications

• HVAC Systems: Efficient control for fans and blowers
• Water and Wastewater Pumps: Optimized for pump control and water circulation
• Irrigation Systems: Energy-efficient motor speed regulation
• Industrial Automation: Enhances process efficiency and motor performance

The ABB ACS310-03E-48A4-4 is a reliable and efficient VFD solution, providing intelligent motor control and energy savings in a compact, easy-to-use design.
