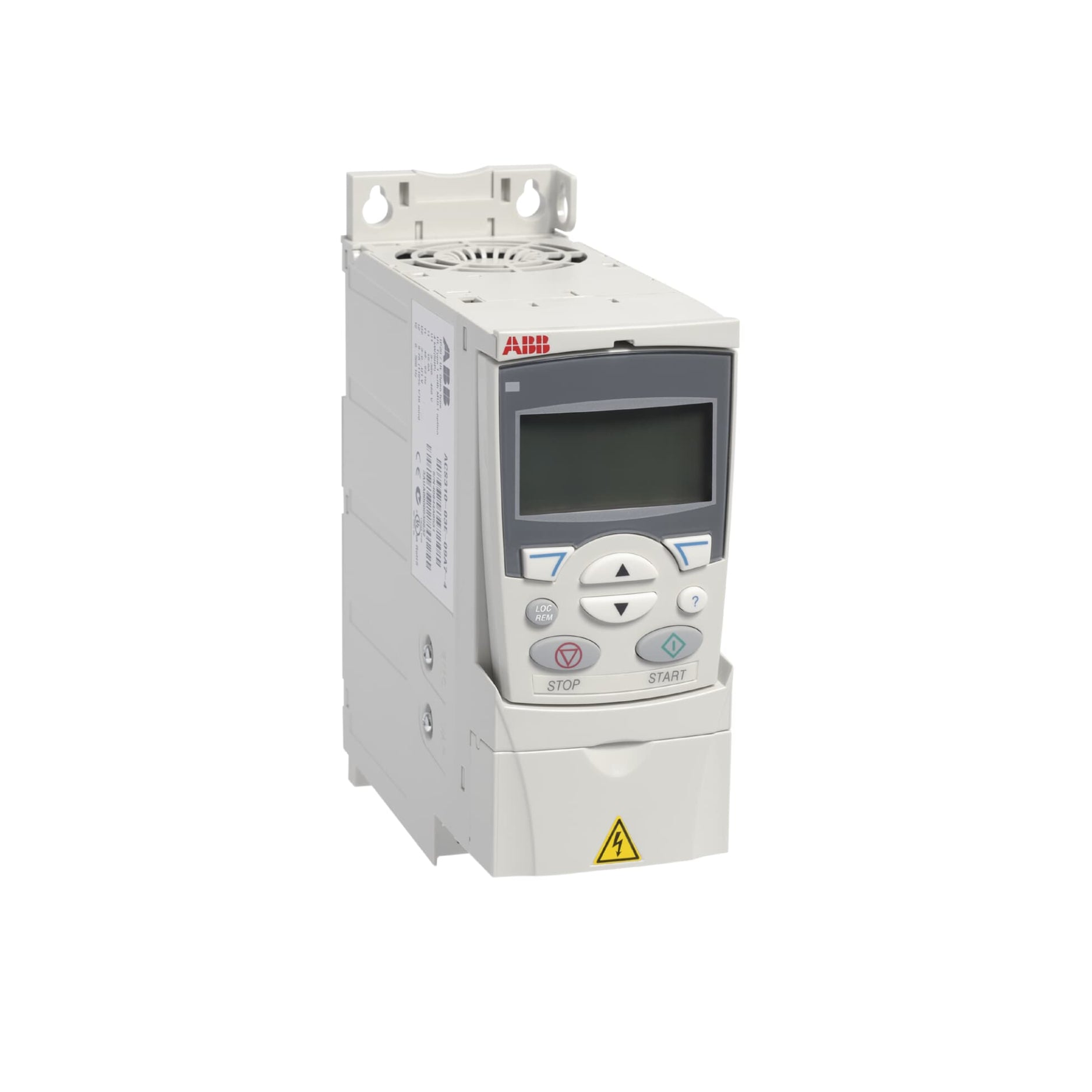

ABB ACS310-03E-09A7-4 | 3AUA0000039632

ABB ACS310-03E-09A7-4 | 4 kW VFD, 9.7 A, 400 V, IP20 for HVAC and Pumps

Global Commercial Alias: ACS310-03E-09A7-4
Product ID: 3AUA0000039632
ABB Type Designation: ACS310-03E-09A7-4
Catalog Description: Variable Frequency Drive, 4 kW, 9.7 A, 400 V, IP20, for fan and pump control in HVAC and light industrial environments

Overview

The ABB ACS310-03E-09A7-4 is a compact and intelligent variable frequency drive developed for enhancing the efficiency of pump and fan applications. Its robust features support energy-saving and precise motor control across light industrial systems.

Key Features

• Motor Power: 4 kW (5.5 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 9.7 A

• Control Method: Scalar control (V/f)

• Pump & Fan Functions: Sleep/wake, pump cleaning, and PID control

• Overload Capacity: 110% for 60 seconds

• Integrated EMC Filter: C2 class

• Enclosure: IP20

• Mounting: Wall or DIN rail

• Control Panel: Optional add-on

Technical Specifications

• Output Frequency Range: 0–500 Hz

• Analog Inputs: 2

• Digital Inputs: 5

• Analog Outputs: 1

• Relay Outputs: 1

• Protection Features: Short-circuit, overload, overvoltage

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 169 mm x 100 mm x 143 mm

• Weight: 1.5 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Building ventilation systems

• Agricultural irrigation

• Booster pump stations

• Process cooling and heating systems

• Water distribution automation

Product Description

The ABB ACS310-03E-09A7-4 is an energy-efficient and cost-effective VFD optimized for light-duty fan and pump use. It delivers accurate speed control, smart diagnostics, and fast installation, enhancing automation reliability.

Why Choose ABB ACS310-03E-09A7-4?

• Optimized for HVAC and pump operations

• Saves energy with smart control features

• Reliable and compact with easy setup

• Backed by ABB’s global support
