ABB ACS310-03E-04A5-4 | 3AUA0000039629

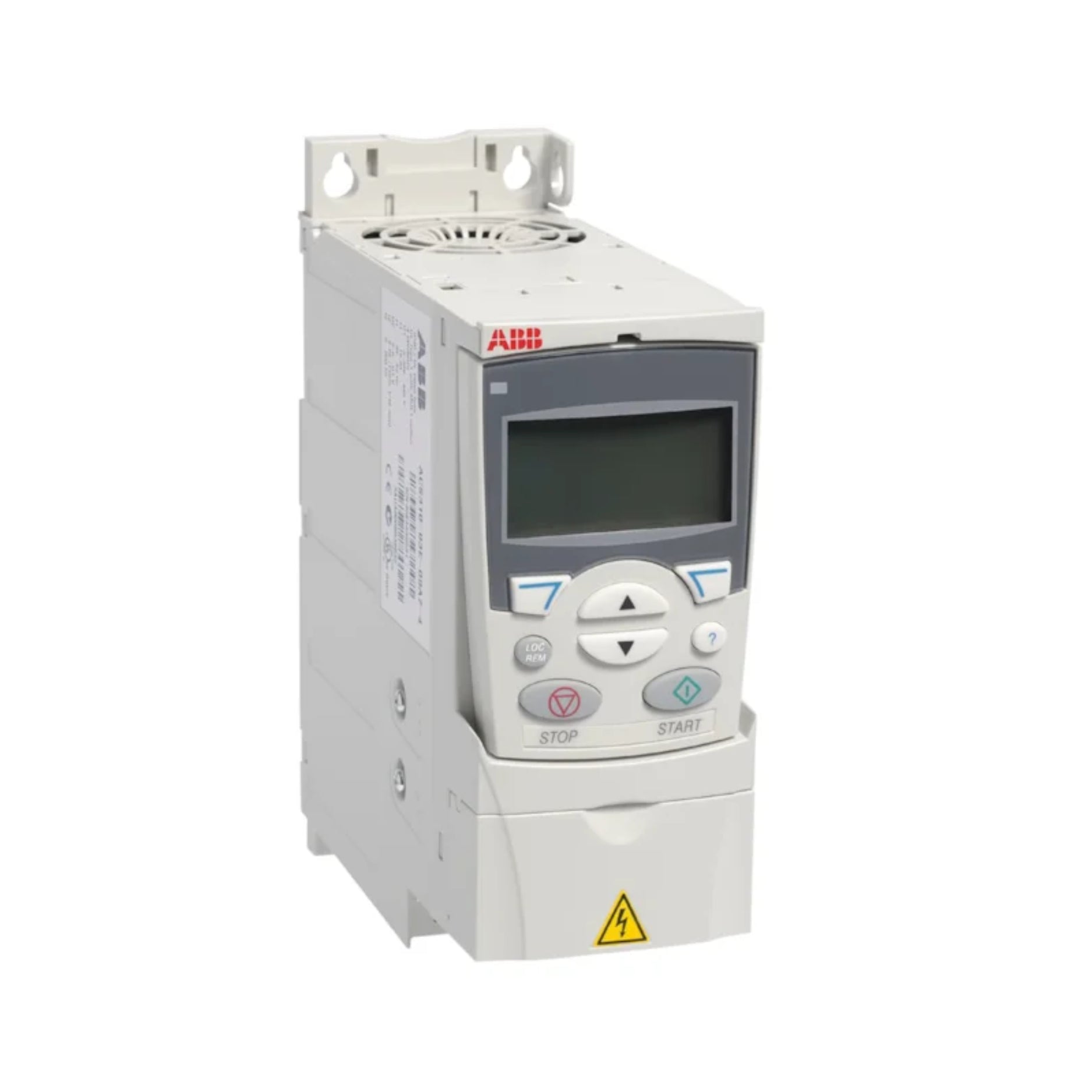

ABB ACS310-03E-04A5-4 | 1.5 kW VFD, 4.5 A, 400 V, IP20 for Pumps/Fans

Global Commercial Alias: ACS310-03E-04A5-4
Product ID: 3AUA0000039629
ABB Type Designation: ACS310-03E-04A5-4
Catalog Description: Variable Frequency Drive, 1.5 kW, 4.5 A, 400 V, IP20, dedicated to pump and fan applications

Overview

The ABB ACS310-03E-04A5-4 is a compact and energy-efficient variable frequency drive engineered for light industrial applications. Ideal for controlling pumps and fans, it offers built-in features that enhance motor performance and system reliability.

Key Features

• Motor Power: 1.5 kW (2 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 4.5 A

• Control Method: Scalar (V/f) control

• Pump/Fan Functions: PID control, pump cleaning, sleep mode

• Overload Capability: 110% for 60 seconds

• Filter: Integrated EMC filter (C2)

• Enclosure: IP20

• Mounting: Wall/DIN rail compatible

• User Interface: Optional control panel

Technical Specifications

• Frequency Range: 0–500 Hz

• Analog Inputs: 2

• Digital Inputs: 5

• Analog Outputs: 1

• Relay Outputs: 1

• Integrated Protections: Overvoltage, short circuit, motor overload

• Operating Temp: -10°C to +50°C

• Dimensions (H x W x D): 169 mm x 70 mm x 143 mm

• Weight: 1.2 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Booster pumps

• HVAC fans

• Water treatment systems

• Irrigation pumps

• Ventilation units

Product Description

The ABB ACS310-03E-04A5-4 delivers optimized motor control for small-scale industrial systems. With dedicated fan and pump functionality, built-in protections, and easy installation, it's a powerful tool for improving efficiency and system automation.

Why Choose ABB ACS310-03E-04A5-4?

• Reliable and precise control for pumps and fans

• Compact size and flexible mounting

• Integrated features for enhanced energy savings

• Easy integration with industrial systems

Order Now

Available for global delivery.
