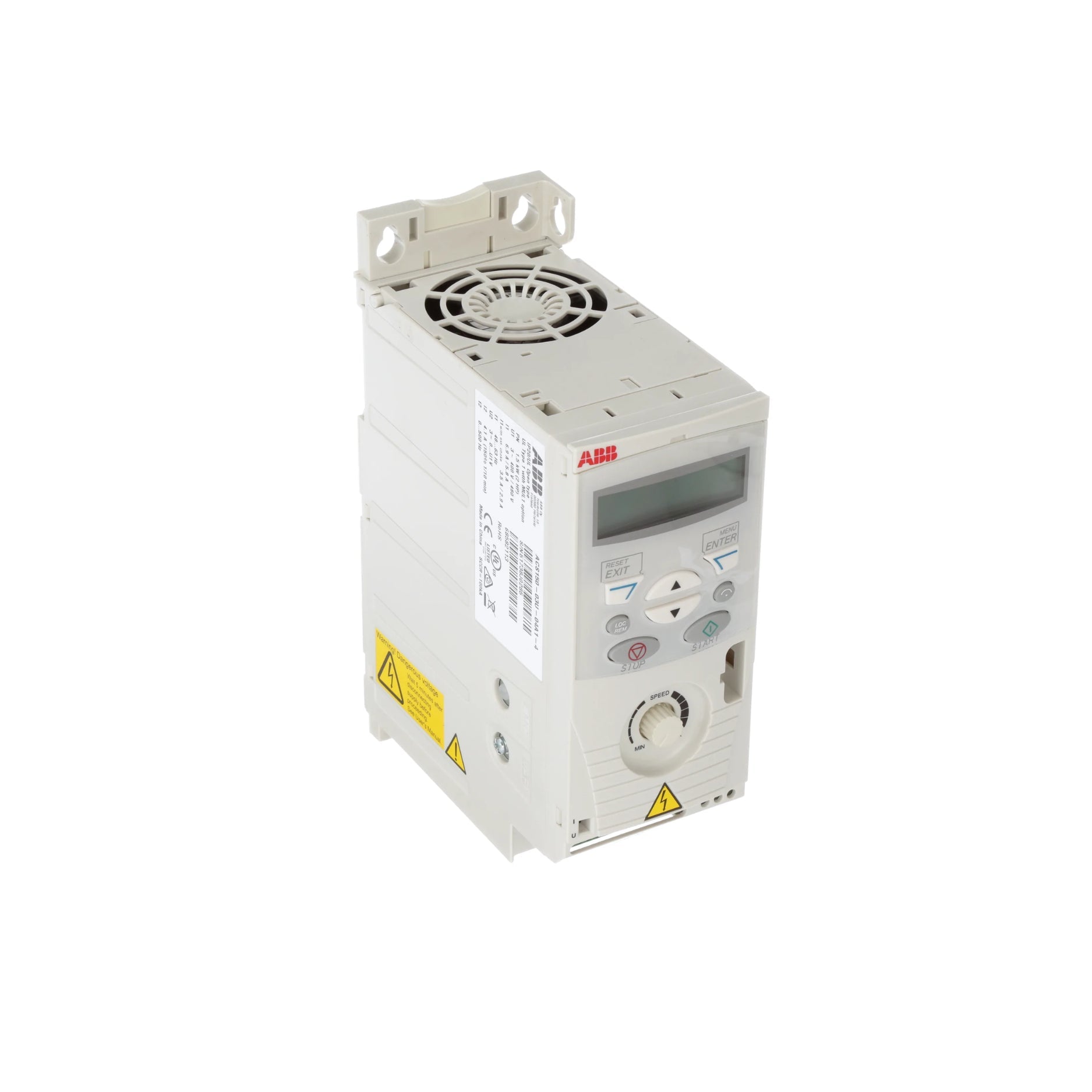

ABB ACS150-03U-04A1-4 | 1.5 HP VFD, 4.1 A, 480 V, IP20 for Compact Control

ABB ACS150-03U-04A1-4 | 1.5 HP VFD, 4.1 A, 480 V, IP20 for Compact Control

Global Commercial Alias: ACS150-03U-04A1-4
ABB Type Designation: ACS150-03U-04A1-4
Catalog Description: Variable Frequency Drive, 1.5 HP, 4.1 A, 3-phase 480 V, IP20 enclosure, compact VFD for general industrial motor control

Overview

The ABB ACS150-03U-04A1-4 is a user-friendly and compact VFD ideal for simple motor control applications. With built-in features such as a keypad, PID control, and EMC filter, it simplifies installation and setup in OEM and industrial environments.

Key Features

• Motor Power: 1.5 HP (1.1 kW)

• Input Voltage: 200–480 V AC, 3-phase

• Output Current: 4.1 A

• Control Method: Scalar (V/f)

• Interface: Integrated keypad with potentiometer

• Enclosure: IP20

• EMC Filter: Built-in (Category C1/C2)

• Mounting: DIN rail or wall-mounted

• Braking Chopper: Integrated

Technical Specifications

• Frequency Range: 0–500 Hz

• Digital Inputs: 5

• Analog Inputs: 1

• Analog Outputs: 1

• Relay Outputs: 1

• Overload Capacity: 150% for 60 sec

• Operating Temp: -10°C to +40°C (without derating)

• Dimensions (H x W x D): 142 mm x 70 mm x 143 mm

• Weight: 1.1 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• OEM machinery and automation

• Conveyors and mixers

• Fans and small pumps

• Material handling systems

Product Description

The ABB ACS150-03U-04A1-4 provides reliable and efficient motor control in a compact form. Designed for ease of use, it features intuitive operation, fast setup, and integrated components that reduce installation time and space requirements.

Why Choose ABB ACS150-03U-04A1-4?

• Built-in keypad and EMC filter

• Compact size for OEM integration

• Quick setup with intuitive interface

• Trusted ABB performance and reliability

Order Now

Ready for fast and global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
