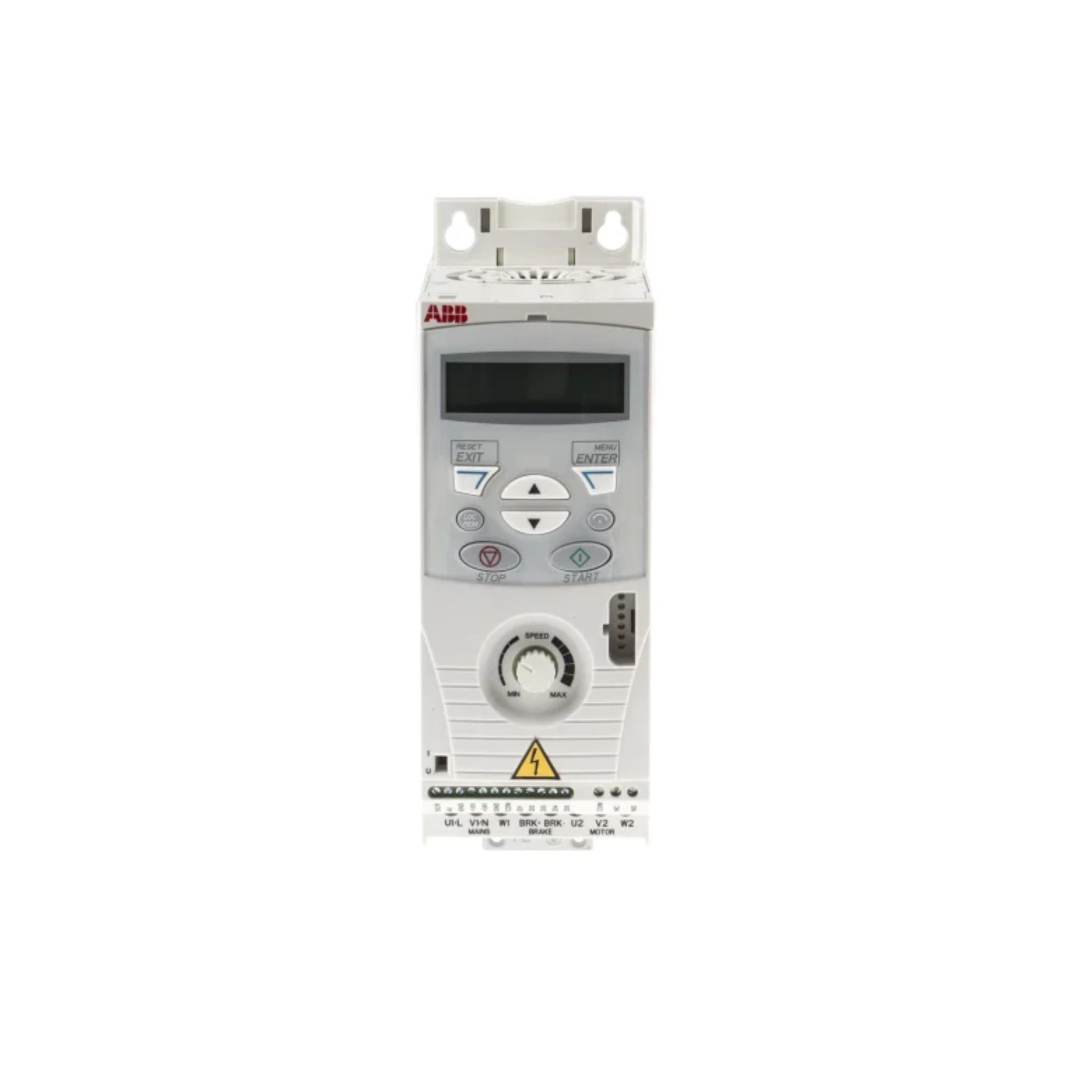

ABB ACS150-03E-07A3-4 | 3ABD68865921 | 4 HP, 480 V VFD, IP20

ABB ACS150-03E-07A3-4 | 4 HP, 480 V VFD, IP20

Global Commercial Alias: ACS150-03E-07A3-4
Product ID: 3ABD68865921
ABB Type Designation: ACS150-03E-07A3-4
Catalog Description: Variable Frequency Drive, 4 HP, 7.3 A, 3-phase 480 V, IP20 enclosure, compact VFD with integrated keypad and EMC filter for OEM use

Overview

The ABB ACS150-03E-07A3-4 is a space-saving and robust variable frequency drive ideal for OEM applications and general motor control. It features integrated functionality like a keypad, EMC filter, and braking chopper for rapid setup and efficient performance.

Key Features

• Power Rating: 4 HP (3 kW)

• Input Voltage: 200–480 V AC, 3-phase

• Output Current: 7.3 A

• Control Type: Scalar (V/f)

• Interface: Integrated keypad with potentiometer

• EMC Filter: Built-in

• Braking Chopper: Included

• Protection Class: IP20

• Mounting: DIN rail or wall-mount

Technical Specifications

• Frequency Range: 0–500 Hz

• Digital Inputs: 5

• Analog Inputs: 1

• Analog Outputs: 1

• Relay Outputs: 1

• Overload Capacity: 150% for 60 seconds

• Operating Temperature: -10°C to +40°C (no derating)

• Dimensions (H x W x D): 142 mm x 70 mm x 151 mm

• Weight: 1.1 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Light-duty conveyors

• Pumps and fans

• OEM equipment

• Compact control panels

Product Description

The ABB ACS150-03E-07A3-4 delivers dependable performance in a compact format. With factory-integrated features and flexible installation options, it’s an excellent choice for OEMs and light industrial motor control needs.

Why Choose ABB ACS150-03E-07A3-4?

• Compact design with full feature set

• 4 HP output with integrated EMC filter

• Quick installation with onboard keypad

• Trusted ABB quality for OEM and industrial use

Order Now

Worldwide delivery and technical support available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
