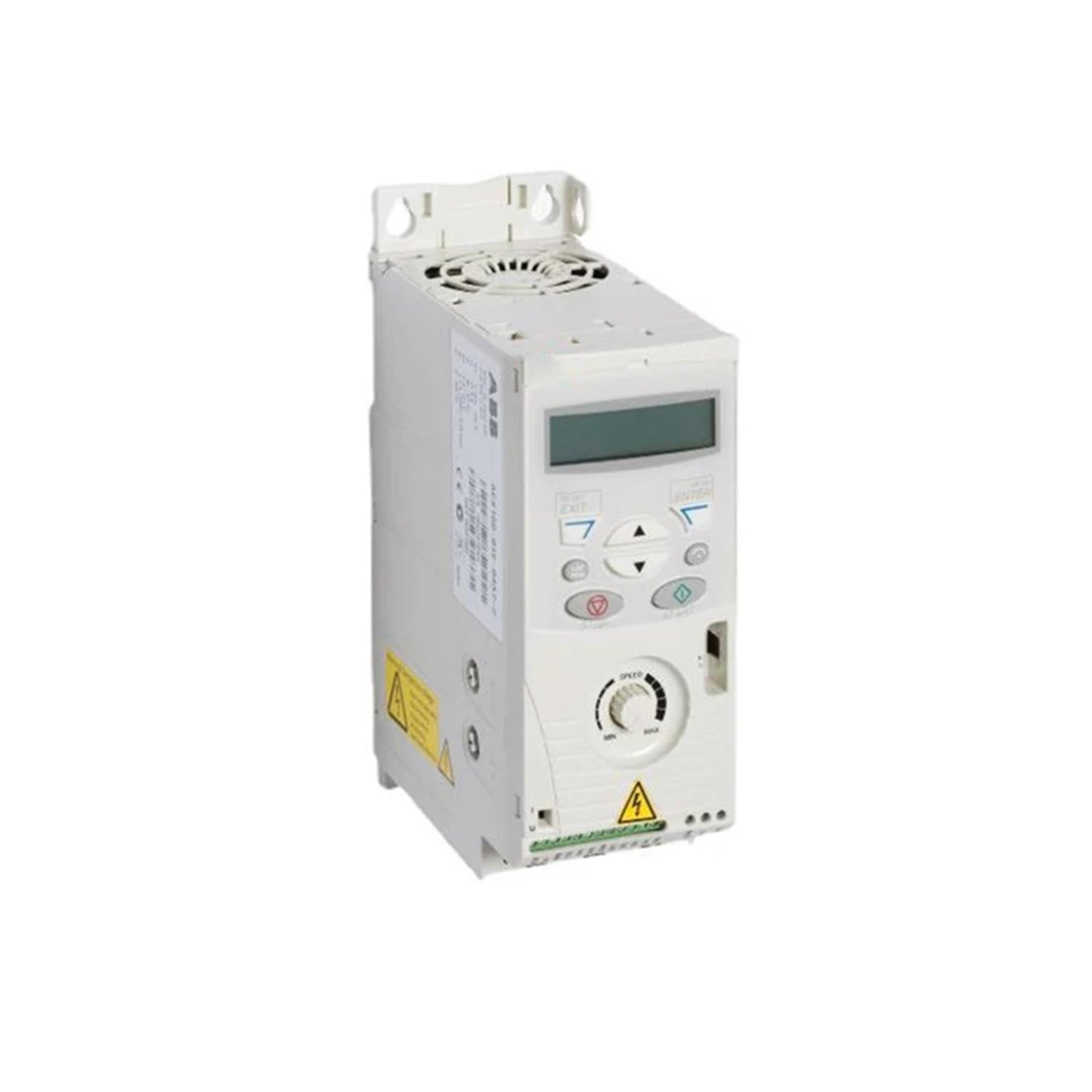

ABB ACS150-03E-01A9-4 | 3ABD68865824 | Variable Frequency Drive (VFD)

ABB ACS150-03E-01A9-4 | 0.75 HP VFD, 1.9 A, 480 V, IP20 for Compact Motor Control

Global Commercial Alias: ACS150-03E-01A9-4
Product ID: 3ABD68865824
ABB Type Designation: ACS150-03E-01A9-4
Catalog Description: Variable Frequency Drive, 0.75 HP, 1.9 A, 3-phase 480 V, IP20 enclosure, compact VFD for OEM and light-duty motor control applications

Overview

The ABB ACS150-03E-01A9-4 is a compact and reliable VFD designed for controlling small motors in OEM and light industrial environments. It offers built-in features such as a keypad, EMC filter, and braking chopper for straightforward installation and operation.

Key Features

• Motor Power: 0.75 HP (0.55 kW)

• Input Voltage: 200–480 V AC, 3-phase

• Output Current: 1.9 A

• Control Method: Scalar (V/f)

• Interface: Built-in keypad with potentiometer

• Enclosure: IP20

• EMC Filter: Integrated

• Mounting: DIN rail or wall-mount

• Braking Chopper: Built-in

Technical Specifications

• Frequency Range: 0–500 Hz

• Digital Inputs: 5

• Analog Inputs: 1

• Analog Outputs: 1

• Relay Outputs: 1

• Overload Capacity: 150% for 60 seconds

• Operating Temp: -10°C to +40°C (without derating)

• Dimensions (H x W x D): 142 mm x 70 mm x 151 mm

• Weight: 0.9 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• OEM equipment

• Small fans and pumps

• Conveyors and mixers

• Laboratory and workshop tools

Product Description

The ABB ACS150-03E-01A9-4 provides dependable and efficient motor control in a compact package. Designed for light-duty applications, it includes key features for easy setup and performance, delivering ABB's trusted quality in a small footprint.

Why Choose ABB ACS150-03E-01A9-4?

• All-in-one compact VFD with built-in features

• Easy-to-use interface with integrated keypad

• Fast and flexible installation

• Proven ABB reliability for OEMs and small systems

Order Now

Available for immediate global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
