ABB 5SGS12F2500

ABB 5SGS12F2500

Overview

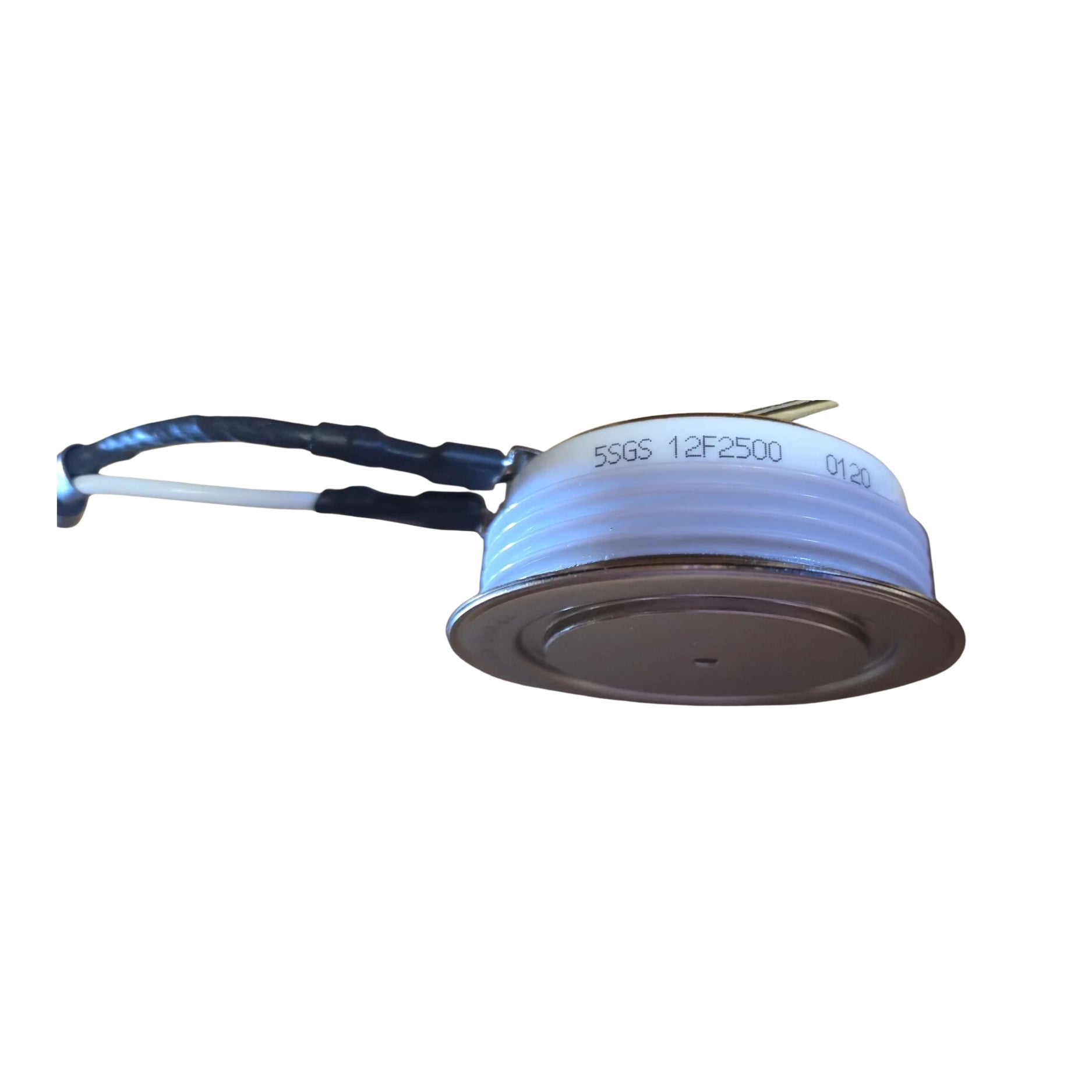

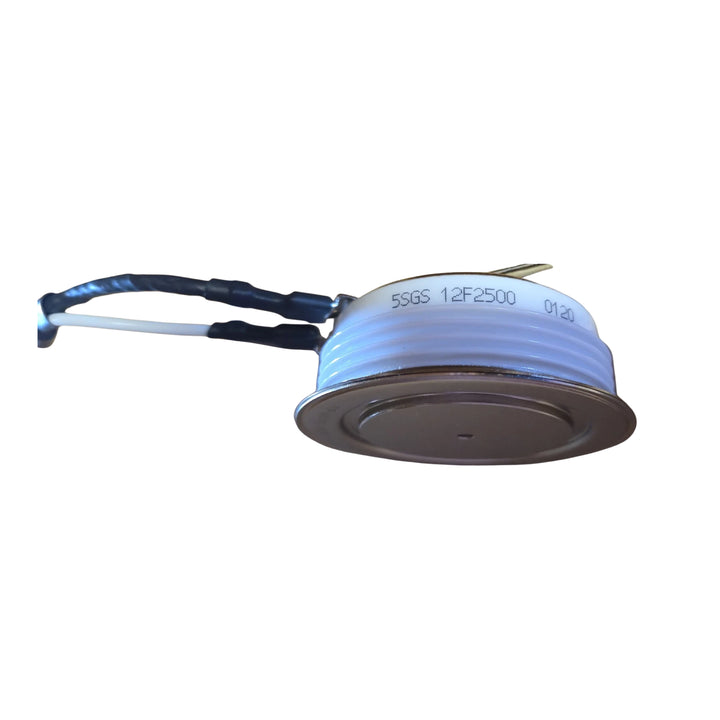

The ABB 5SGS12F2500 is a symmetric thyristor rated at 2500 A and 2500 V, engineered for high-power industrial applications. It delivers consistent performance in both directions of current flow, making it ideal for applications like AC control, cycloconverters, and phase-controlled rectifiers. This device is built with ABB’s proven technology to ensure low conduction losses, robust thermal handling, and long service life.

Key Features

• Rated voltage: 2500 V

• RMS current rating: 2500 A

• Symmetric blocking design (bi-directional)

• High surge current capability

• Low conduction and switching losses

• Rugged housing for industrial use

• Designed for long-term operation

Technical Specifications

• Product ID: 5SGS12F2500

• Type: Symmetric Thyristor

• VDRM/VRRM: 2500 V

• IT(AV): 2500 A

• Thyristor Type: Symmetrical (bi-directional blocking)

• Surge Current: High capability

• Mounting: Press-pack or chassis mount

• Cooling: Typically air or liquid cooled depending on application

• Package: Industry-standard round outline

Applications

• Cycloconverters

• AC and DC motor drives

• Induction heating systems

• Static VAR compensators

• High-voltage power control

• Power factor correction systems

Why Choose the 5SGS12F2500

• Handles high current and voltage with symmetric control

• Reliable ABB design for industrial-grade power electronics

• Long lifespan in high-stress applications

• Easy integration into high-voltage converter systems

Order Now

The ABB 5SGS12F2500 symmetric thyristor is available and ready for international delivery.

Return to ABB Symmetric GTO Thyristors — View our complete selection of ABB symmetric GTO thyristors.

Return to ABB GTO Thyristors – Symmetric, Fast & Asymmetric Models — Explore the full ABB GTO lineup, featuring symmetric, fast, and asymmetric models.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
