ABB 5SGF40L4502

ABB 5SGF40L4502

Overview

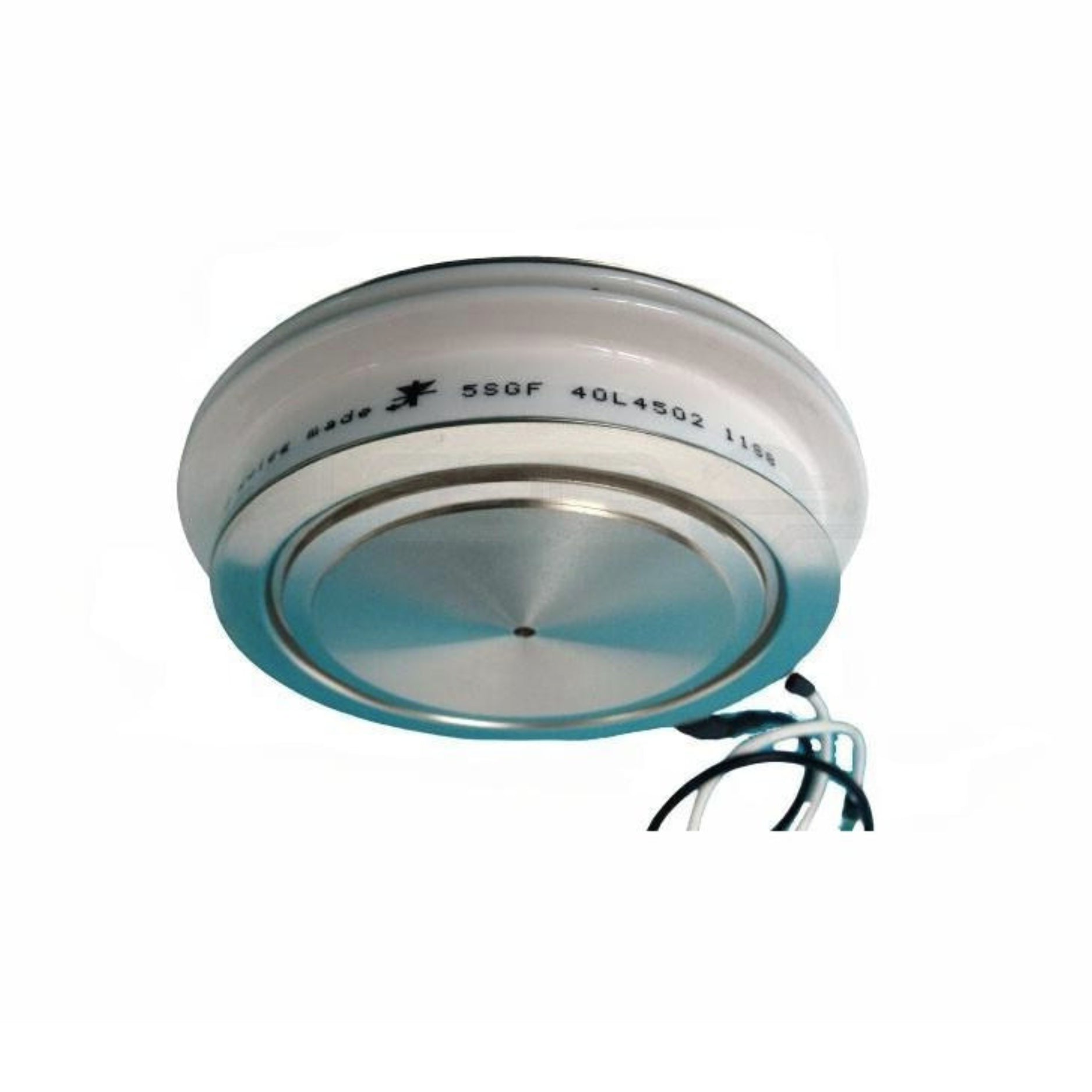

The ABB 5SGF40L4502 is a high-performance asymmetric Gate Turn-Off (GTO) thyristor designed for demanding high-power applications. With a current rating of 4000 A and a blocking voltage of 4500 V, this device utilizes ABB’s patented free-floating silicon technology to deliver low switching and conduction losses. It features an annular gate electrode and is housed in a robust round package, ideal for use in traction, HVDC, and industrial power systems.

Key Features

• Rated current: 4000 A

• Blocking voltage: 4500 V

• Annular gate electrode for efficient current control

• Free-floating silicon for improved thermal behavior

• Low switching and conduction losses

• Radiation-resistant structure

• Industry-standard round GTO housing

• High mounting force of 40 kN for secure installation

Technical Specifications

• Product ID: 5SGF40L4502

• Type: Asymmetric Gate Turn-Off Thyristor (GTO)

• ITGQM: 4000 A

• VDRM: 4500 V

• Mounting Force: 40 kN

• Gate Structure: Annular electrode

• Housing Type: Industry-standard round

• Silicon Design: Free-floating chip

• Losses: Low on-state and switching

• Radiation Resistance: Yes (cosmic radiation rated)

Applications

• Railway traction drives

• HVDC transmission systems

• High-voltage static converters

• Industrial inverter systems

• Energy control and storage modules

Why Choose the 5SGF40L4502

• High current and voltage capacity for critical applications

• Enhanced thermal and electrical performance

• Built for harsh industrial and power grid environments

• Reliable, long-term ABB design

• Compatibility with standard GTO system layouts

Order Now

The ABB 5SGF40L4502 GTO thyristor is ideal for high-reliability power switching and conversion. Ships worldwide.
